52V 30Ah Fuel Tank eBike Li-ion Battery Pack for up to 3500W Motors

Elemex 52V Fuel Tank eBike Battery Suitable for up to 3500W Motors

Genuine LG Cells

+1 Year Warranty

*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS LATE-SEPTEMBER-2025.***

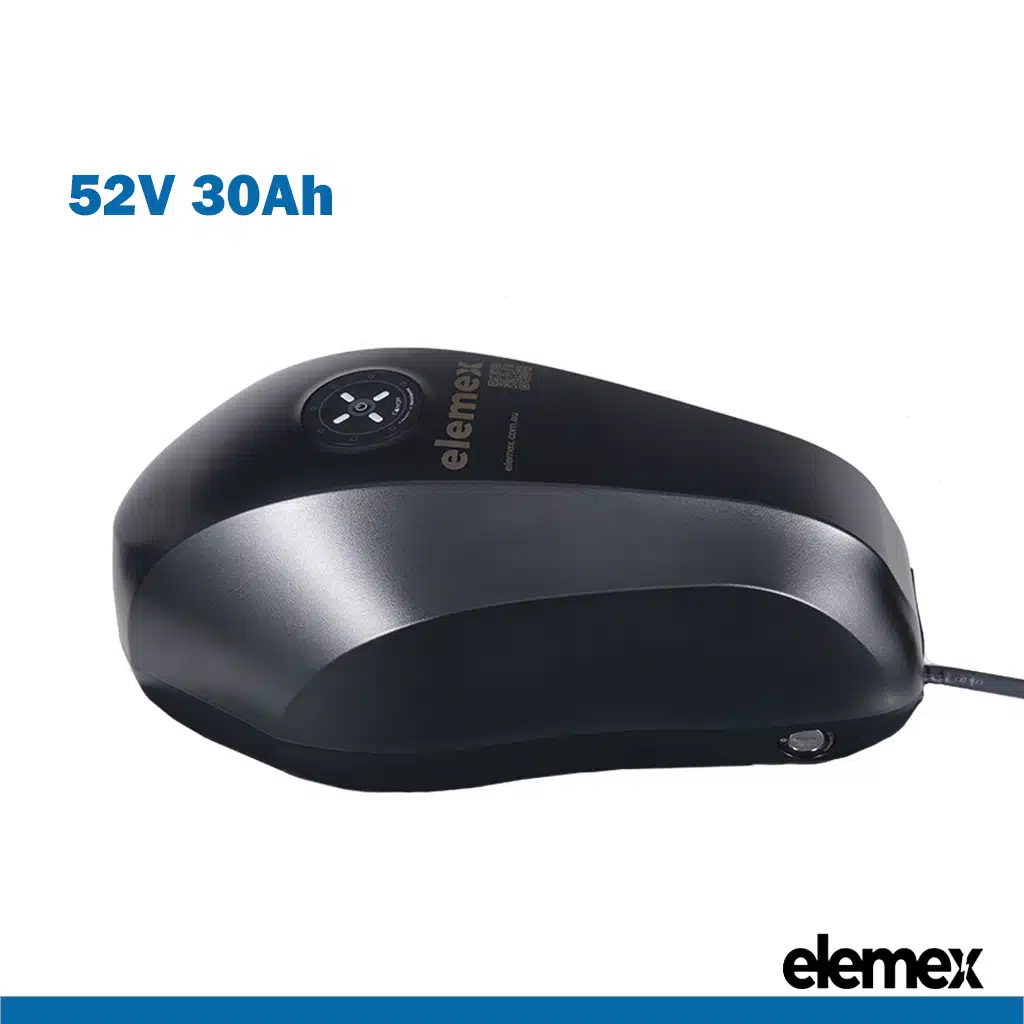

52V 30Ah Fuel Tank eBike Lithium Battery Pack

Product Features:

• Brand: Elemex
• Cell Type: 21700 4800mAh Lithium-ion
• Cell Brand: LG (Genuine) – LG 84A Cell
• Nominal Voltage: 52V
• Array Mode: 14s6p
• Max Constant Discharge Current: 60A
• Max Continuous Charge Current: 7A
• Peak Discharge Current: 150A
• Way of Charge: CC/CV
• Rated Capacity: 28.8Ah
• Charge Cut-off Voltage: 58.8V
• Discharge Cut-off Voltage: 39.2V ~ 42V
• Energy: 1492 Wh
• Charge/Discharge Temperature: -15°C ~ 55°C
• BMS: 50A
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging Time: Approx. 5 to 10 hours

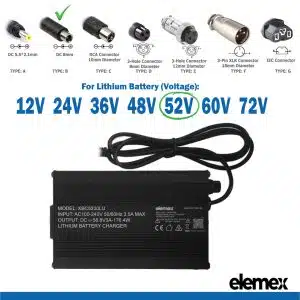

• Charging Compatibility: Elemex-approved Chargers
• Output Connector: XT90
• Housing Material: ABS Plastic
• Case Colour: Black
• Cycle Life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)
• Weight: 8kg~
• Dimensions: Approx. 381mm x 167mm x 183mm~
• Warranty: 1 Year

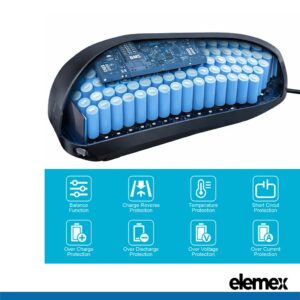

BMS Protection:

This 52V Fuel Tank eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

• Ensure that voltages are paired correctly. For example, a 52V motor must be paired with a 52V battery. Controllers burnt out due to reprogramming or incompatible pairing are not covered by the warranty.
• Check the dimensions of this item before placing your order.
• If unsure which battery to pair with your bike, contact us for more information.

• 1x Elemex 52V 30Ah Fuel Tank eBike Lithium Battery Pack (Genuine LG Cells)
• 1x Adaptertr Cable (XT90 Male) to (XT60 Female)
• 1x User Manual
• 1x Warranty Certificate

Additional Information:

NSW Safety Information (Required by Law)

This product complies with the NSW Information Standard for e-micromobility vehicles, effective 1 August 2025.

Usage Laws:

• Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes, and bicycle paths.

Serial Number:

• Each battery includes a unique serial number printed on the product for traceability. Serial numbers are recorded and assigned to each buyer upon shipment.

Electrical and Fire Safety:

• Only use compatible batteries and chargers supplied or certified by Elemex.

• Ensure batteries and chargers used are compatible with this vehicle.

• Charge only in a dry, well-ventilated area, away from flammable materials.

• Do not leave the battery charging unattended or overnight.

• Avoid high-risk charging practices, including charging on flammable surfaces, using uncertified chargers, or charging damaged/swollen batteries.

• Modifying the vehicle or battery may cause fire.

• Warning signs: smoke, sparks, unusual heat, or swelling.

• If battery starts smoking or sparking, call 000 immediately.

User Responsibility & Charger Warning:

• Users must read and understand the Elemex Battery User Manual before use or charging.

• Lithium batteries must only be charged with Elemex-authorised, certified Li-ion chargers.

• Using aftermarket or uncertified chargers may cause performance issues, reduce battery life, or create safety risks.

• Use of uncertified chargers voids the warranty; any resulting damage is the user’s responsibility.

Safe Storage:

• Store in a cool, dry place (15°C – 25°C).

• Do not expose to prolonged heat or water.

• Keep out of reach of children.

Disposal:

• If battery is detachable, separate it safely and dispose of according to local recycling laws.

• If not detachable, follow local laws for vehicle disposal.

• Do not dispose of batteries or vehicles in household bins.

Additional Safety:

• Do not use the vehicle if it contains a damaged battery.

Emergency Instructions:

• If battery emits smoke or fire, move it outdoors if safe.

• Use a Class D fire extinguisher or sand.

• Do not use water on lithium battery fires.
