Elemex 2000W Rear Hub eBike Conversion Kit with Lithium Battery

Elemex Rear Hub Electric Bike Conversion Kit 2000W + eBike Battery + Charger

+1 Year Warranty on All Parts

*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS MID-APRIL-2025.***Rear Hub 2000W eBike Conversion Kit + eBike Battery & Charger

Product Overview:

Note: This kit is built for off-road adventures only. Be sure to check local laws to ensure it’s right for you. For a safe first ride, DIYers should get a final check from a licensed installer before hitting the road.

Attention: The buyer is solely responsible for ensuring the safe installation, use, and compliance with local laws and regulations for this product. To comply with Australian public road regulations, see the Speed Limiting Instructions section below.

Product Care: All joints of the kit are waterproof to ensure durability and reliability in various weather conditions. However, the connector that connects to the hub motor is not waterproof and should not be immersed in water. It must be protected from water exposure during use to prevent damage.

• Brand: Elemex
• Hub Motor Type: Brushless Direct Drive (Gearless)
• Controller Type: Brushless Motor Controller Pure Sinewave 60A (with XT60 Power Connector)
• LCD Display: 4″ M808X 300mm Length, NFC
• Rim: Aluminium Alloy double wall Durable 33mm internal rim width (Best suited for 2.35″ to 2.5″ wide tyres)
• pedal assist crank sensor (PAS)
• Throttle Type: Throttle full twist (right hand) and matching left hand handlebar grip
• Brake: Aluminium Alloy eBrake Lever  (R-L) for V/Disc
• Wiring Type: Integrated Waterproof Cable
• Cable Length: 1230mm
• Wheel Size: 26, 27.5, 29″ (Optional)
• Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
• Drop Out: 135mm-142mm
• Max Torque: 100Nm
• Rated Power: 2000W
• Rated Speed: 75km/h
• Max Speed: 85km/h
• Spokes: 36H-12G
• Weight: 11kg
• Wheel Axle: M14*10/210mm
• Load Capacity: 150 kg (including the total weight of the bike and rider)
• Certification: CE, EN15194, RoHS
• Warranty: 1 Year on all parts

Battery Specifications:

• Brand: Elemex
• Cell Type: 21700 4800mAh Lithium-ion
• Cell Brand: LG (Genuine) – LG M48A Cell
• Nominal Voltage: 48V/52V/60V
• Way of Charge: CC/CV
• Charge/Discharge Temperature: -15°C ~ 55°C
• BMS: Yes
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging Time: Approx. 5 to 10 hours
• Cycle Life: 1100 times
• Safety Certificates: CE, ROHS, MSDS, UN38.3
• Warranty: 1 Year

Speed Range (Approximately):

• With 48V Battery: up to  65km/h
• With 52V Batterey: up to 75km/h
• With 60V Battery: up to 80km/h

Dimensions (Model):

Triangle (48V 20Ah, 52V 20Ah, 52V 30Ah, 60V 20Ah): Approx. 400mm x 350mm x 230mm~
Fuel Tank: (52V 30Ah & 60V 20Ah): Approx. 381mm x 167mm x 183mm~
Downtube (48V 20Ah): Approx. 360mm x 90mm x 100mm~

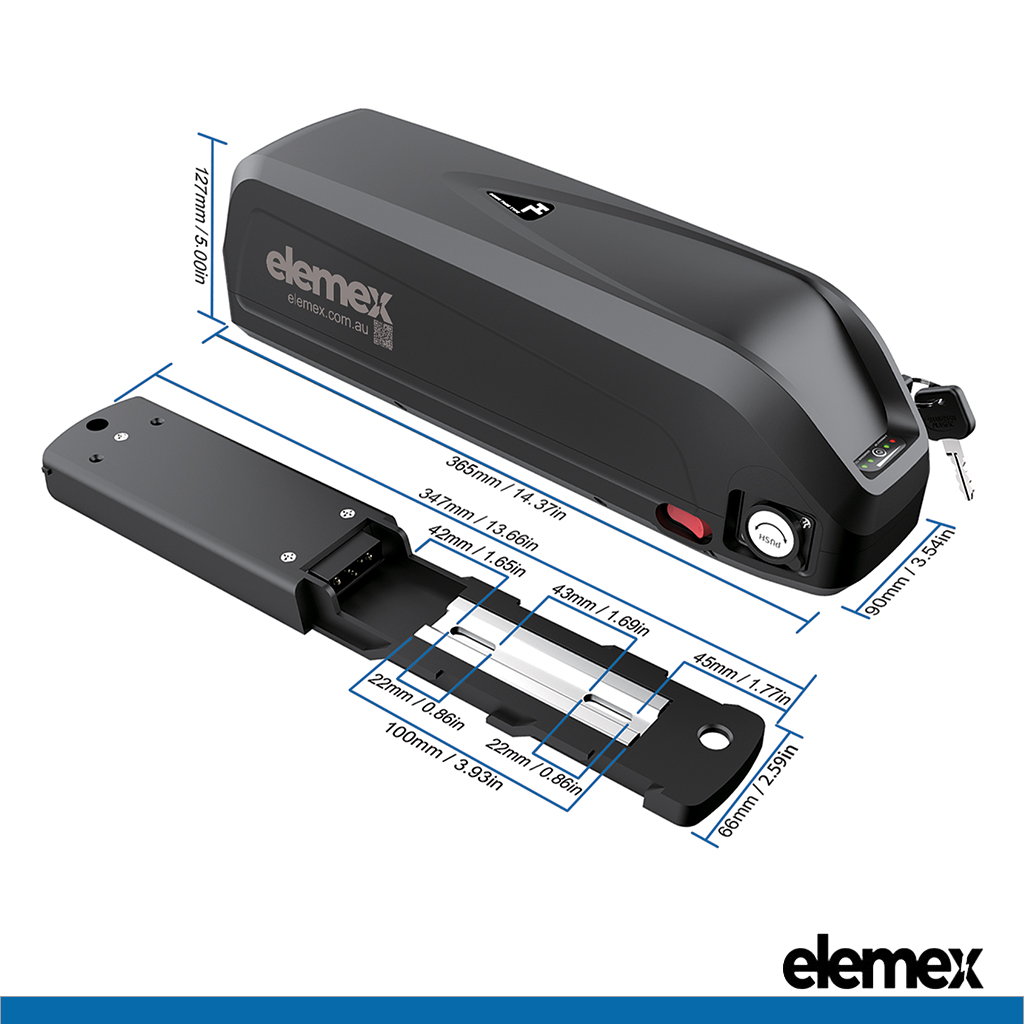

Downtube (52V 20Ah): Approx. 360mm x 90mm x 127mm~
Rectangle (48V 20Ah): Approx. 305mm x 75mm x 100mm~
Rectangle (52V 20Ah): Approx. 330mm x 105mm x 75mm~
Rectangle (60V 24Ah): Approx. 475mm x 100mm x 75mm~

FYI:

The speed values mentioned for this kit with different battery options are approximate and not definitive. Actual speed may vary based on rider weight, bike frame, terrain, tyre presure, wind resistance, and other external factors.

Note:

The included charger in this conversion kit is tailored to the specific battery model you select. Each charger is optimised to provide the best charging performance for the corresponding battery type (e.g., Triangle, Downtube, Rectangle). This ensures safe and efficient charging, maintaining the battery’s longevity and performance.

If you have any questions or require assistance in choosing the right battery and charger combination, feel free to contact our support team.

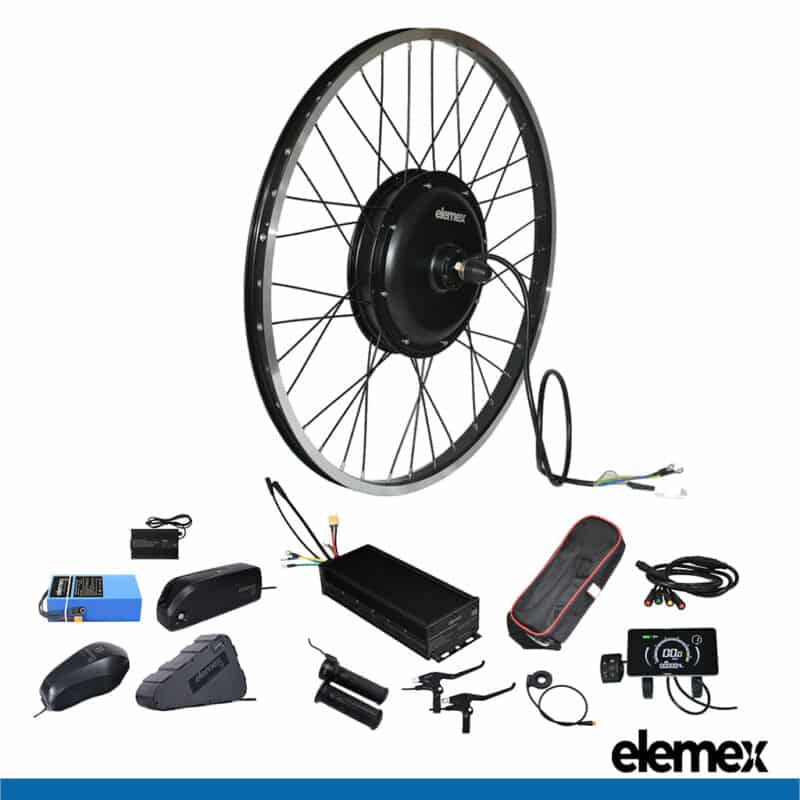

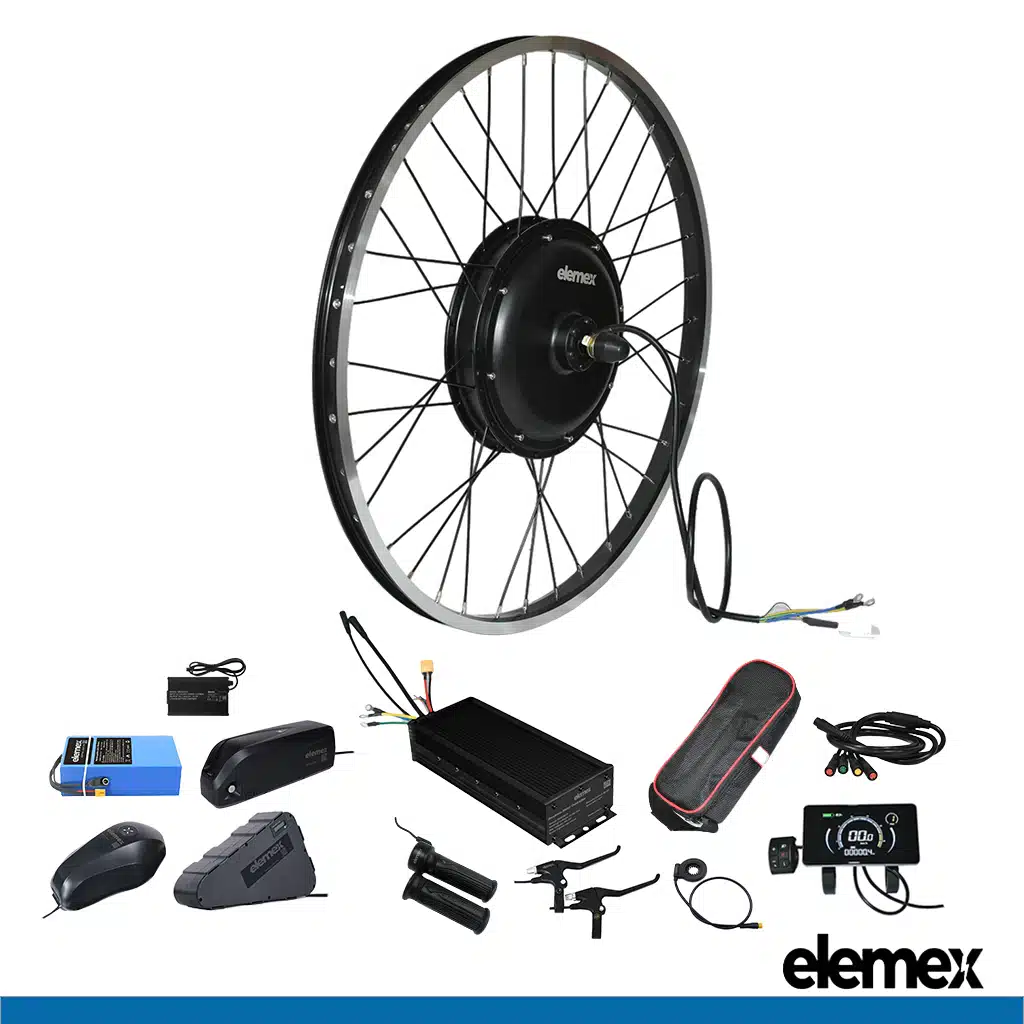

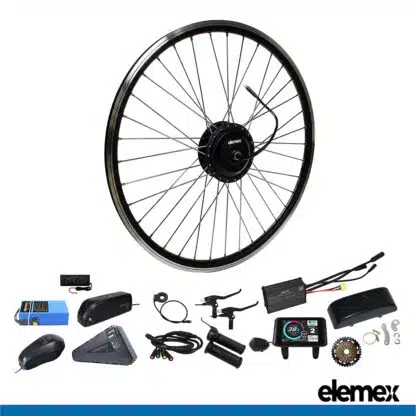

Package Includes:

• 1x Elemex Premium Battery [Please Select your Model and Voltage]
• 1x Elemex Premium Charger
• 1x 2000W 60A Hub Motor Wheel (Optional Size) [Please Select Your Rim Size]
• 1x Controller
• 1x Controller Bag
• 1x Colour LCD Display
• 1x Pedal Assist Crank Sensor (PAS)
• 1x Throttle full twist (right hand) and matching left hand handlebar grip
• 1x Shimano TZ500 7 Speed Freewheel
• 1x Cable Tie set
• 1x Pair of Brake Levers (suited for mechanical/cable brakes)
• 1 Year Warranty on all parts

Safety Accessories:

For safety and durability during high-torque operation, it is highly recommended to install torque arms on both sides of the bike. These prevent axle spinning inside the dropouts, which could damage the motor wiring. Torque arms are sold separately.

Speed Limiting Instructions:

To comply with Australian regulations requiring a maximum of 250W continuous power and 25 km/h on public roads, you can limit the speed via the M808X Display:

1. Turn on the M808X display by pressing the power button.
2. Access the settings menu by holding the “UP” and “DOWN” arrows simultaneously for 2 seconds.
3. Navigate to the speed limit setting and set it to 25 km/h.
4. Save the settings and exit the menu.

This ensures legal compliance when using the kit in public areas.

-Do eBikes have regenerative brakes?

Regenerative braking isn’t just about slowing down an electric bike; it’s a smart system that transforms kinetic energy into electrical energy during braking, recharging the battery in the process. This feature enhances an e-bike’s range and promotes a more eco-friendly ride.

Transform your bike, transform your journey – with our 2000W eBike Conversion Kit with Battery and Charger, enjoy effortless rides, extended distances, and the freedom to explore without limits!
