72V Battery eBike 20Ah Triangle Lithium Pack
Scooter Buggy Mobility + 4Ah Fast Charger
Elemex 72V Triangle eBike Battery is suitable for up to 3500W Motors
Genuine LG Cells
+1 Year Warranty
*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS MID-JUN-2025.***

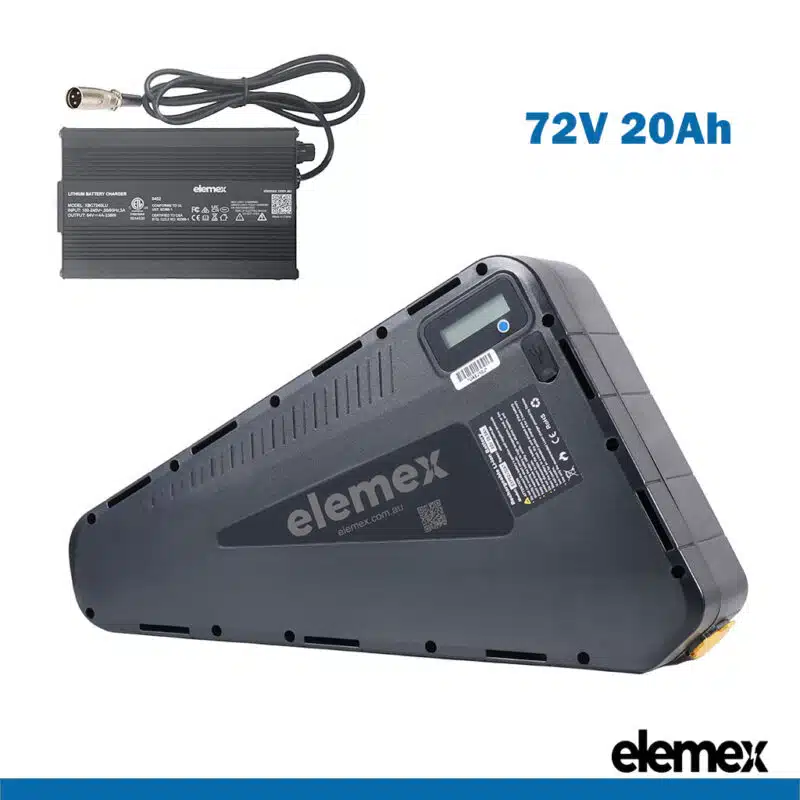

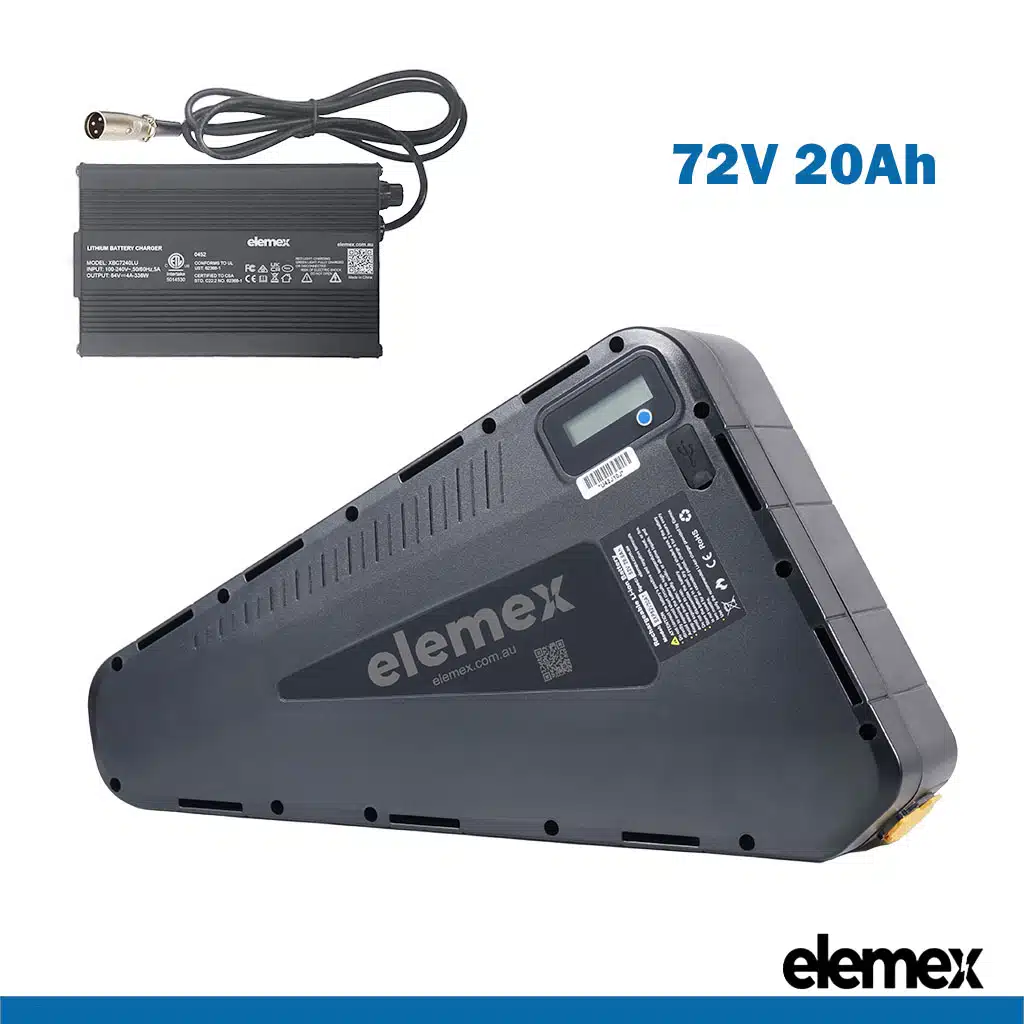

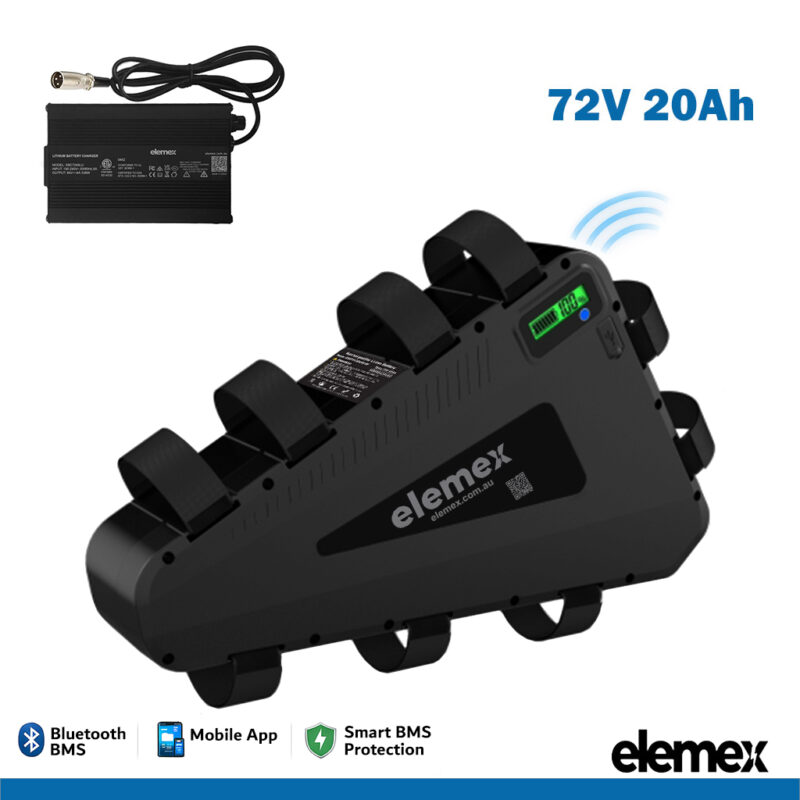

Triangle 72V Battery eBike 20Ah Lithium Pack
Product Overview:
The Elemex 72V 20Ah Triangle eBike Battery features a waterproof design with high-quality sealing technology, protecting against rain, splashes, and dust for all-weather reliability. Engineered with genuine LG cells, this lithium pack ensures optimal performance, longevity, and consistent power for motors up to 3500W. It includes a premium charger, making it a dependable choice for high-performance eBikes.
Battery Specifications:- Brand: Elemex
- Cell Type: 21700 4800mAh Lithium-ion
- Cell Brand: LG (Genuine) – LG M48A Cell
- Nominal Voltage: 72V
- Array Mode: 20s4p
- Max Constant Discharge Current: 60A
- Max Continuous Charge Current: 4A
- Peak Discharge Current: 180A (3-5 Seconds)
- Way of charge: CC/CV
- Rated Capacity: 19.2Ah
- Charge Cut off Voltage: 84V
- Discharge Cut off Voltage: 56V ~ 58V
- Energy: 1421 Wh
- Charge/Discharge Temperature: -15 ~ 55 C
- Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
- BMS: 60A
- Charging time: Approx. 5 to 10 hours
- Charger Compatibility: Elemex-approved chargers
- Output Connector: XT90 Female
- Housing material: ABS Plastic
- Compatible Brand: Elemex Conversion Kits, Universal
- Cycle life: 1100 times
- Weight: 9kg~
- Dimensions: Approx. 350mm x 400mm x 240mm~ – (Thickness: 80mm~)
- Warranty: 1 Year
BMS Protection for 72V Triangle eBike Lithium Battery Pack
- Brand: Elemex
- Input: AC 100-240V∼ 50/60Hz
- Output: DC 84V 4.0A (336 W)
- Connector Type: 3 Pin XLR Male (18mm)
- Compatible Battery: 72V Lithium Li-ion
- Certifications: SAA, GMA, CE, ETV
- Warranty: 1 Year
72V 4Ah Battery Charger
- Ensure voltage pairing: A 72V motor must be paired with a 72V eBike battery.
- Controllers burnt out due to reprogramming or incompatible pairing are not covered by the warranty.
- For dual suspension bikes or limited frame space, consider using two smaller capacity batteries.
- Check dimensions before ordering.
- If uncertain about compatibility, contact us for assistance.
- 1x Elemex 72V 20Ah Triangle eBike Lithium Battery Pack (Genuine LG Cells)
- 1x Elemex 84V 4Ah Premium Lithium Battery Charger
- 1x Adapter Cable (XT90 Male) to (XT60 Female)
- 1x Premium Tear resistant velcro set (Straps)
- 1x User Manual
- 1x Warranty Certificate
Lithium batteries must only be charged with Elemex-authorised, certified, and standard Li-ion chargers.
Using aftermarket or uncertified chargers may lead to performance issues, reduced battery life, or potential safety risks such as overheating or malfunction.
The use of uncertified chargers voids the warranty, and any resulting damage, faults, or failures will be the sole responsibility of the user.
