Solder Tabbed 18650 Sony VTC6 3000mAh Li-ion 3.7V Rechargeable Battery (Genuine)
High Current 18650 Sony VTC6 Cell – 25Ah Discharge Rate (Tabbed Version)

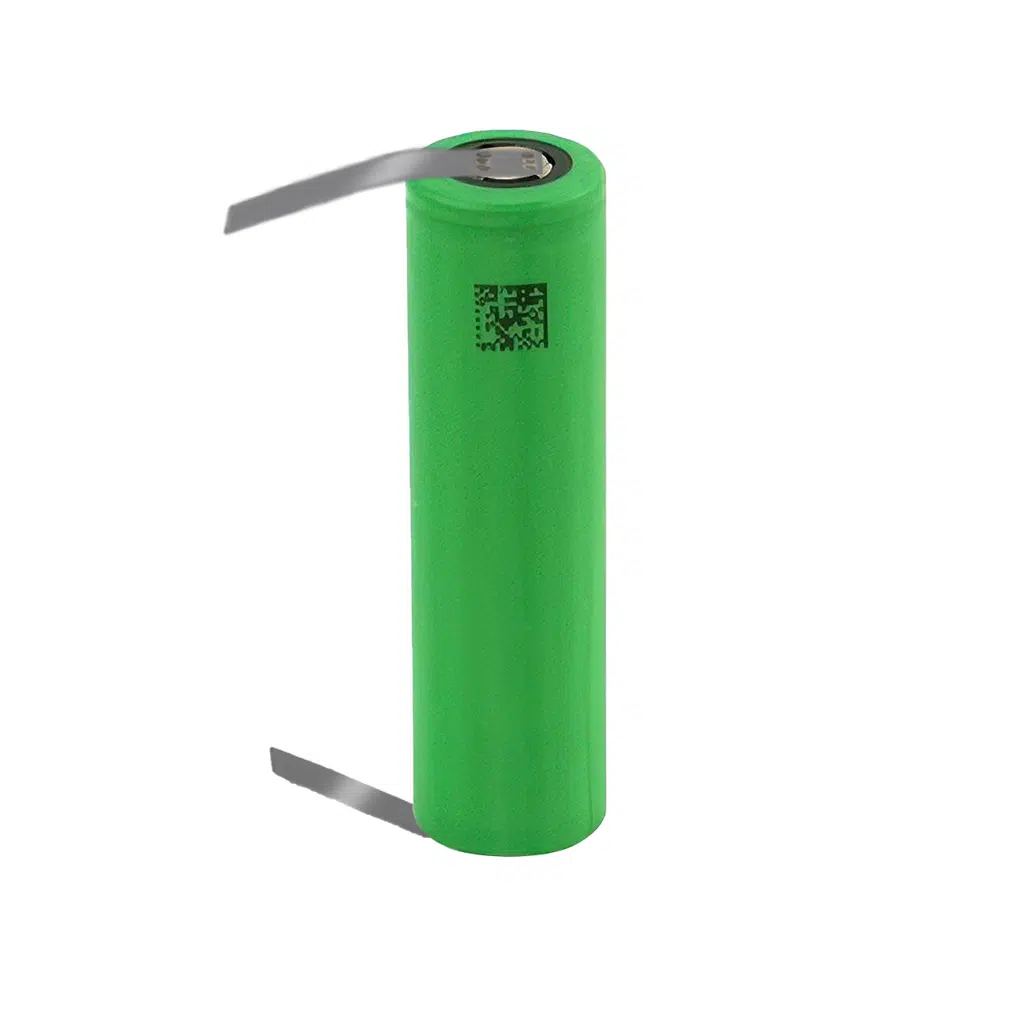

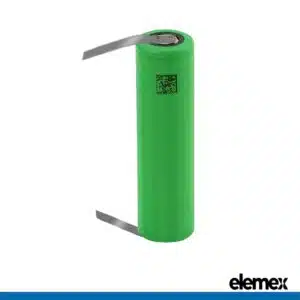

Solder Tabbbed 18650 Sony VTC6 3000mAh Battery (U-Type)

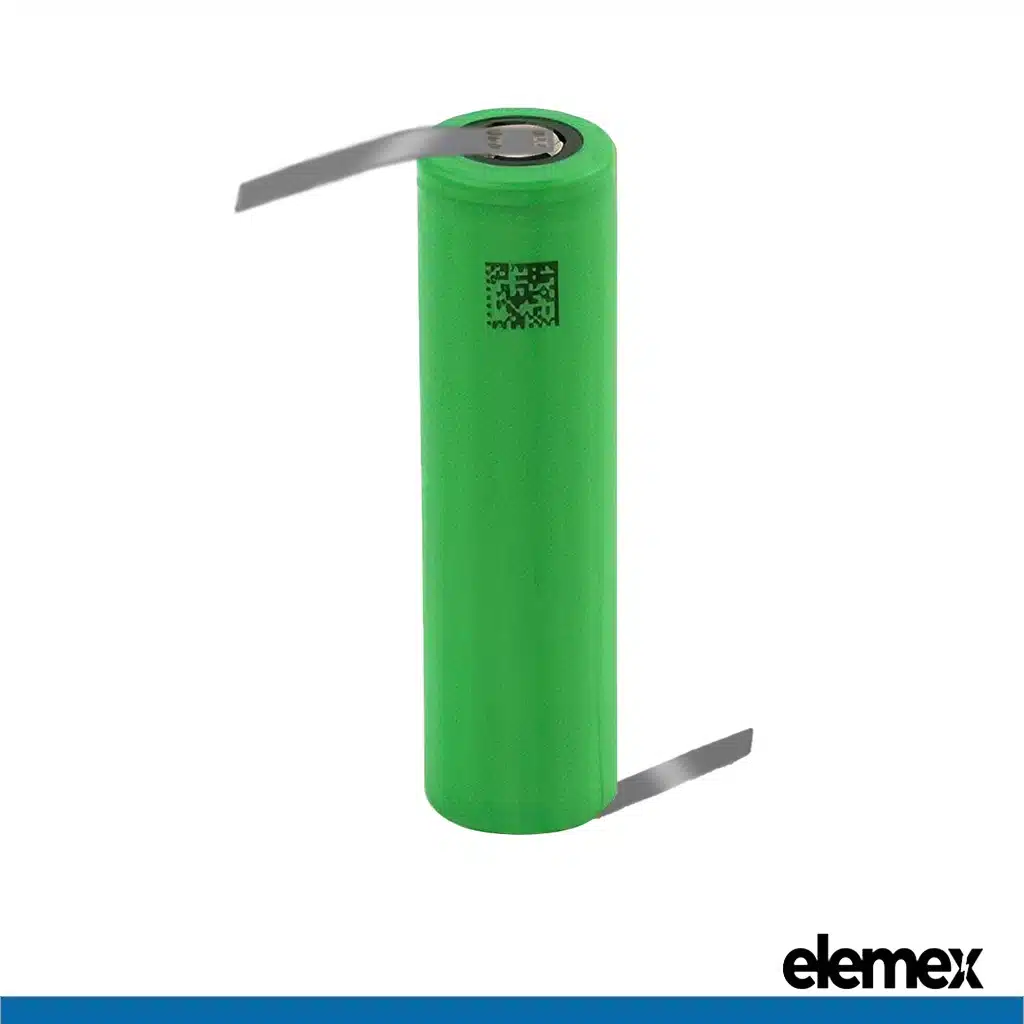

Solder Tabbbed 18650 Sony VTC6 3000mAh Battery (Z-Type)
Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.
Product Features:
- Capacity (Ah): 3.0 Ah Max (3120 mAh) Min (3000 mAh)
- Nominal Voltage (V): 3.6 ~ 3.7 V
- Standard Charging Voltage (V): CC/CV, 0.2C, 4.2V
- Charging Current (Ah): 5.0 Ah (5000 mAh) Max
- Cut-off Voltage (V): 2.0 V
- Energy (Wh): 10.8 Wh
- Internal Impedance: 7.9 milli-Ohms
- Max. Discharge rate (C): C Rating 8.5C (Recommended Max current 25 Amp)
- Max. Discharge Current vs. Time: 30A-40A > 44s, 55A > 19s, 80A > 6s (Never discharge above 80°C)
- Pulse current (Ah): (5-6 sec.): 80 Ah
- Operating temperature: Charging 0°C ~45°C, discharging: -20°C ~ 60°C
- Weight (g): 46.4 g (+/- 1.5 g)
- Diameter (mm): 18.0 mm (+/- 0.3 mm)
- Height (mm): 65.0 mm (+/- 0.5 mm)
- PCB: No
- Top (positive side): Flat Top
- Model: US 18650 VTC6 Tabbed Version
- Made in Japan
Package Includes:
- 1x Genuine Sony US 18650 VTC6 Li-ion 3000mAh Battery with Solder Tabs (U-Type OR Z-Type) [Please Select the Battery Type]
Warning:
- Never wholly discharge a Li-ion battery (below 2.5V under load).
- Charge fully to 4.2V before first use.
- Never use force to install (insert) a Li-ion battery.
- Do not use old and new battery cells together.
- Use only a high-quality battery charger.
- Do not remove the heat shrink/wrapping cover (it must be used as it is).
- Do not expose to heat, NOT penetrate or modify.
- Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
- Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
- Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
- Do not charge unattended nor overcharge unprotected cells.
