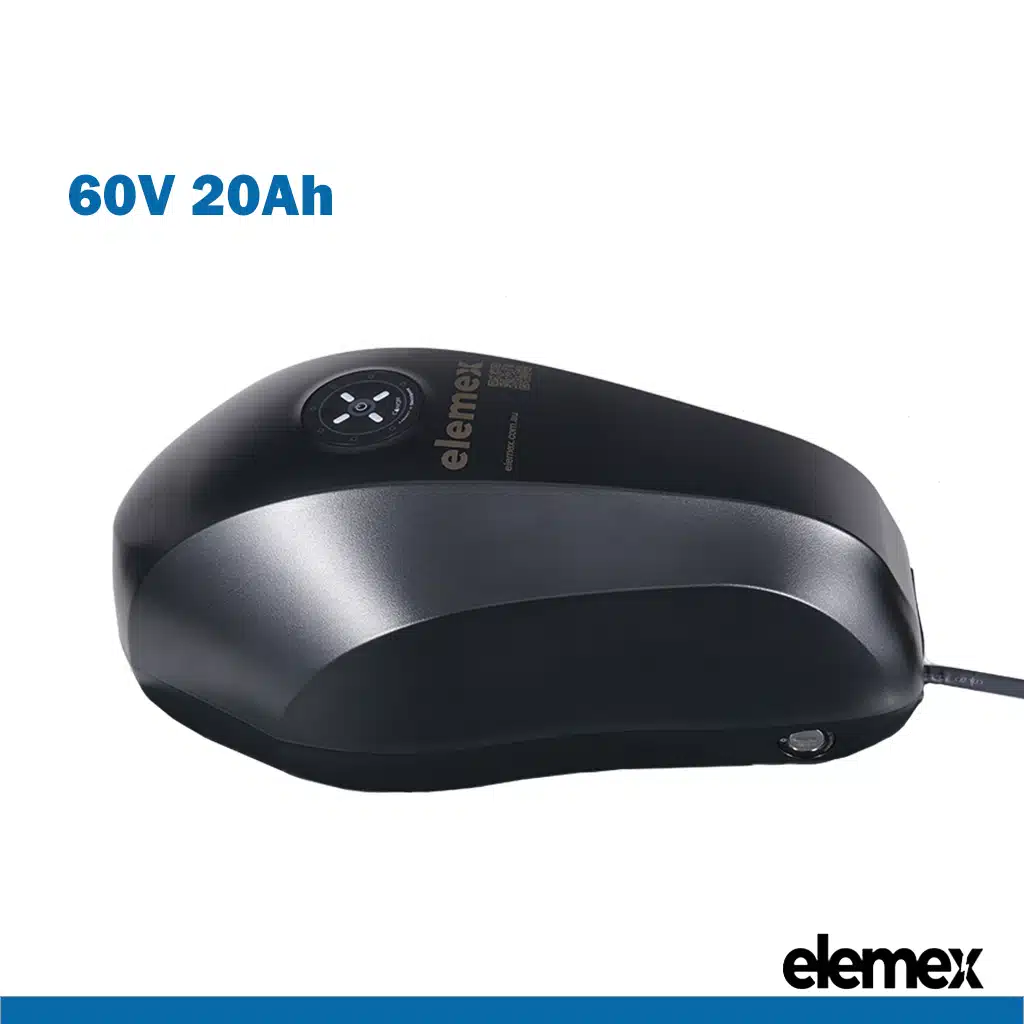

Electric Bike Battery Fuel Tank 60V 20Ah Lithium Pack
Elemex 60V 20Ah Fuel Tank eBike Battery is suitable for up to 3000W Motors
Genuine LG Cells
+1 Year Warranty
*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS LATE-JUN-2025.***
Fuel Tank 60V Battery 20Ah Lithium Pack
- Brand: Elemex
- Cell Type: 21700 4800mAh Lithium-ion
- Cell Brand: LG (Genuine) – LG M48A Cell
- Nominal Voltage: 60V
- Array Mode: 16s4p
- Max Constant Discharge Current: 50A
- Max Continuous Charge Current: 4A
- Peak Discharge Current: 150A (3-5 Seconds)
- Way of charge: CC/CV
- Rated Capacity: 19.2Ah
- Charge Cut off Voltage: 67.2V
- Discharge Cut off Voltage: 48V ~ 51.2V
- Energy: 1137 Wh
- Charge/Discharge Temperature: -15 ~ 55 C
- Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
- Charging time: Approx. 5 to 10 hours
- Charger Compatibility: Elemex-approved chargers
- BMS: 50A
- Output Connector: XT60 Male
- Housing material: ABS Plastic
- Case Colour: Black
- Cycle life: 1100 times
- Weight: 6.5kg~
- Dimensions: Approx. 381mm x 167mm x 183mm~
- Warranty: 1 Year
-
When purchasing an Elemex battery, always ensure that voltages are paired correctly (e.g., a 60V motor must be paired with a 60V battery). Any controllers that are burnt out due to reprogramming or incompatible pairing are not covered by warranty. Please check the dimensions of this item before placing your order. If you are unsure of which battery to pair with your bike, please do not hesitate to contact us for more information.
- 1x Elemex 60V 20Ah Fuel Tank eBike Lithium Battery Pack (Genuine LG Cells)
- 1x Adapter Cable XT60 (Male)
- 1x User Manual
- 1x Warranty Certificate
⚠️ Warning
Users are solely responsible for reading and understanding the Elemex Battery User Manual before use or charging to ensure safe operation.
Lithium batteries must only be charged with Elemex-authorised, certified, and standard Li-ion chargers.
Using aftermarket or uncertified chargers may lead to performance issues, reduced battery life, or potential safety risks such as overheating or malfunction.
The use of uncertified chargers voids the warranty, and any resulting damage, faults, or failures will be the sole responsibility of the user.
