Elemex 250W Rear Hub eBike Conversion Kit 26″ 27.5″ 29″ Rim

Elemex Rear Hub Electric Bike Conversion Kit

+1 Year Warranty on All Parts

26″ AND 29″ IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS MID-APRIL-2025.***

eBike Hub Motor Conversion Kit 250W

Product Overview:

• Brand: Elemex
• Hub Motor Type: Brushless Direct Drive (Geared)
• Controller Type: Brushless Motor Controller Pure Sinewave 15A (with XT60 Power Connector)
• LCD Display: Colour 4″ M808X 300mm Length, NFC/ UKC1 111mm Length (Optional)
• Rim: Aluminium Alloy double wall extra strong 33mm internal rim width (Best suited for 2.35″ to 2.5″ wide tyres)
• Sensor: Pedal assist crank sensor (PAS)
• Throttle Type: Throttle full twist (right hand) and matching left hand handlebar grip
• Brake: Aluminium Alloy eBrake Lever (R-L) for V/Disc
• Wiring Type: Integrated Waterproof Cable
• Cable Length: 1230mm
• Wheel Size: 26″, 27.5″, 29″ (Optional)
• Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
• Drop Out: 135mm
• Max Torque: 38Nm
• Power: 250W
• Rated Speed: 30km
• Maximum Speed: 33km
• Spokes: 36H-12G
• Weight: 5kg
• Wheel Axle: M12*10/205mm
• Load Capacity: 150 kg (including the total weight of the bike and rider)
• Certification: CE, EN15194, RoHS
• Warranty: 1 year on all parts

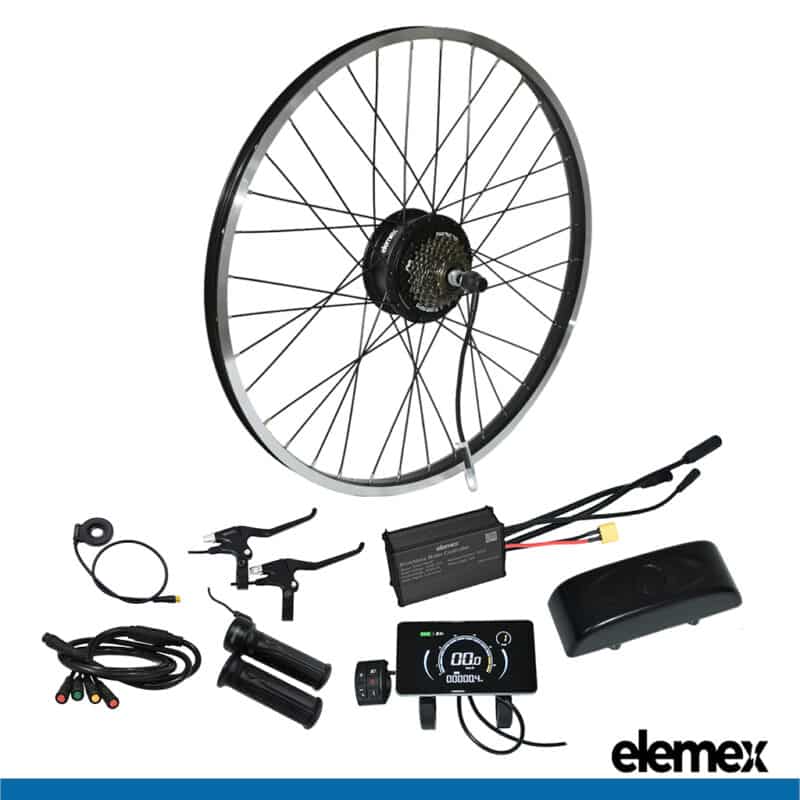

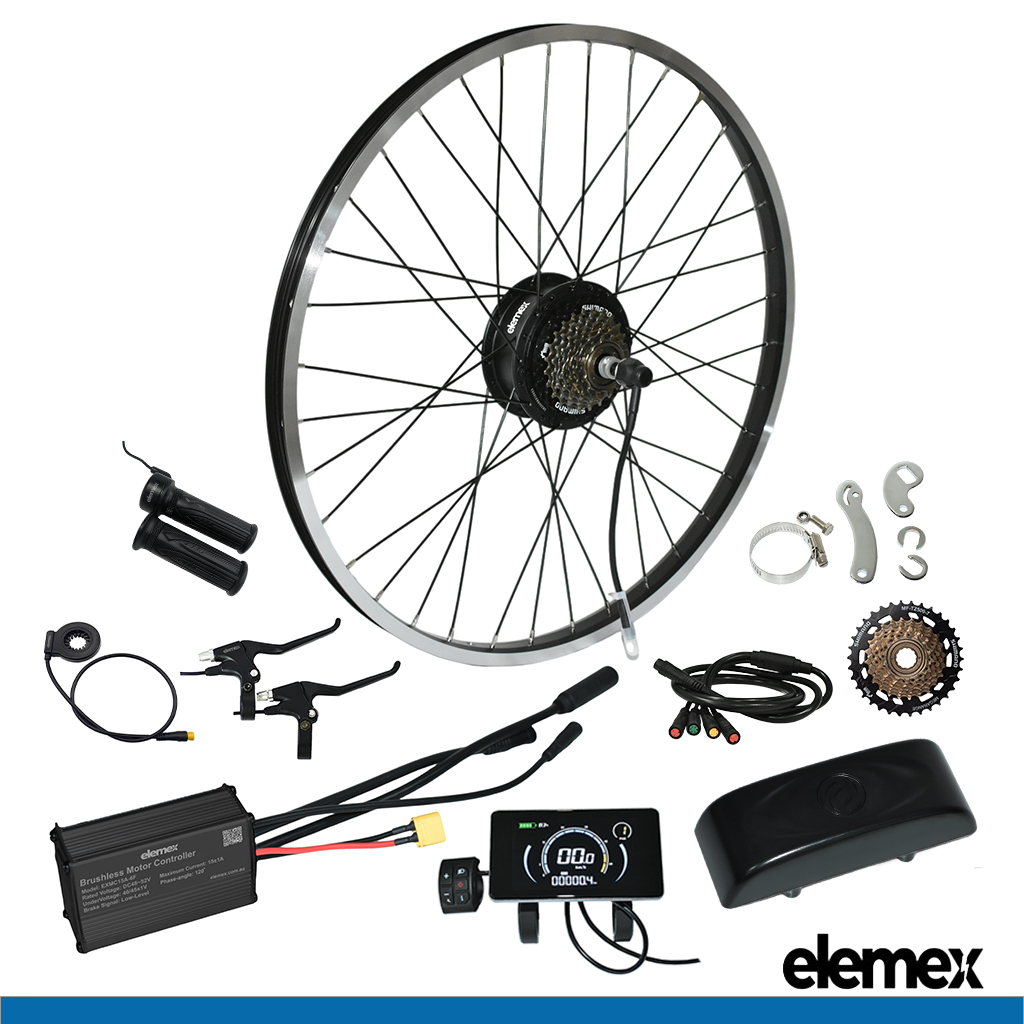

Package Includes:

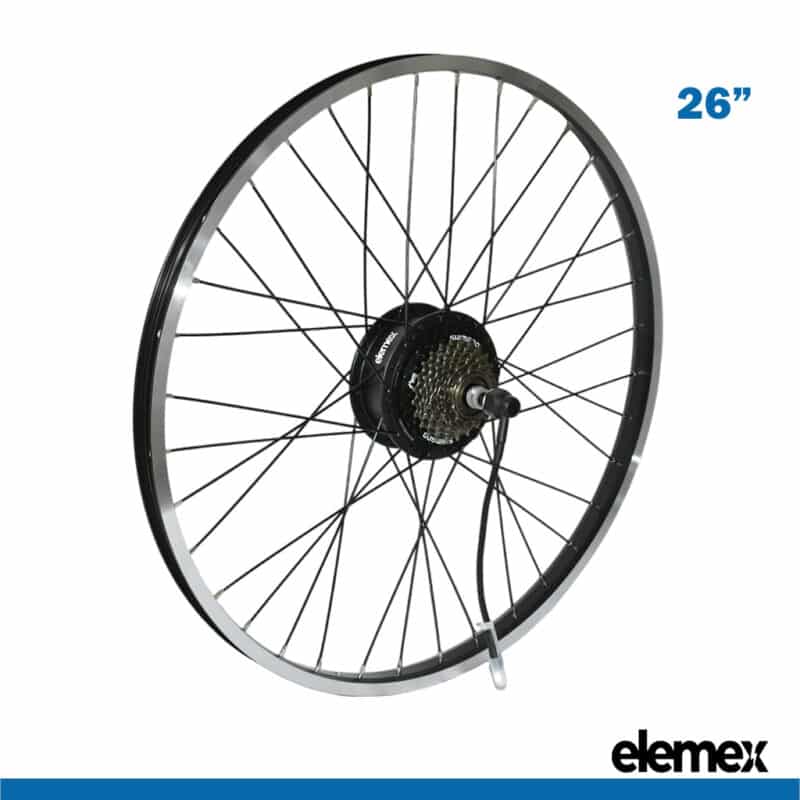

• 1 x 250W eBike Hub Motor Wheel (Optional Size) [Please Select Your Rim Size]
• 1 x Controller
• 1 x Controller Case
• 1 x Colour LCD Display (Optional) [Please Select Your Display]
• 1 x Pedal Assist Crank Sensor (PAS)
• 1 x Throttle full twist (right hand) and matching left hand handlebar grip
• 1x Shimano TZ500 7 Speed Freewheel
• 1 x Cable Tie set
• 1 x Pair of Brake Levers (suited for mechanical/cable brakes)

Safety Accessories:

For safety and durability during high-torque operation, it is highly recommended to install torque arms on both sides of the bike. These prevent axle spinning inside the dropouts, which could damage the motor wiring. Torque arms are sold separately.

Speed Limiting Instructions:

To comply with Australian regulations requiring a maximum of 250W continuous power and 25 km/h on public roads, you can limit the speed via the Display:

M808X Display:

1. Turn on the M808X display by pressing the power button.
2. Access the settings menu by holding the “UP” and “DOWN” arrows simultaneously for 2 seconds.
3. Navigate to the speed limit setting and set it to 25 km/h.
4. Save the settings and exit the menu.

UKC1 Display:

1. Turn on the Display – Press and hold the Power button to turn on the UKC1 display.
2. Enter the Settings Menu – Press and hold the “+” and “-” buttons together for a few seconds.
3. Access Speed Limit – Navigate through the menu using the “+” and “-” buttons until you find the Speed Limit option.
4. Set the Speed Limit – Use the “+” or “-” buttons to adjust the speed limit to 25km/h.
5. Save and Exit – Press and hold the Power button to save and exit the settings.

This ensures legal compliance when using the kit in public areas.

-Do eBikes have regenerative brakes?

Regenerative braking isn’t just about slowing down an electric bike; it’s a smart system that transforms kinetic energy into electrical energy during braking, recharging the battery in the process. This feature enhances an e-bike’s range and promotes a more eco-friendly ride.

Transform your bike, transform your journey – with our 250W hub motor eBike Kits, enjoy effortless rides, extended distances, and the freedom to explore without limits!
