750W eBike Kit Elemex Rear Hub Motor 750W eBike Kit
Elemex Rear Hub eBike Conversion Kit 26″ 27.5″ 29″ Rim
+1 Year Warranty on All Parts
*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS MID-APRIL-2025.***
Elemex Hub eBike Conversion Kit 750W
Product Overview:
Note: This kit is built for off-road adventures only. Be sure to check local laws to ensure it’s right for you. For a safe first ride, DIYers should get a final check from a licensed installer before hitting the road.
Attention: The buyer is solely responsible for ensuring the safe installation, use, and compliance with local laws and regulations for this product. To comply with Australian public road regulations, see the Speed Limiting Instructions section below.
Product Care: All joints of the kit are waterproof to ensure durability and reliability in various weather conditions. However, the connector that connects to the hub motor is not waterproof and should not be immersed in water. It must be protected from water exposure during use to prevent damage.
Product Specifications:
- Brand: Elemex
- Hub Motor Type: Brushless Direct Drive (Gearless)
- Controller Type: Brushless Motor Controller Pure Sinewave 28A (with XT60 Power Connector)
- LCD Display: 4″ M808X 300mm Length, NFC/ 3.5″ UKC1 111mm Length (Optional)
- Rim: Aluminium Alloy double wall extra strong 33mm internal rim width (Best suited for 2.35″ to 2.5″ wide tyres)
- pedal assist crank sensor (PAS)
- Throttle Type: Throttle full twist (right hand) and matching left hand handlebar grip
- Brake: Aluminium Alloy eBrake Lever (R-L) for V/Disc
- Wiring Type: Integrated Waterproof Cable
- Cable Length: 1230mm
- Wheel Size: 26″, 27.5″, 29″ (Optional)
- Freewheel: Shimano TZ500 7 Speed Thread-on Freewheel
- Drop Out: 135mm-142mm
- Max Torque: 78Nm
- Power: 750W
- Rated Speed: 40km/h
- Maximum Speed: 45km/h
- Spokes: 36H-12G
- Weight: 8kg

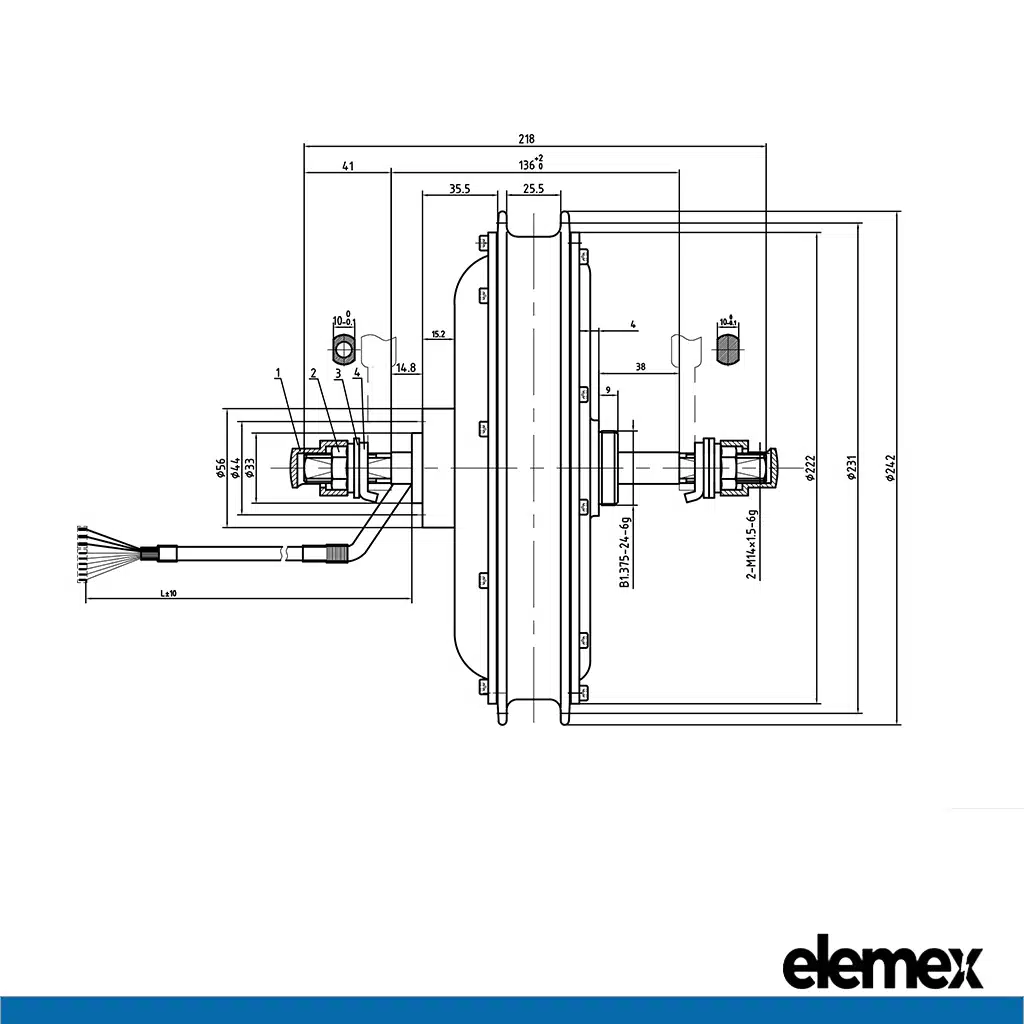

- Wheel Axle:M14-10/210mm
- Load Capacity: 150 kg (including the total weight of the bike and rider)
- Certification: CE, EN15194, RoHS
- Warranty: 1 Year on all parts

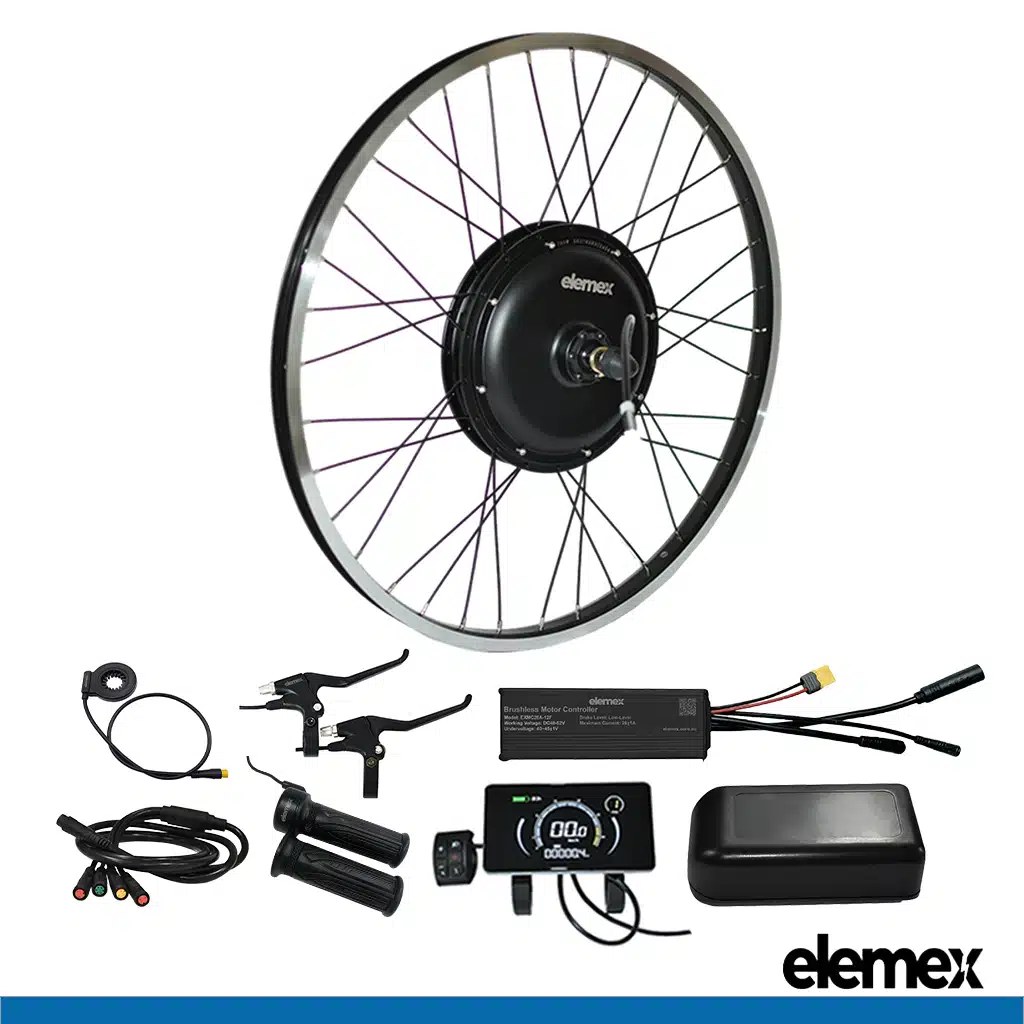

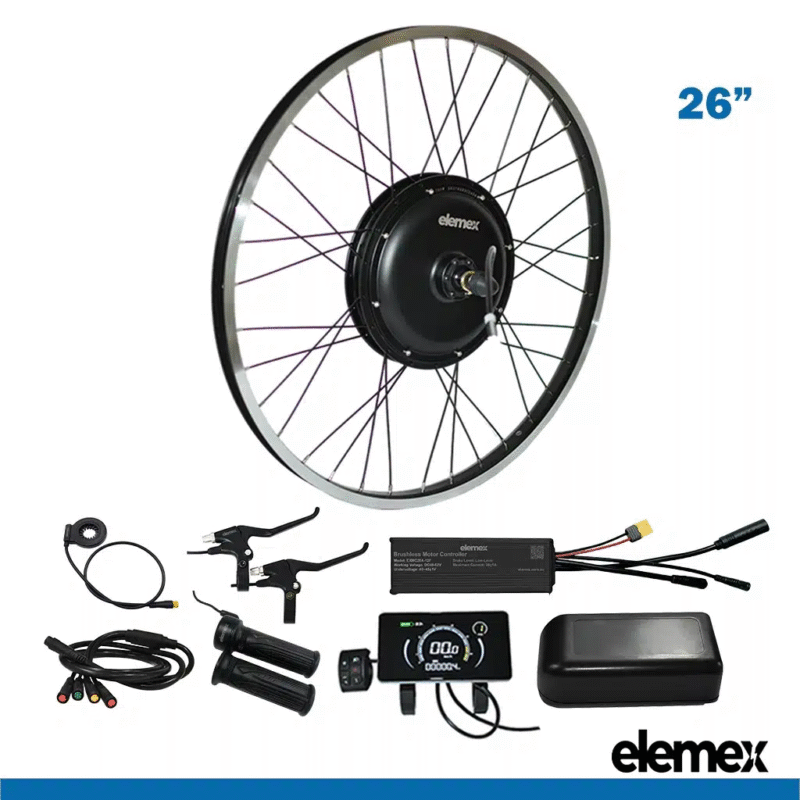

Package Includes:

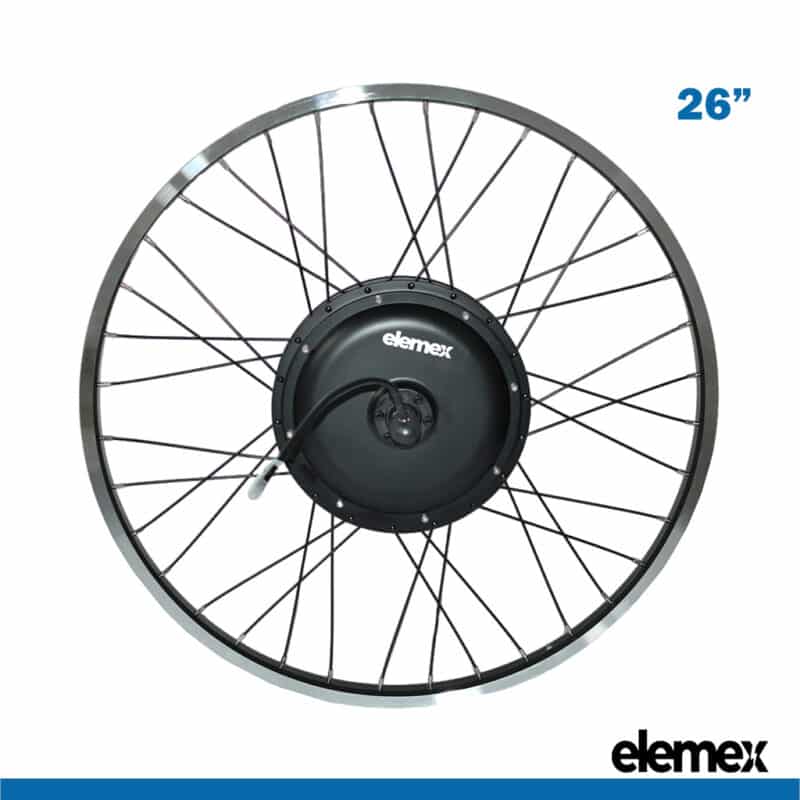

- 1x 750W Hub Motor Wheel (Optional Size) [Please Select Your Rim Size]
- 1 x Controller
- 1 x Controller Case
- 1 x Colour LCD Display (Optional) [Please Select Your Display]
- 1 x Pedal Assist Crank Sensor (PAS)
- 1 x Throttle full twist (right hand) and matching left hand handlebar grip
- 1 x Shimano TZ500 7 Speed Freewheel
- 1 x Cable Tie set
- 1 x Pair of Brake Levers (suited for mechanical/cable brakes)
Safety Accessories:

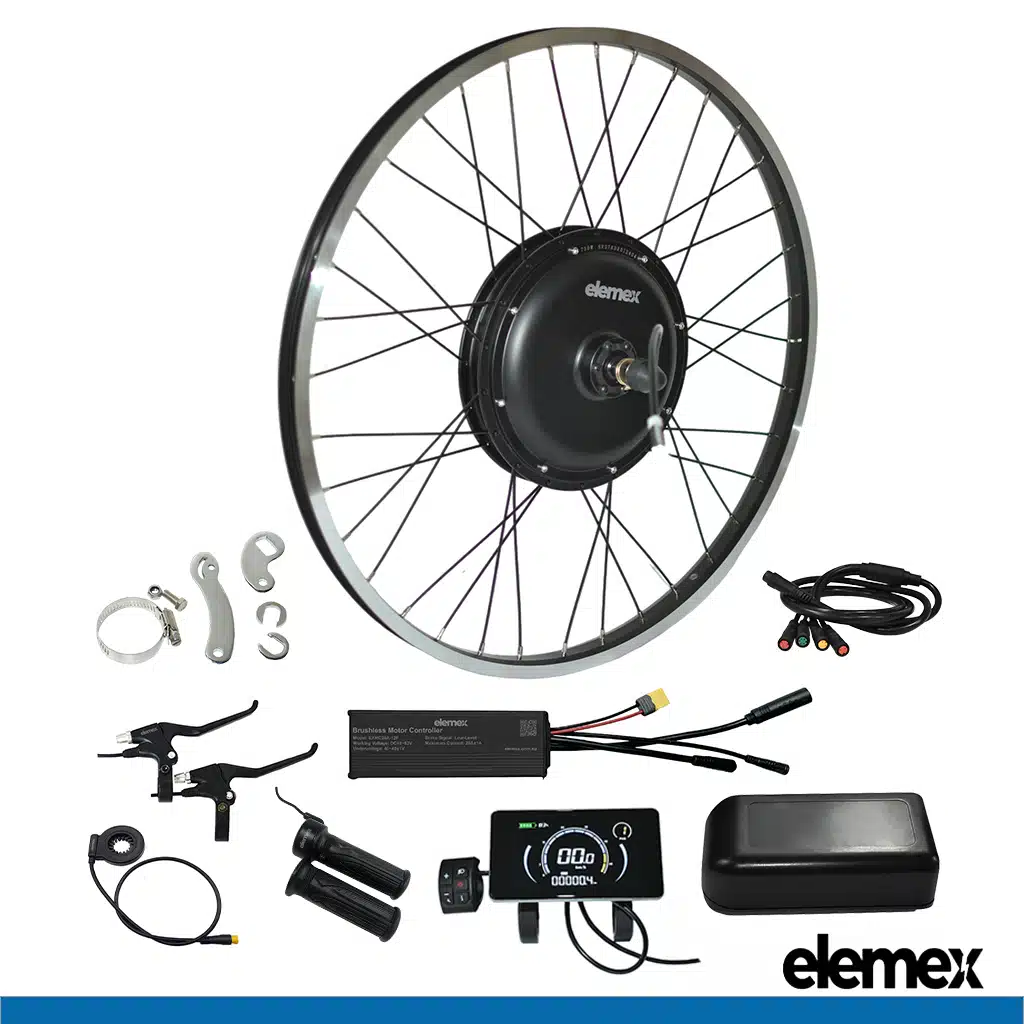

For safety and durability during high-torque operation, it is highly recommended to install torque arms on both sides of the bike. These prevent axle spinning inside the dropouts, which could damage the motor wiring. Torque arms are sold separately.
Speed Limiting Instructions:
To comply with Australian regulations requiring a maximum of 250W continuous power and 25 km/h on public roads, you can limit the speed via the Display:
M808X Display:
- Turn on the M808X display by pressing the power button.
- Access the settings menu by holding the “UP” and “DOWN” arrows simultaneously for 2 seconds.
- Navigate to the speed limit setting and set it to 25 km/h.
- Save the settings and exit the menu.
UKC1 Display:
- Turn on the Display – Press and hold the Power button to turn on the UKC1 display.
- Enter the Settings Menu – Press and hold the “+” and “-” buttons together for a few seconds.
- Access Speed Limit – Navigate through the menu using the “+” and “-” buttons until you find the Speed Limit option.
- Set the Speed Limit – Use the “+” or “-” buttons to adjust the speed limit to 25km/h.
- Save and Exit – Press and hold the Power button to save and exit the settings.
This ensures legal compliance when using the kit in public areas.
-Do eBikes have regenerative brakes?
Regenerative braking isn’t just about slowing down an electric bike; it’s a smart system that transforms kinetic energy into electrical energy during braking, recharging the battery in the process. This feature enhances an e-bike’s range and promotes a more eco-friendly ride.
Transform your bike, transform your journey – with our 750W hub motor, enjoy effortless rides, extended distances, and the freedom to explore without limits!
