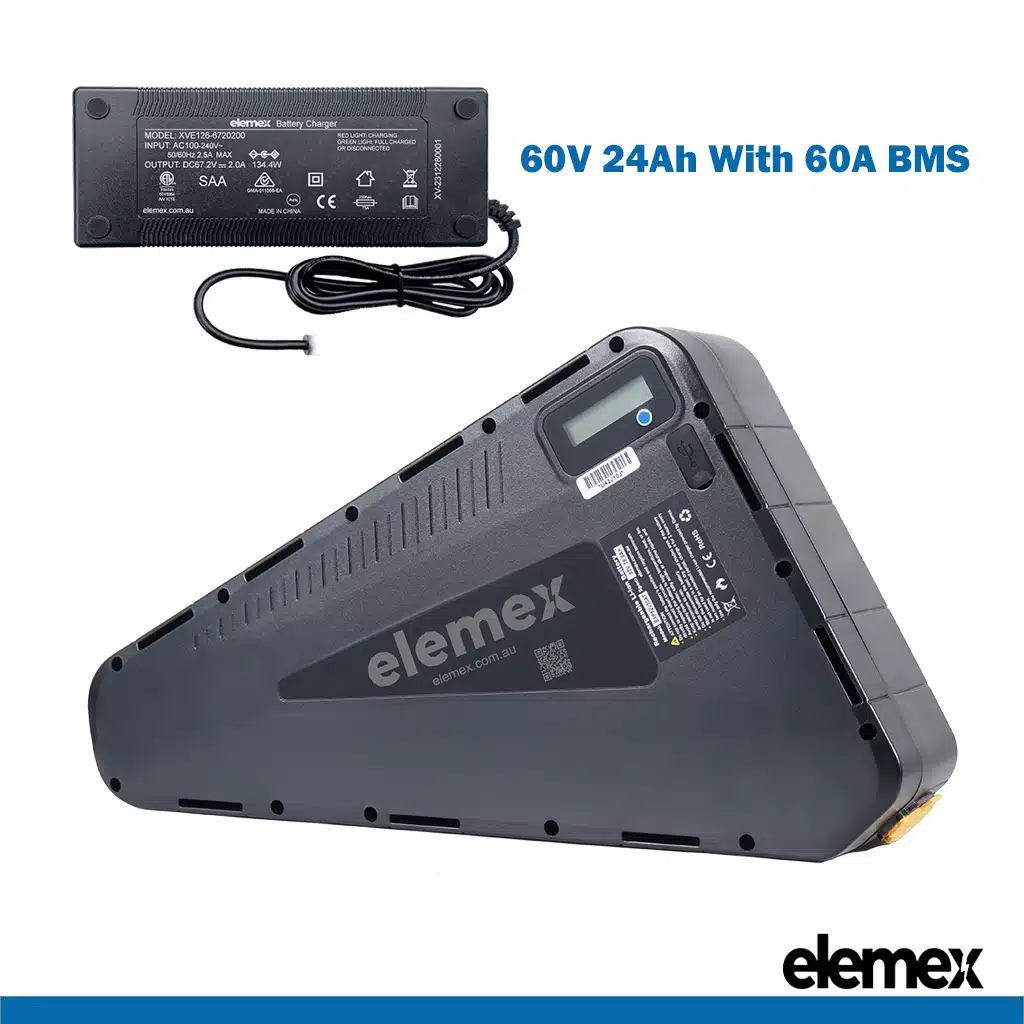

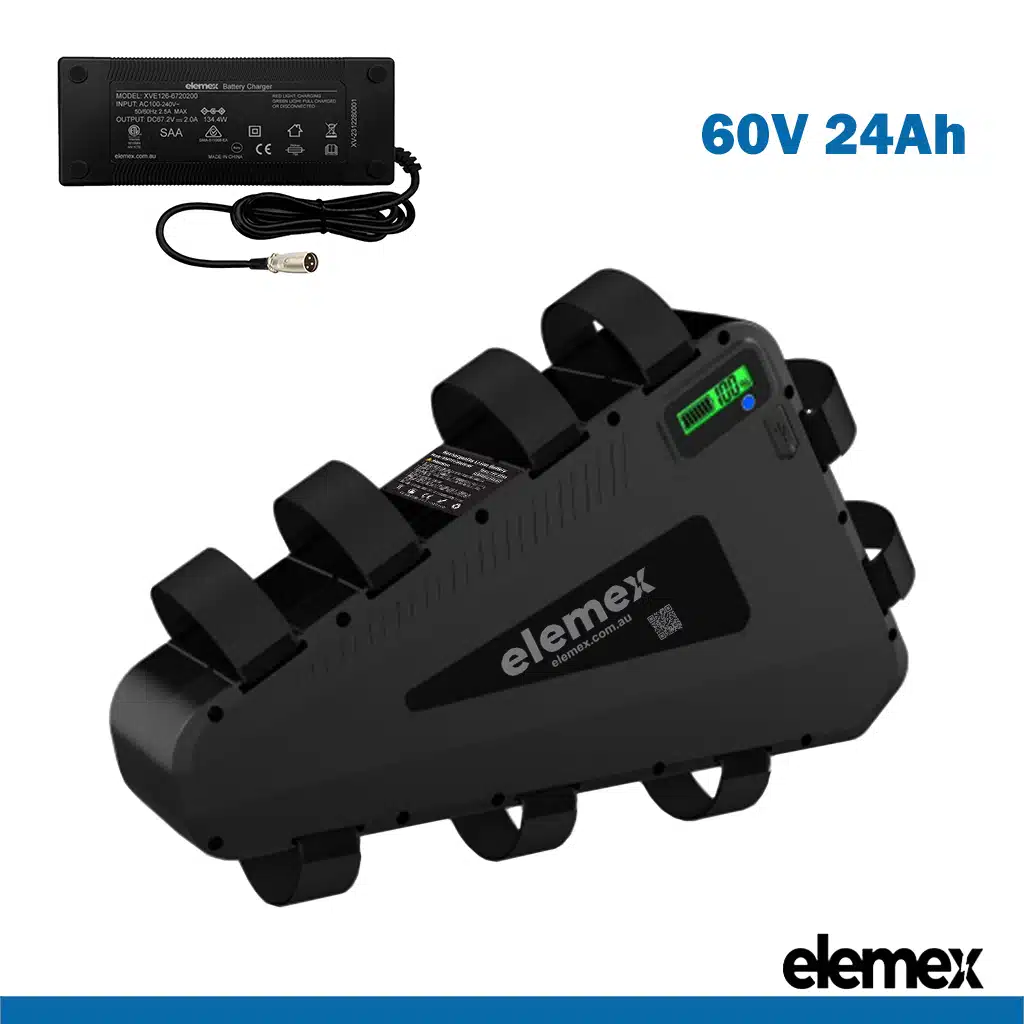

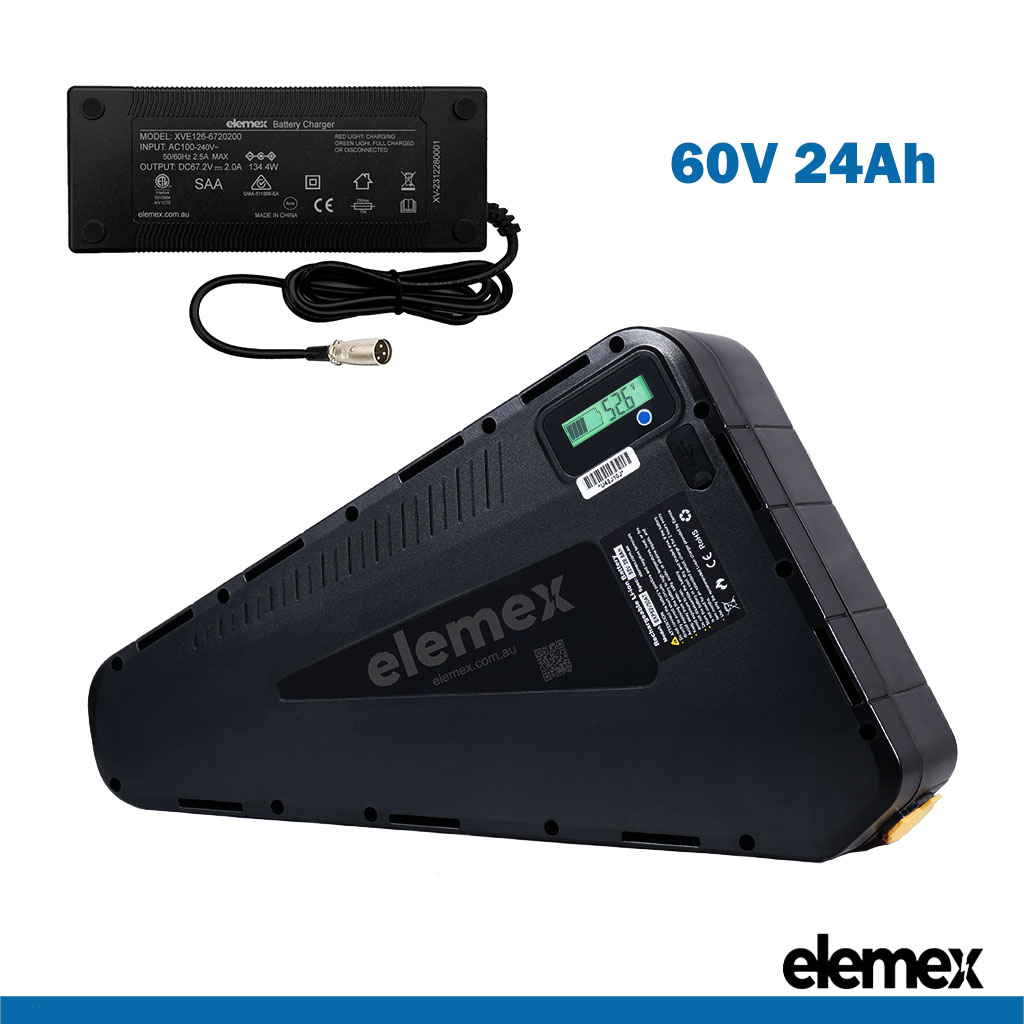

60V 24Ah Triangle eBike Battery Li-ion Pack for up to 3000W Motor + 2Ah Charger

Elemex 60V 24Ah Triangle eBike Battery is Suitable for 3000W Motors

Genuine LG Cells

+1 Year Warranty60V 24Ah Triangle Battery for eBike

Product Overview

The Elemex 60V 24Ah Triangle eBike Battery features a waterproof design with high-quality sealing technology, protecting against rain, splashes, and dust for all-weather reliability. Engineered with genuine LG cells, this lithium pack ensures optimal performance, longevity, and consistent power for motors up to 3000W. It includes a premium charger, making it a dependable choice for high-performance eBikes.

Battery Features

• Brand: Elemex

• Cell Type: 21700 4800mAh Lithium-ion Battery

• Cell Brand: LG (Genuine) – LG M48A Cell

• Nominal Voltage: 60V

• Array Mode: 16s5p

• Max Constant Discharge Current: 60A

• Max Continuous Charge Current: 4A

• Peak Current: 180A (3-5 Seconds)

• Charge Method: CC/CV

• Rated Capacity: 24Ah

• Charge Cutoff Voltage: 67.2V

• Discharge Cut off Voltage: 48V – 51.2V

• Energy: 1421 Wh

• Charge/Discharge Temperature: -15°C to 55°C

• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance

• BMS: 60A

• Charging Time: Approx. 5 to 10 hours

• Charging Compatibility: Elemex-approved Chargers

• Output Connector: XT90 Female

• Housing Material: Plastic

• Compatible Brand: Elemex Conversion Kits, Universal

• Cycle Life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)

• Weight: Approx. 8kg

• Dimensions: Approx. 400mm x 350mm x 240mm~ (Thickness: 80mm~)

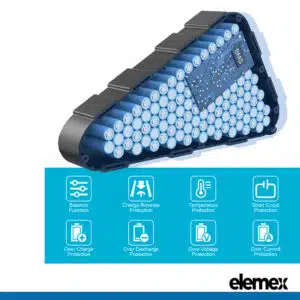

BMS Protection

This 60V Triangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

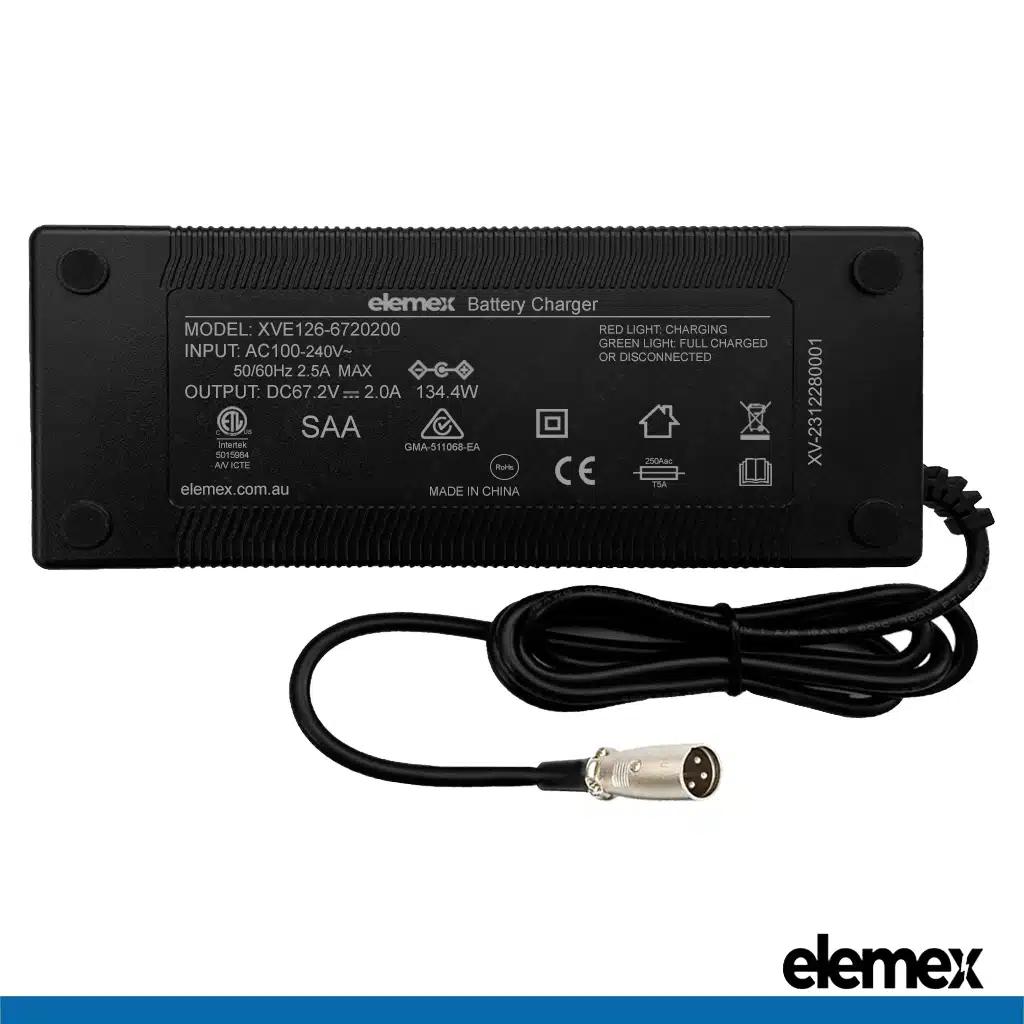

Charger Specifications

• Brand: Elemex

• Input: AC 100-240V∼ 50/60Hz

• Output: DC 67.2V 2Ah [134.4W]

• Compatible Battery: 60V Lithium Li-ion

• Certifications: SAA, GMA, CE, ETV

• Warranty: 1 Year

60V ebike Battery Charger

Important Information

Compatibility

When purchasing a battery, ensure the voltage matches your motor’s requirements (e.g., a 60V motor must pair with a 60V eBike battery). Burnt-out controllers due to reprogramming or incompatible pairing are not covered by warranty.

Frame Space Considerations

High-capacity batteries may not fit in some bike frames, particularly dual suspension bikes. If under-mounting or rear-mounting isn’t possible, consider using two smaller capacity batteries, one of which can be kept in a backpack for long rides.

Dimension Check

Please verify the dimensions of this battery pack before placing your order to ensure compatibility with your bike frame.

Package Includes

• 1x Elemex 60V 24Ah Triangle eBike Lithium Battery Pack (Genuine LG Cells)

• 1x Elemex 67.2V 2Ah Premium Lithium Battery Charger

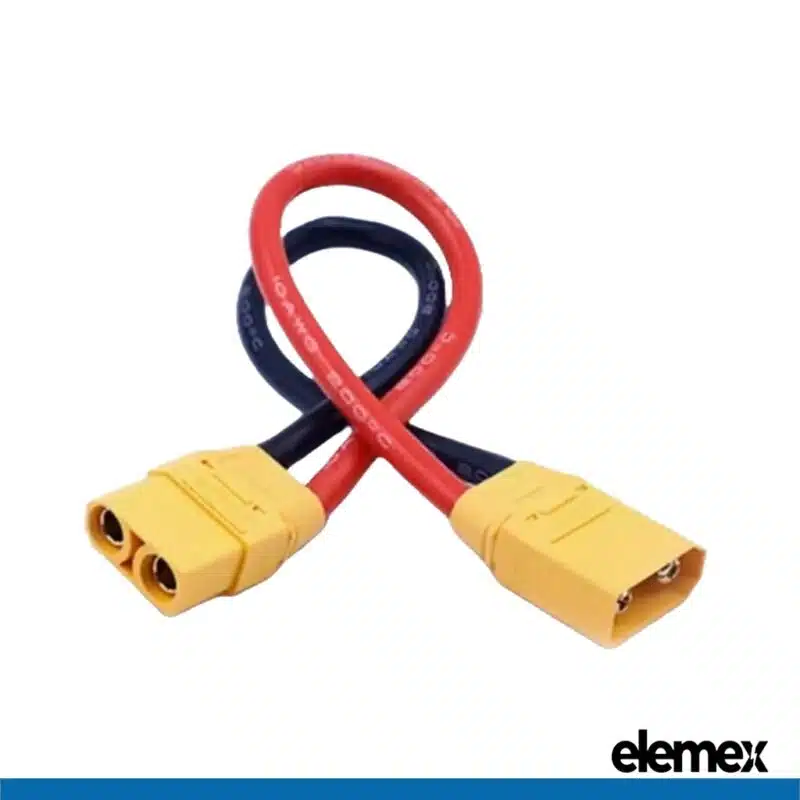

• 1x Adapter Cable (XT90 Male) to (XT60 Female)

• 1x Premium Tear-resistant Velcro Set (Straps)

• 1x User Manual

• 1x Warranty Certificate
