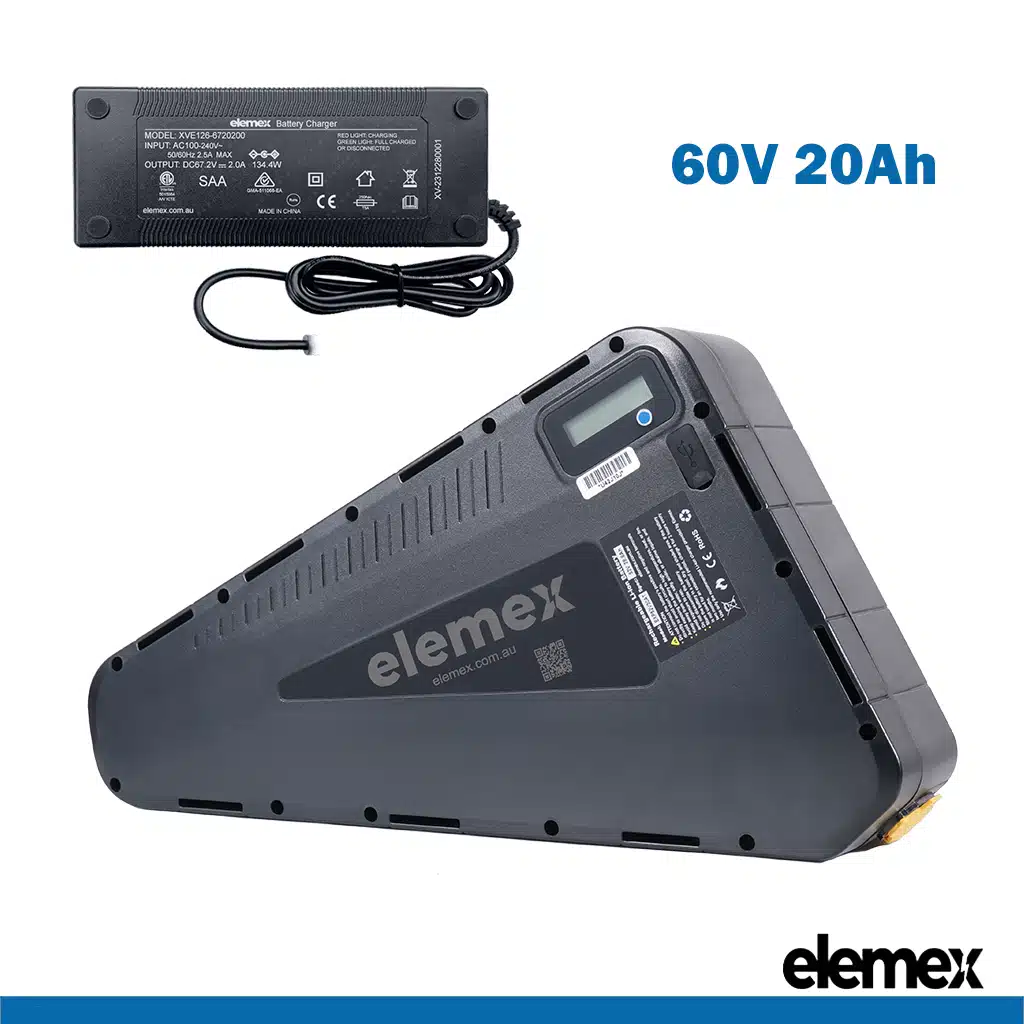

60V Triangle eBike Battery 20Ah Pack for up to 3000W Motors + Charger

60V eBike Battery Triangle 20Ah Lithium Pack + Charger

Elemex 60V Triangle eBike Battery is suitable for up to 3000W Motors

Genuine LG Cells

+1 Year Warranty

PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS EARLY-DECEMBER-2024.

Battery Features:

• Cell Type: 21700 4800mAh Lithium-ion
• Cell Brand: LG (Genuine)
• Nominal Voltage: 60V
• Array Mode: 16s4p
• Max Constant Discharge Current: 50A
• Max Continuous Charge Current: 4A
• Peak Discharge Current: 120A
• Way of charge: CC/CV
• Rated Capacity: 19.2Ah
• Charge Cut off Voltage: 67.2V
• Discharge Cut off Voltage: 48V ~ 51.2V
• Energy: 1137 Wh
• Charge/Discharge Temperature: -15 ~ 55 C
• Protections: Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging time: Approx. 5 to 10 hours
• BMS: 50A
• With XT60 Adapter
• Case Colour: Black
• Cycle life: 1100 times
• Weight: 6kg~
• Dimensions: Approx. 395mm x 360mm x 230mm~ (Thickness: 80mm~)
• Warranty: 1 Year

BMS Protection:

This 60V Triangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

Charger Features:

• Brand: Elemex
• Input: AC 100-240V∼ 50/60Hz
• Output: DC 67.2V 2Ah (134.4 W)
• Compatible Battery: 60V Lithium Li-ion
• Certifications: SAA, GMA, CE, ETV
• Warranty: 1 Year

60V Triangle eBike Battery 20Ah + Charger

Note:

When purchasing an Elemex battery, always ensure that voltages are paired correctly (e.g., a 60V motor must be paired with a 60V battery). Any controllers that are burnt out due to reprogramming or incompatible pairing are not covered by warranty. Please check the dimensions of this item before placing your order. If you are unsure of which battery to pair with your bike, please do not hesitate to contact us for more information.

Package Includes:
