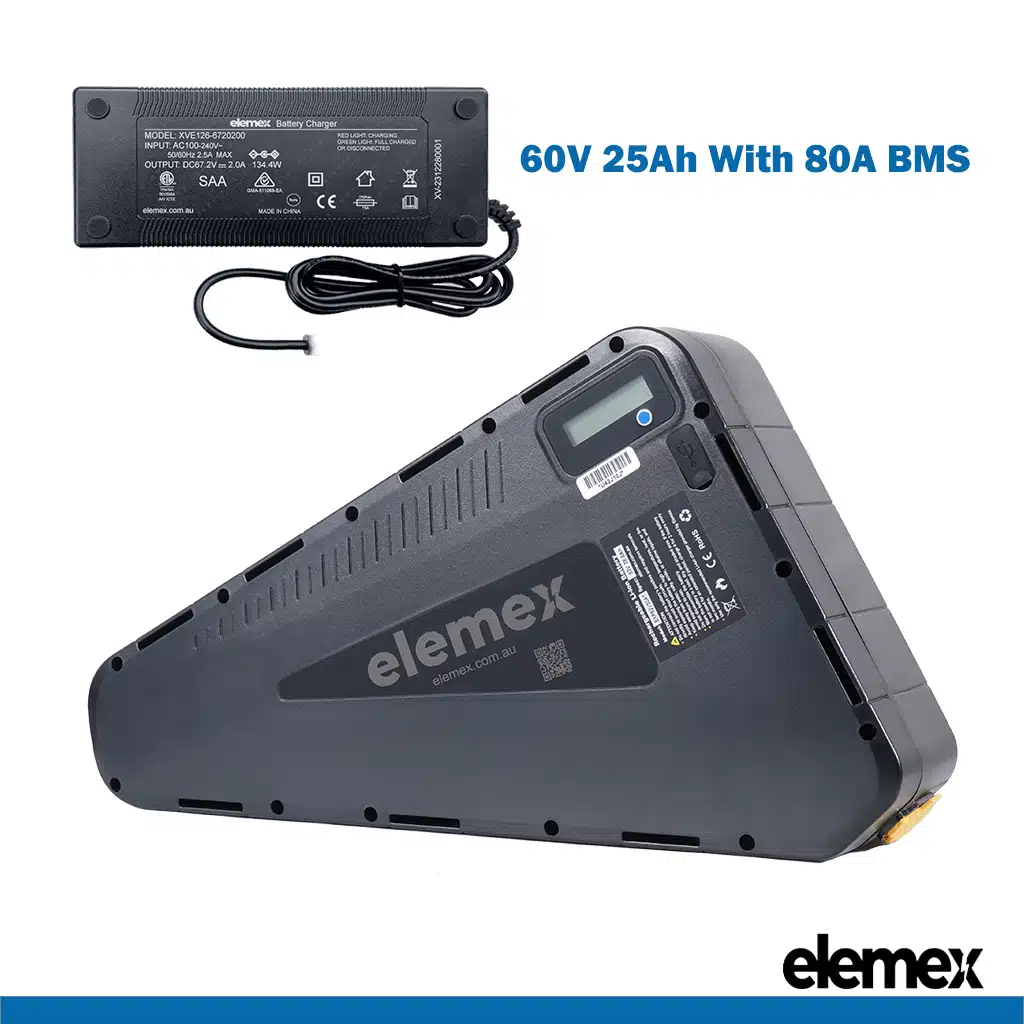

60V 25Ah Triangle eBike Li-ion Battery with 80A BMS for up to 3000W Motor + 2Ah Charger

Elemex 60V 25Ah Triangle eBike Battery is Suitable for 3000W Motors

Genuine Samsung Cells

+1 Year Warranty60V 24Ah Triangle Battery for eBike

Product Overview:

The Elemex 60V 25Ah Triangle eBike Battery features a waterproof design with high-quality sealing technology, protecting against rain, splashes, and dust for all-weather reliability. Engineered with genuine Samsung cells, this lithium pack ensures optimal performance, longevity, and consistent power for motors up to 3000W. It includes a premium charger, making it a dependable choice for high-performance eBikes.

• Brand: Elemex
• Cell Type: 21700 5000mAh Lithium-ion Battery
• Cell Brand: Samsung (Genuine) – Samsung 50S Cell
• Nominal Voltage: 60V
• Array Mode: 16s5p
• Max Constant Discharge Current: 80A
• Max Continuous Charge Current: 4A
• Peak Current: 180A (3-5 Seconds)
• Charge Method: CC/CV
• Rated Capacity: 25Ah
• Charge Cutoff Voltage: 67.2V
• Discharge Cut off Voltage: 48V – 51.2V
• Energy: 1480 Wh
• Charge/Discharge Temperature: -15°C to 55°C
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• BMS: 80A
• Charging Time: Approx. 5 to 10 hours
• Charging Compatibility: Elemex-approved Chargers
• Output Connector: XT90 Female
• Housing Material: Plastic
• Compatible Brand: Elemex Conversion Kits, Universal
• Cycle Life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)
• Weight: Approx. 8kg
• Dimensions: Approx. 400mm x 350mm x 240mm~ (Thickness: 80mm~)

BMS Protection:
This 60V Triangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

Charger Specifications:

• Brand: Elemex
• Input: AC 100-240V∼ 50/60Hz
• Output: DC 67.2V 2Ah [134.4W]
• Compatible Battery: 60V Lithium Li-ion
• Certifications: SAA, GMA, CE, ETV
• Warranty: 1 Year

Built with precision and meeting stringent Australian Standards, Elemex Battery Chargers are engineered to endure and excel in performance.

60V ebike Battery Charger

Important Information:

Compatibility
When purchasing a battery, ensure the voltage matches your motor’s requirements (e.g., a 60V motor must pair with a 60V eBike battery). Burnt-out controllers due to reprogramming or incompatible pairing are not covered by warranty.

Frame Space Considerations
High-capacity batteries may not fit in some bike frames, particularly dual suspension bikes. If under-mounting or rear-mounting isn’t possible, consider using two smaller capacity batteries, one of which can be kept in a backpack for long rides.

Dimension Check
Please verify the dimensions of this battery pack before placing your order to ensure compatibility with your bike frame.

Package Includes:

• 1x Elemex 60V 25Ah Triangle eBike Lithium Battery Pack (Genuine Samsung Cells)
• 1x Elemex 67.2V 2Ah Premium Lithium Battery Charger
• 1x Adapter Cable (XT90 Male) to (XT60 Female)
• 1x Premium Tear-resistant Velcro Set (Straps)
• 1x User Manual
• 1x Warranty Certificate
