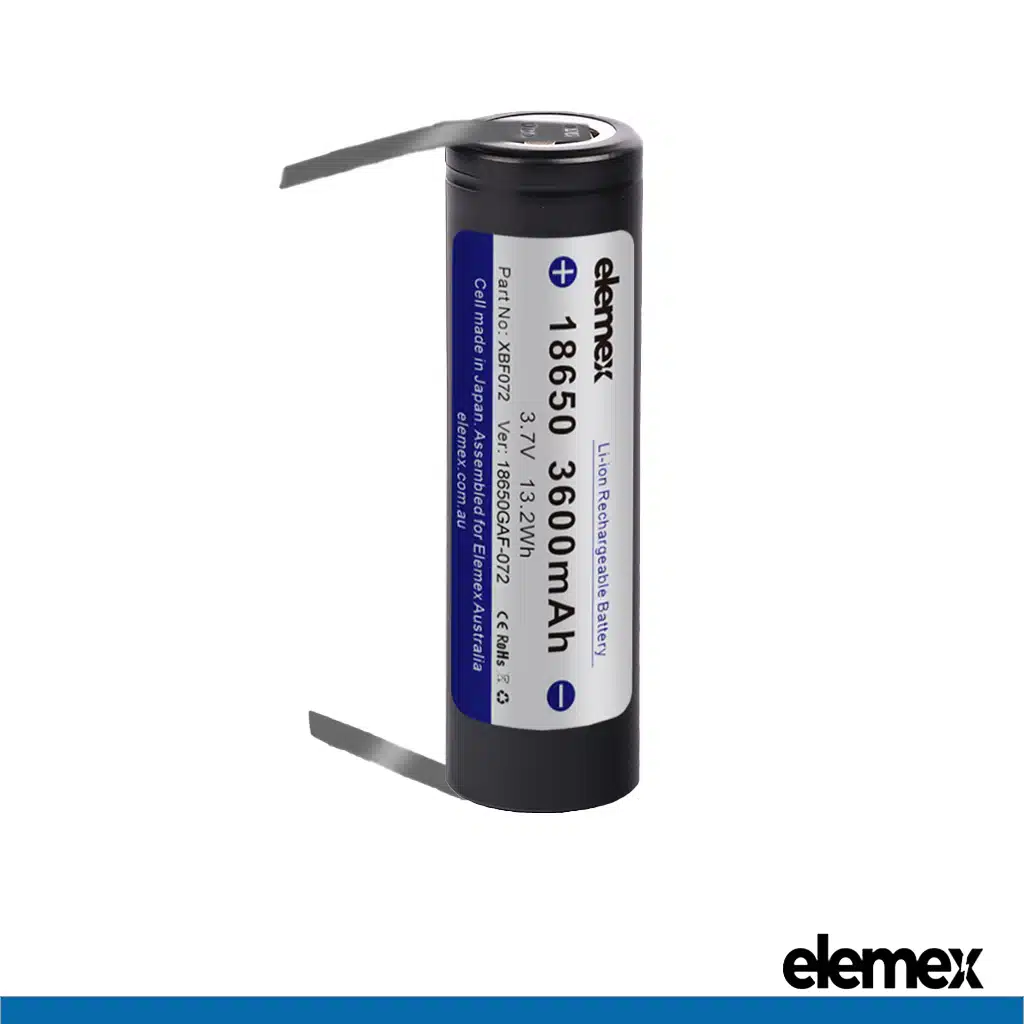

Elemex Solder Tabbed 18650 Battery 3600mAh Panasonic GAF Li-ion 3.7V (Tabbed Version)

18650 Battery 3600mAh with Solder Tabs Elemex Panasonic Li-ion 3.7V (Genuine)

18650 Battery + Free Battery Carry Case

Flat Top (65mm~ Long) | Button Top (67mm~ Long) | PROTECTED Button Top (70mm~ Long)

Three Types of 18650 Batteries

Please carefully measure your device’s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Battery Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.

Product Features:

• Capacity (Ah): 3.6 Ah Max (3620mAh) Min (3520mAh)
• Nominal Voltage (V): 3.6 ~ 3.7 V
• Charging Voltage (V): 4.2 V
• Charging Current (Ah): 1.47 Ah (1470 mAh)
• Cut-off Voltage (V): 2.5 V
• Energy (Wh): 13.2 Wh
• Energy Density (Wh/L): 745 Wh/L
• Discharge rate (C): C Rating 2.5C (Recommended Max current 10 Amp)
• Pulse current (Ah): (5-6 sec.): 15 Ah
• Weight (g): 48 g (+/- 0.5 g)
• Diameter (mm): 18.1 mm (+/- 0.3 mm
• Height (mm): 67.0 mm (+/- 0.5 mm)
• PCB: No
• Top (positive side): Flat Top (Solder Tabbed)
• Model: Solder Tabbed Elemex NCR18650 GAF (NCR18650GAF Cell) new version-higher capacity
• Assembled for Elemex Pty Ltd Australia (Cell Made in Japan)

Package Includes:

• Genuine Elemex (Panasonic) NCR18650GAF 3600mAh Battery with Solder Tabs [please select the Battery Type]
• Battery Carry Case

Warning:

• Never fully discharge a Li-ion battery (below 2.5V under load).
• Charge fully to 4.2V before first use.
• Never use force to install (insert) a Li-ion battery.
• Do not use old and new battery cells together.
• Use only a high-quality battery charger.
• Do not remove the heat shrink/wrapping cover (it must be used as it is).
• Do not expose to heat, NOT penetrate or modify.
• Do not short (connect) positive (top) and negative (bottom) battery terminals (contacts).
• Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
• Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
• Do not charge unattended nor overcharge unprotected cells.
