Solder Tabbed NCR18650GA 3500mAh Panasonic / Sanyo Li-ion 3.7V Rechargeable 18650 Battery (Genuine)
NCR18650 GA – 10Ah Discharge Rate – Solder Tabbed
Made in Japan

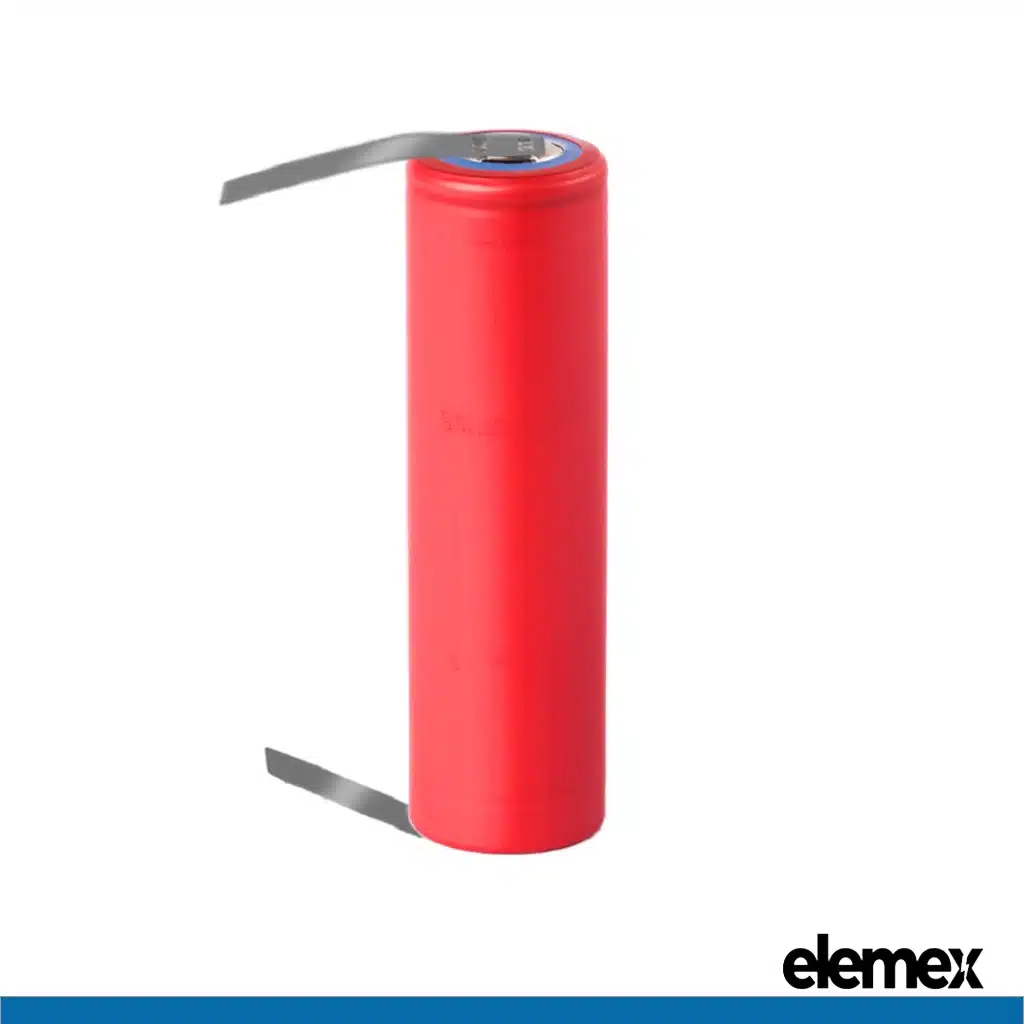

Solder Tabbed 18650GA 3500mAh Panasonic Battery (U-Type)

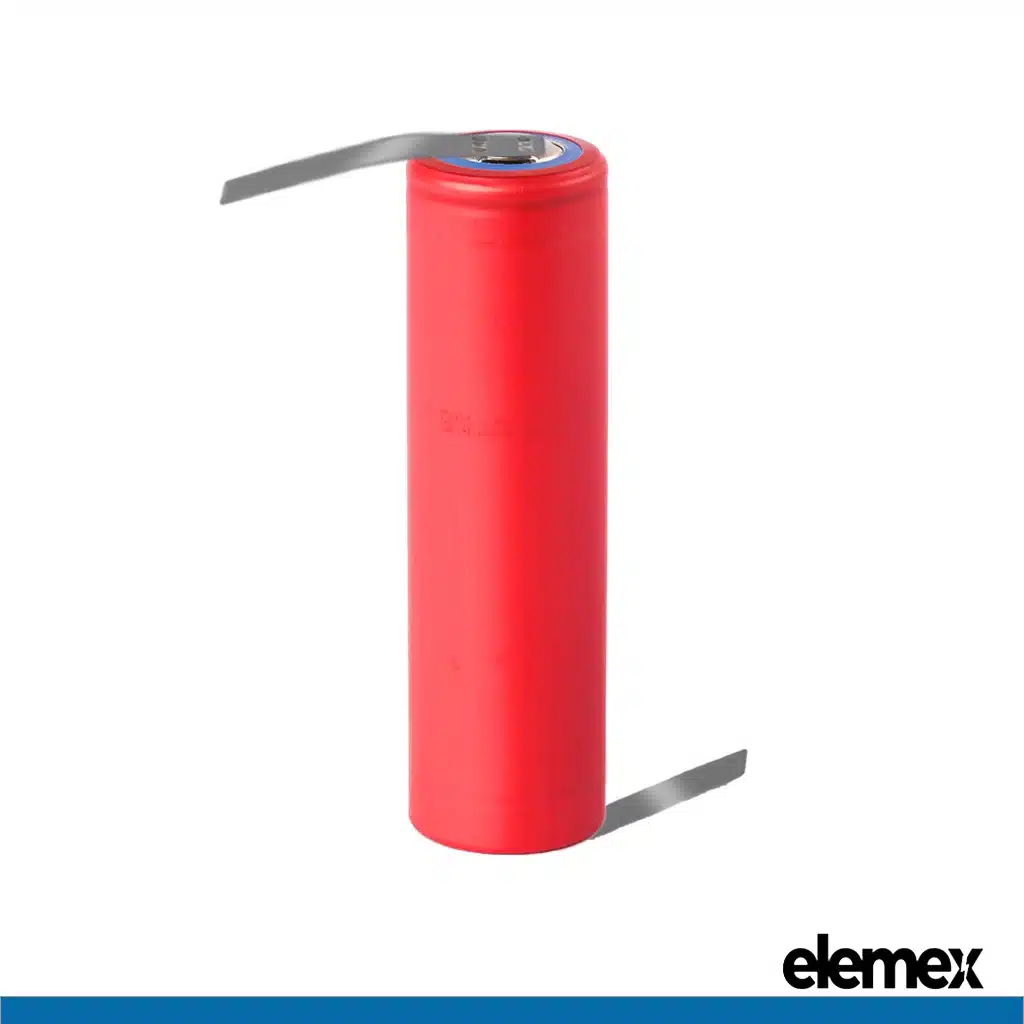

Solder Tabbed 18650GA 3500mAh Panasonic Battery (Z-Type)
Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.
18650 Battery
Product Features:
- Capacity (Ah): 3.5 Ah Max (3550 mAh) Min (3500 mAh)
- Nominal Voltage (V): 3.7 V
- Charging Voltage (V): 4.2 V
- Charging Current (Ah): 1.47 Ah (1470 mAh)
- Cut-off Voltage (V): 2.5 V
- Energy (Wh): 12.95 Wh
- Energy Density (Wh/L): 745 Wh/L
- Max. Discharge rate (C): C Rating 2.5C (Recommended Max current 10 Amp)
- Pulse current (Ah): (5-6 sec.): 15 Ah
- Weight (g): 48 g (+/- 0.5 g)
- Diameter (mm): 18.4 mm (+/- 0.03 mm)
- Height (mm): 65 mm (+/- 0.03 mm)
- PCB: No
- Top (positive side): Flat Top
- Model: NCR18650GA Tabbed Version
- Made in Japan
Package Includes:
- 1x Genuine Panasonic NCR18650GA 3500mAh Li-ion Rechargeable Battery with Solder Tabs (U-Type OR Z-Type) [Please Select the Battery Type]
Warning:
- Never fully discharge a Li-ion battery (below 2.5V under load).
- Fully charge a battery (to 4.2V) before first use.
- Never use force to install (insert) a Li-ion battery.
- Do not use old and new battery cells together.
- Use only a high-quality battery charger.
- Do not remove the heat shrink/wrapping cover (it must be used as it is).
- Do not expose to heat, NOT penetrate or modify.
- Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
- Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
- Never charge a battery over 4.25V (another reason to use a high-quality battery charger).
- Do not charge unattended nor overcharge unprotected cells.
