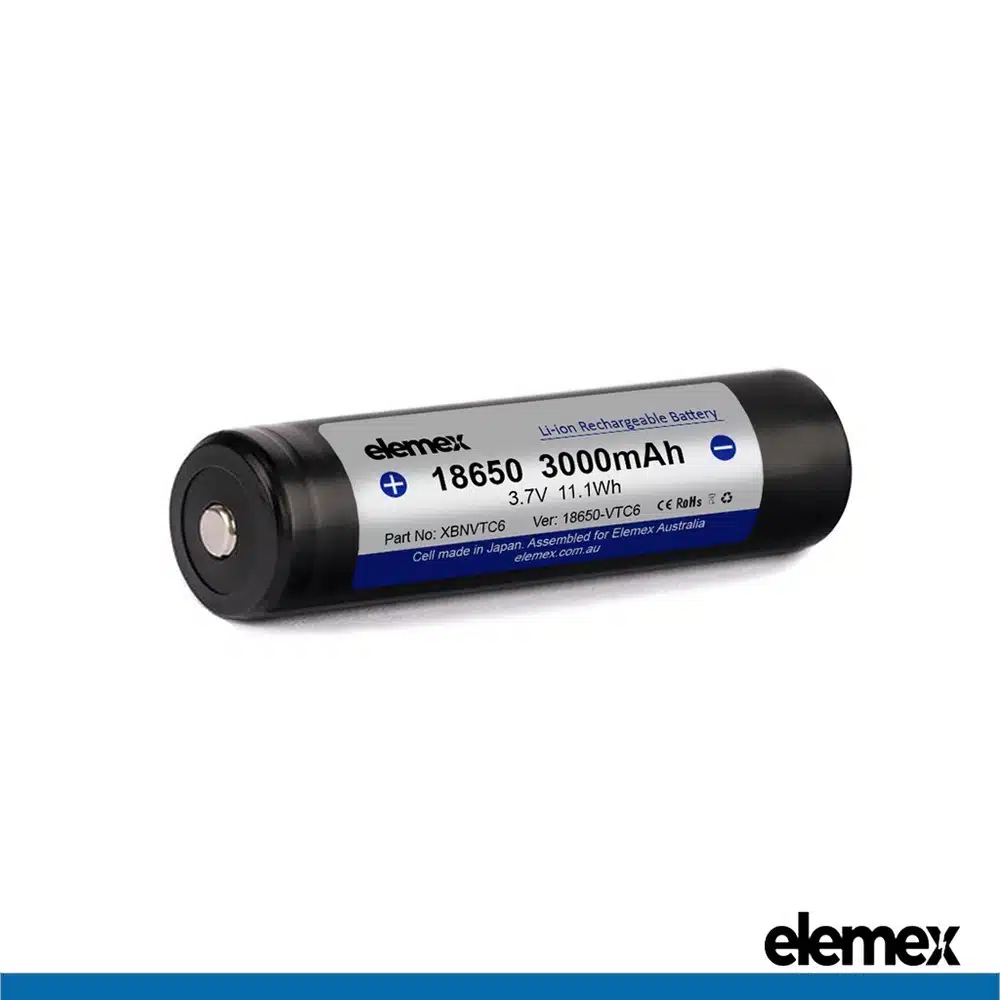

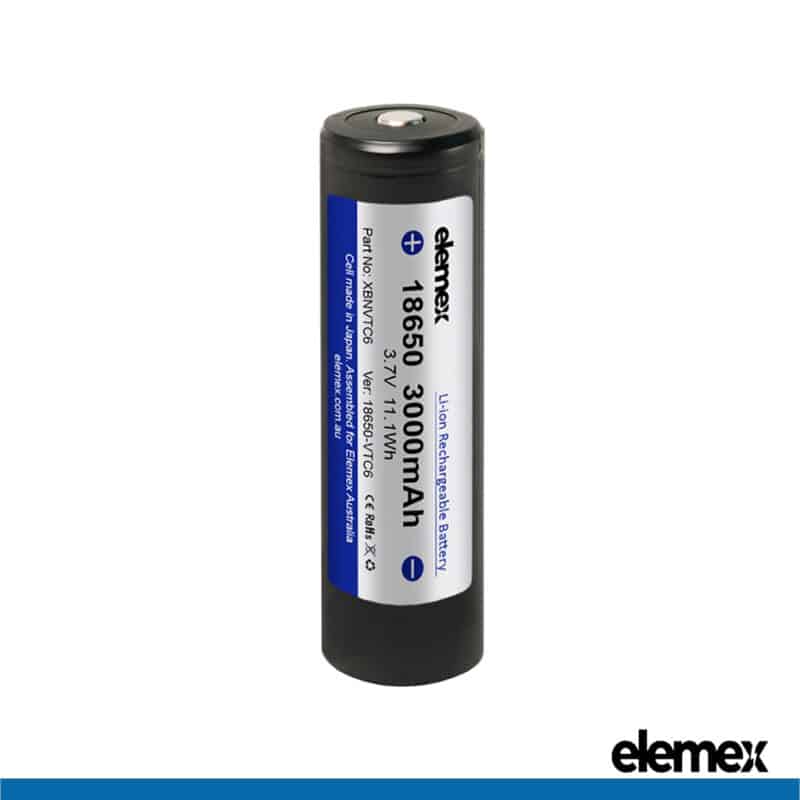

Elemex 18650 VTC6 Rechargeable Li-ion Cell Battery 3000mAh (Button Top)

Elemex 18650 VTC6 Button Top Battery 3000mAh Li-ion Rechargeable 3.7V

High Current 18650 Elemex VTC6 Cell – 25A Discharge Rate – Button TOP

+ FREE CARRY CASE

Please carefully measure your device’s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Cell Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Product Features:

• Capacity (Ah): 3.0 Ah Max (3000 mAh) Min (2900 mAh)
• Nominal Voltage (V): 3.6 ~ 3.7 V
• Standard Charging Voltage (V): CC/CV, 0.2C, 4.2V
• Charging Current (A): 5.0 A (5000 mA) Max
• Cut-off Voltage (V): 2.0 V
• Energy (Wh): 10.8 Wh
• Internal Impedance: 7.9 milli-Ohms
• Max. Discharge rate (C): C Rating 8.5C (Recommended Max current 25 Amp)
• Max. Discharge Current vs. Time: 30A-40A > 44s, 55A > 19s, 80A > 6s (Never discharge above 80°C)
• Pulse current (A): (5-6 sec.): 80 A
• Operating temperature: Charging 0°C ~45°C, discharging: -20°C ~ 60°C
• Weight (g): 46.4 g (+/- 1.5 g)
• Diameter (mm): 18.0 mm (+/- 0.3 mm)
• Height (mm): 65.0 mm (+/- 0.5 mm)
• PCB: No
• Top (positive side): Button Top
• Model: XBNVTC6
• Made in Japan
