Snow Bike Rim 26″ for eBike Hub Motor 26 inch Conversion Kit
Elemex 6061 Aluminium Alloy 26″ Fat Rim and Spokes for Electric Bike Conversion Kit
26″ eBike Snow Rim for Conversion Kit
Product Overview

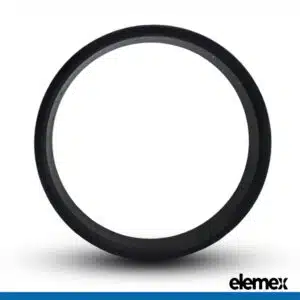

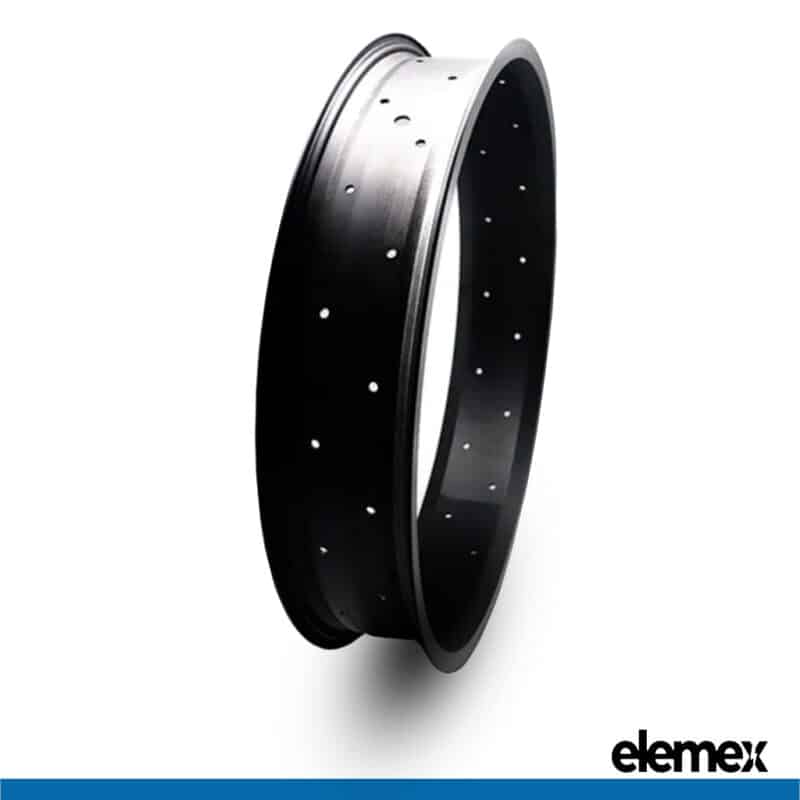

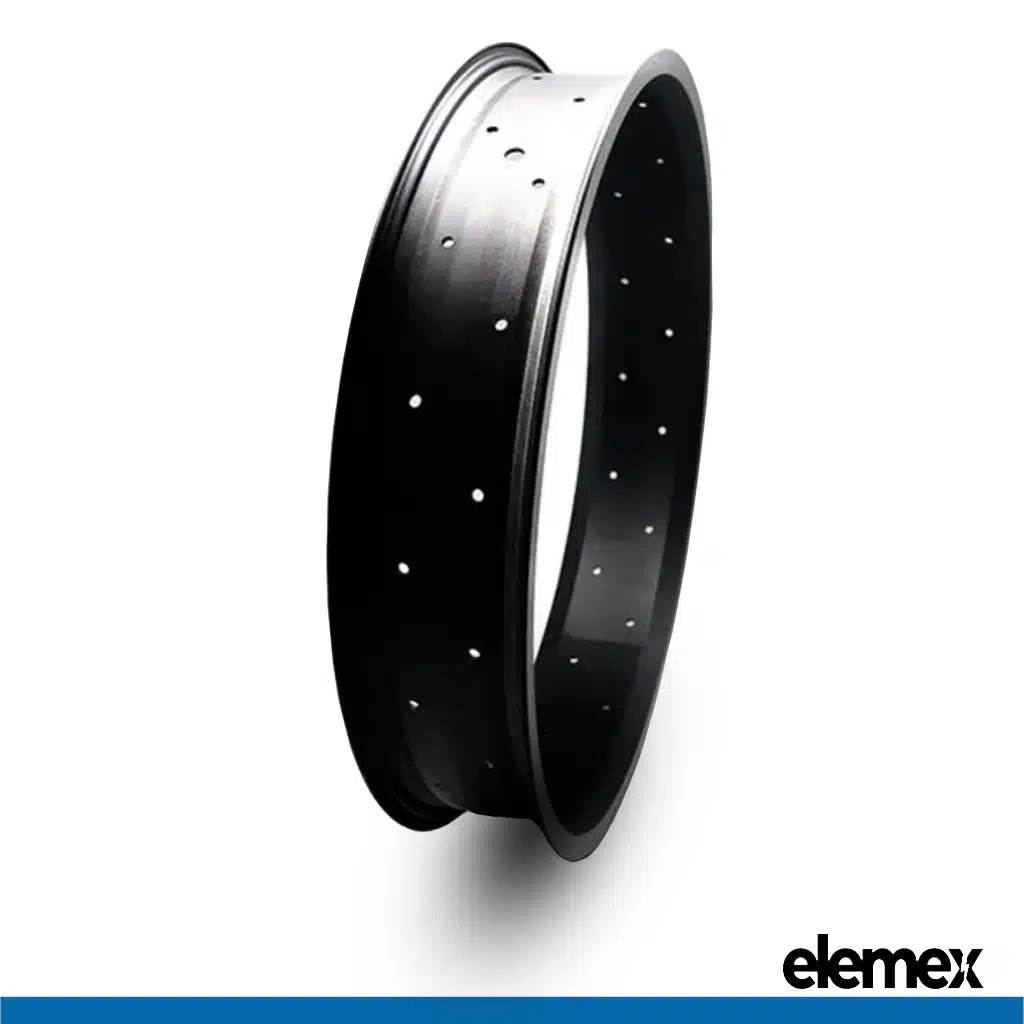

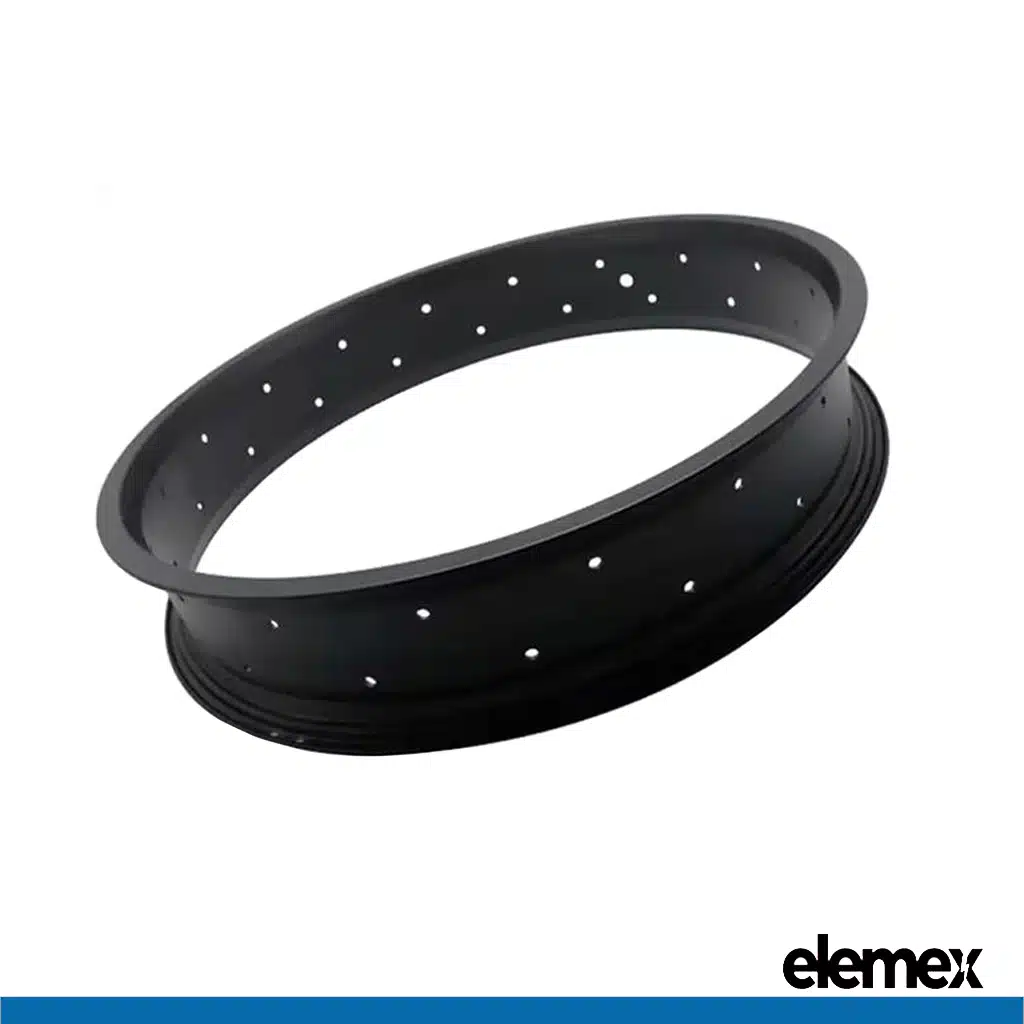

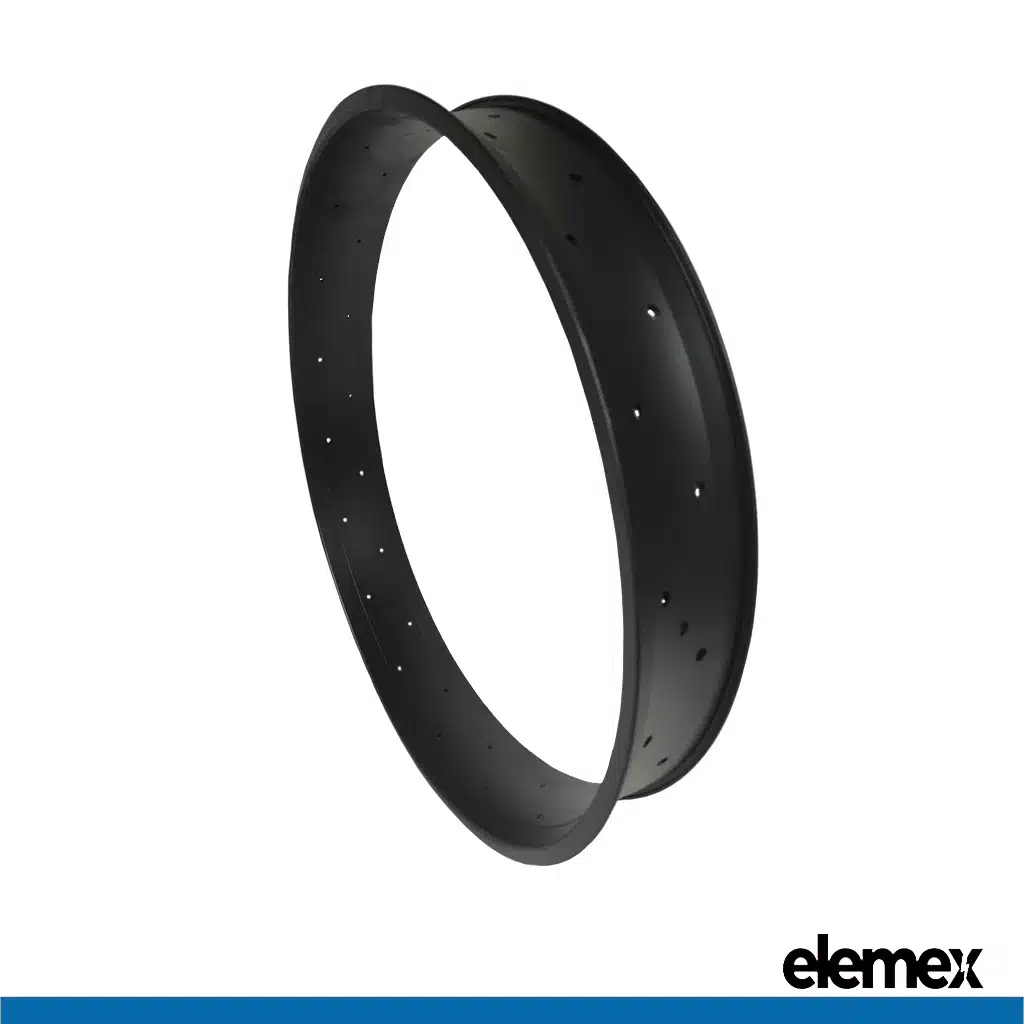

The Elemex P73D Alloy Fat Bike Rim is a high-performance wheel component designed specifically for fat bikes and snow bikes. Crafted from premium 6061 aluminum alloy, it offers an excellent strength-to-weight ratio, high durability, and corrosion resistance, making it ideal for rugged terrain and extreme weather conditions.
Whether you’re powering through snow, sand, or rough off-road trails, this ultra-wide 26″ rim is built to deliver uncompromising stability and performance.
Rims Specifications
-
Material: Premium 6061 Aluminium Alloy
-
Construction: Double Wall for maximum durability
-
Size: 26″
-
Internal Width: 73 mm (suitable for 3.5″ – 4″ wide tyres)
-
External Width: ~78 mm
-
Diameter: 559 mm (ISO)
-
Brake Compatibility: V-Brake only
-
Spoke Holes: 36H
- Spokes Length: 162mm-220mm
- Aperture: 12G
-
Tube Compatibility: Designed for use with inner tubes
Spokes Specifications:
| Motor Power | Rim Size | Spoke Length (mm) | Spoke Size |
|---|---|---|---|
| 250W | 26″ Rim | 214 | 12G |
| 250W | 26″ Fat Rim | 220 | 12G |
| 250W | 27.5″ Rim | 227/228 | 12G |
| 250W | 29″ Rim | 241 / 242 | 12G |
| 750W | 26″ Rim | 168 | 12G |
| 750W | 26″ Fat Rim | 162 | 12G |
| 750W | 27.5″ Rim | 182 | 12G |
| 750W | 29″ Rim | 198 | 12G |
| 1500W | 26″ Rim | 169 | 12G |
| 1500W | 26″ Fat Rim | 162 | 12G |
| 1500W | 27.5″ Rim | 182 | 12G |
| 1500W | 29″ Rim | 198 | 12G |
| 2000W | 26″ Rim | 169 | 12G |
| 2000W | 26″ Fat Rim | 162 | 12G |
| 2000W | 27.5″ Rim | 182 | 12G |
| 2000W | 29″ Rim | 198 | 12G |
| 3000W | 26″ Rim | 169 / 170 | 12G |
| 3000W | 26″ Fat Rim | 162 | 12G |
| 3000W | 27.5″ Rim | 182 / 183 | 12G |
| 3000W | 29″ Rim | 198 / 199 | 12G |
| 5000W | 17″ Rim | 90 / 91 | 10G |
| 5000W | 19″ Rim | 116 / 117 | 10G |
| 5000W | 26″ Rim | 159 / 160 | 10G |
| 5000W | 27.5″ Rim | 169 / 170 | 10G |
| 5000W | 29″ Rim | 188 / 189 | 10G |
Package Includes
-
1× Aluminium Alloy Double Wall Snow Bike Rim [Select according to your motor power]
-
1× Set of 36 Durable Spokes and Nuts
Ride Harder, Go Farther
The Ultra-Wide 26″ Alloy Fat Snow Bike Rim is built for snow, sand, and power. Tough, bold, and ready to roll with fat tires and serious force, it’s the ideal choice for adventurous riders who demand strength and performance in every ride.
