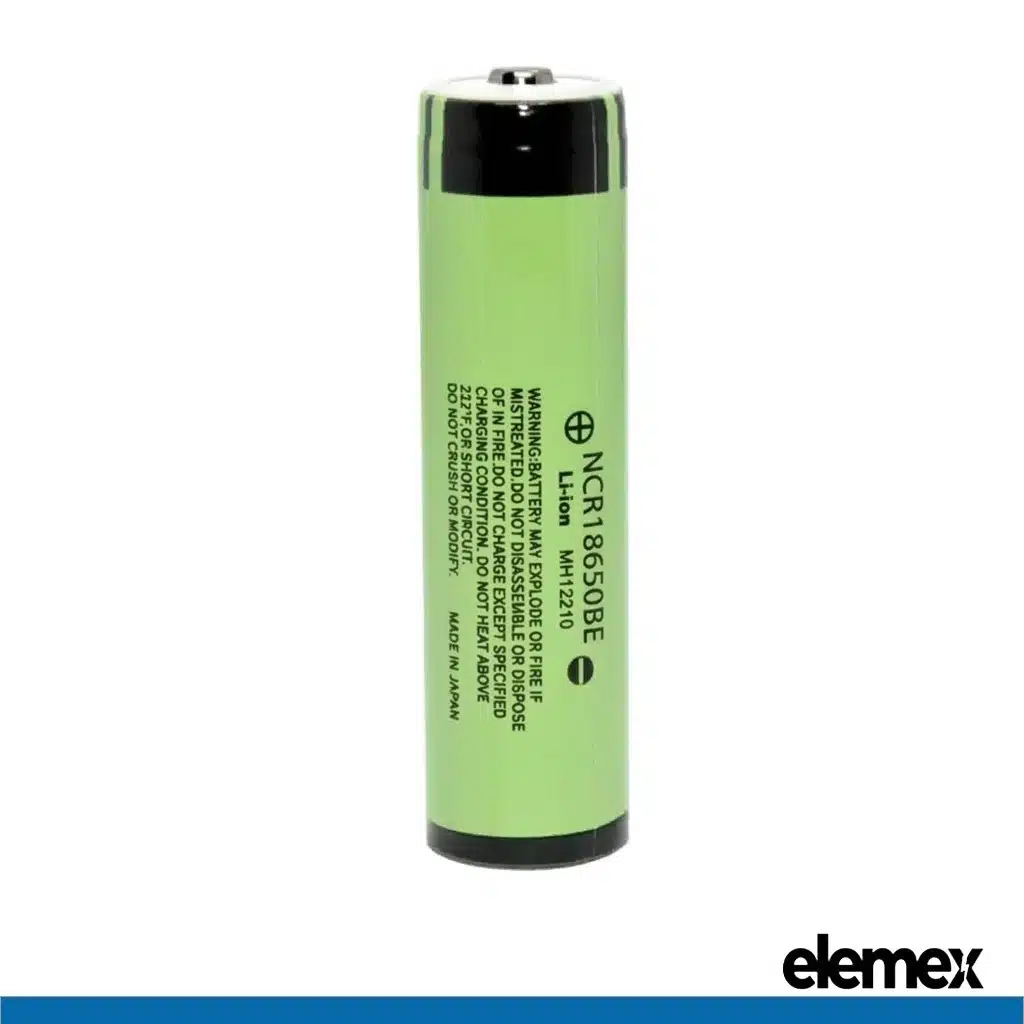

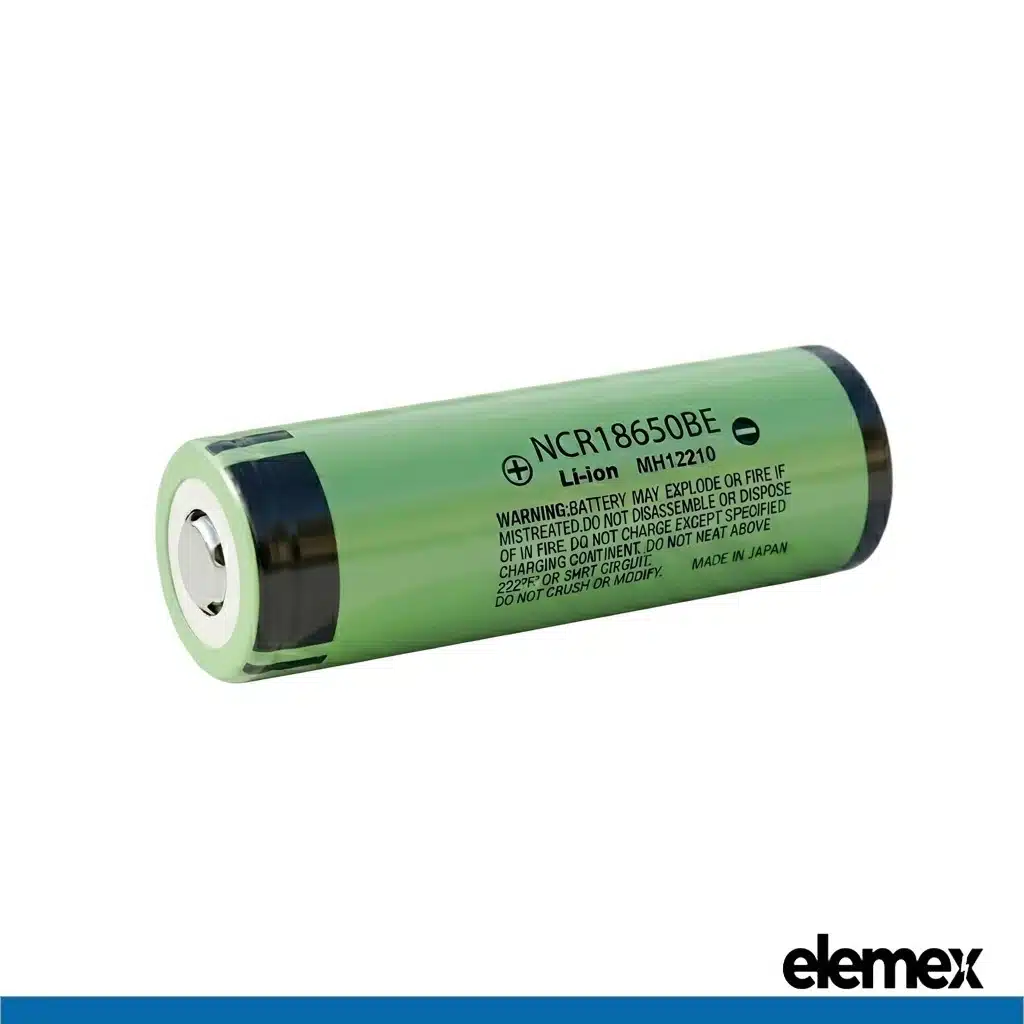

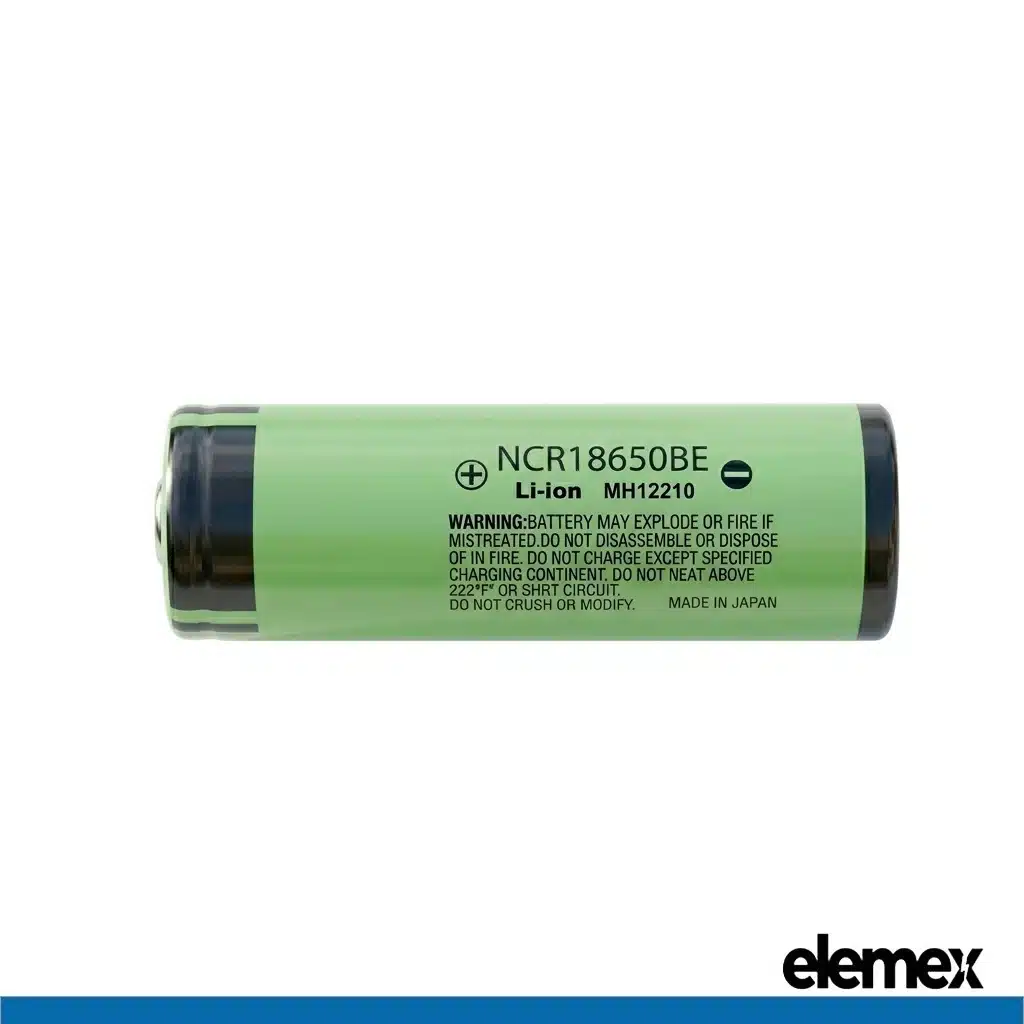

Panasonic NCR18650BE 3200mAh Rechargeable Li-ion Battery (Protected)

NCR18650BE 3200mAh Protected Panasonic Li-ion 3.7V Battery (Genuine)

+Free Carry Case

What type of 18650 battery to choose?

Panasonic NCR18650BE Battery is available in THREE following models/sizes:

Flat Top (65mm~ Long) | Button Top (67mm~ Long) | PROTECTED Button Top (70mm~ Long) NCR18650BE Variations – Flat Top vs Button Top vs Protected version

Please carefully measure your device’s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with NCR18650BE Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Cell Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Note: Unlike several generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.

Product Features:

• Capacity (Ah): Max (3200 mAh), Min (3000 mAh)
• Nominal Voltage (V): 3.6 ~ 3.7 V
• Charging Voltage (V): 4.2 V
• Charging Current (Ah): 0.9 Ah (900 mAh)
• Cut-off Voltage (V): 2.5 V
• Energy (Wh): 11.5 Wh
• Max. Discharge Rate (A): (Recommended Max current 3.6 A)
• Pulse Current (Ah): 8 Ah (5-6 sec.)
• Weight (g): 48 g (+/- 0.5 g)
• Model: NCR18650BE
• Made in Japan

Package Includes:

• Genuine Panasonic NCR18650BE Protected Battery [Please Select the quantity]
• Battery Carry Case.


  ---

Panasonic NCR18650BE Discharge Table

Warning:

• Never wholly discharge a Li-ion battery (below 2.5V under load).
• Charge fully to 4.2V before first use.
• Never use force to install (insert) a Li-ion battery.
• Do not use old and new battery cells together.
• Use only a high-quality battery charger.
• Do not remove the heat shrink/wrapping cover (it must be used as it is).
• Do not expose to heat, NOT penetrate or modify.
• Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
• Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
• Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
• Do not charge unattended nor overcharge unprotected cells.
