45A Sabvoton Smart Sine Wave Programmable Motor Controller with UKC1 Display

Premium Sabvoton Motor Controller and UKC1 Display for eBikes Scooters and other Electric Vehicles

1 Year Warranty

eBike 45A Sabvoton Controller

Product Overview:

Take your electric vehicle to the next level with the 45A Sabvoton Controller. The ultimate solution for high-power eBike, eScooter, and EV builds. Designed for performance and efficiency, this controller is perfect for enthusiasts and professionals alike.

key Features:

High Power Output:

• Supports motors up to 1500W, providing outstanding acceleration and hill-climbing capabilities.

Wide Voltage Compatibility:

• Available in 36V, 48V, 52V, 60V, and 72V variants to match your setup.

Programmable Customization:

• Fine-tune performance to your needs using the intuitive Sabvoton software for PC or mobile.

Smooth & Efficient Operation:

• High efficiency (>90%) for maximum range and minimal heat production.

Advanced Regenerative Braking:

• Save energy with intelligent regenerative braking technology.

Durable and Compact Design:

• Built with robust aluminum alloy housing and advanced cooling to handle demanding conditions.

Safety at the Core:

• Equipped with overcurrent, overvoltage, and short-circuit protection for safe, reliable operation.
  •

Product Specifications:

• Brand: Sabvoton
• Voltage Range: 36/48V/52V/60V/72V
• Maximum Peak Current: 45A
• Mosfets: 12 high-efficiency MOSFETs for heat management and reliability
• Regenerative Brake: Supported
• Display Communication Protocol: UART, Bluetooth
• Colour: Black
• Dimensions: Approx. 164mm x 120mm x 62mm
• Weight: Approx. 1.1kg

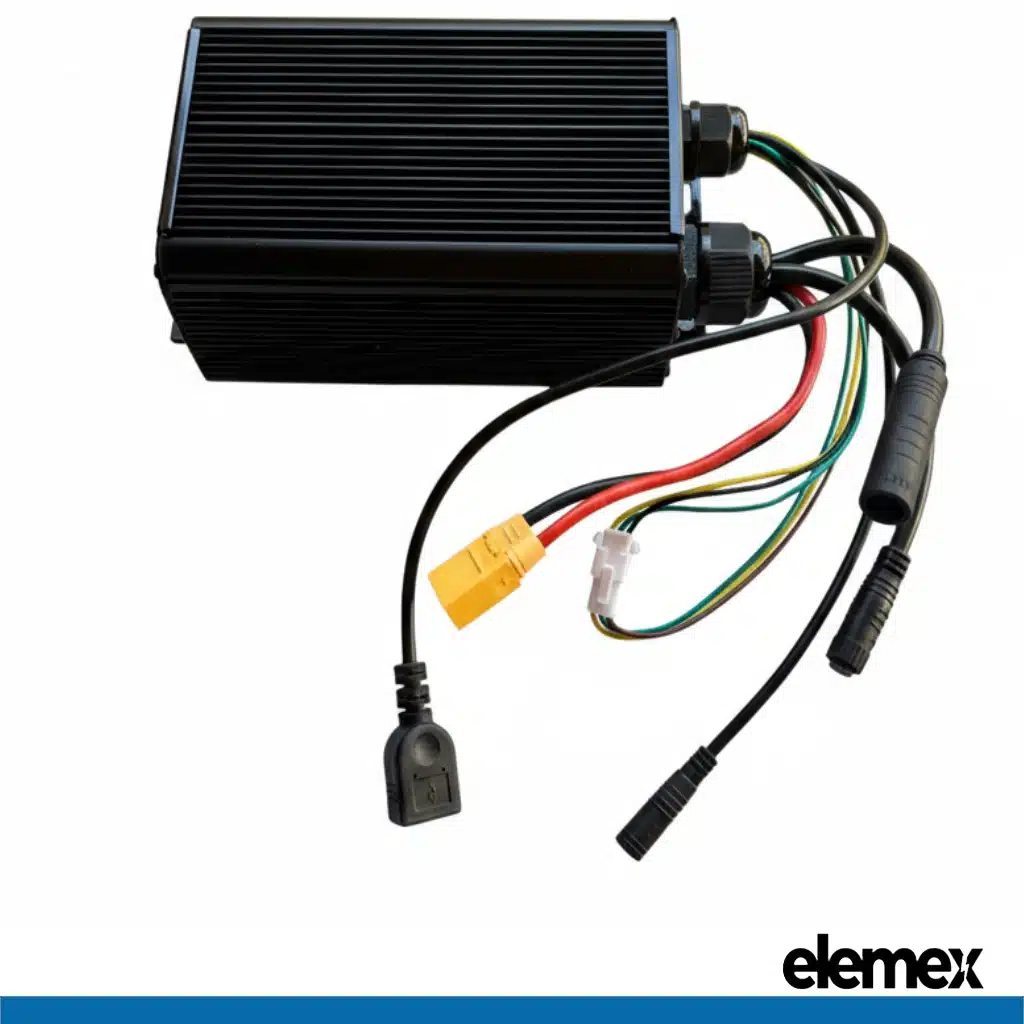

• Connection: Waterproof Cable for PAS, Battery Wire (XT90 Male Connector), Bluetooth Connector, Bluetooth Switch, Motor Hall Sensor Connection and Motor Phase Cable
• Waterproof Grade: IP65
• Warranty: 1 Year

Applications

• High-performance eBikes
• Custom-built electric scooters
• DIY electric motorcycles and other EV projects

Package Includes:

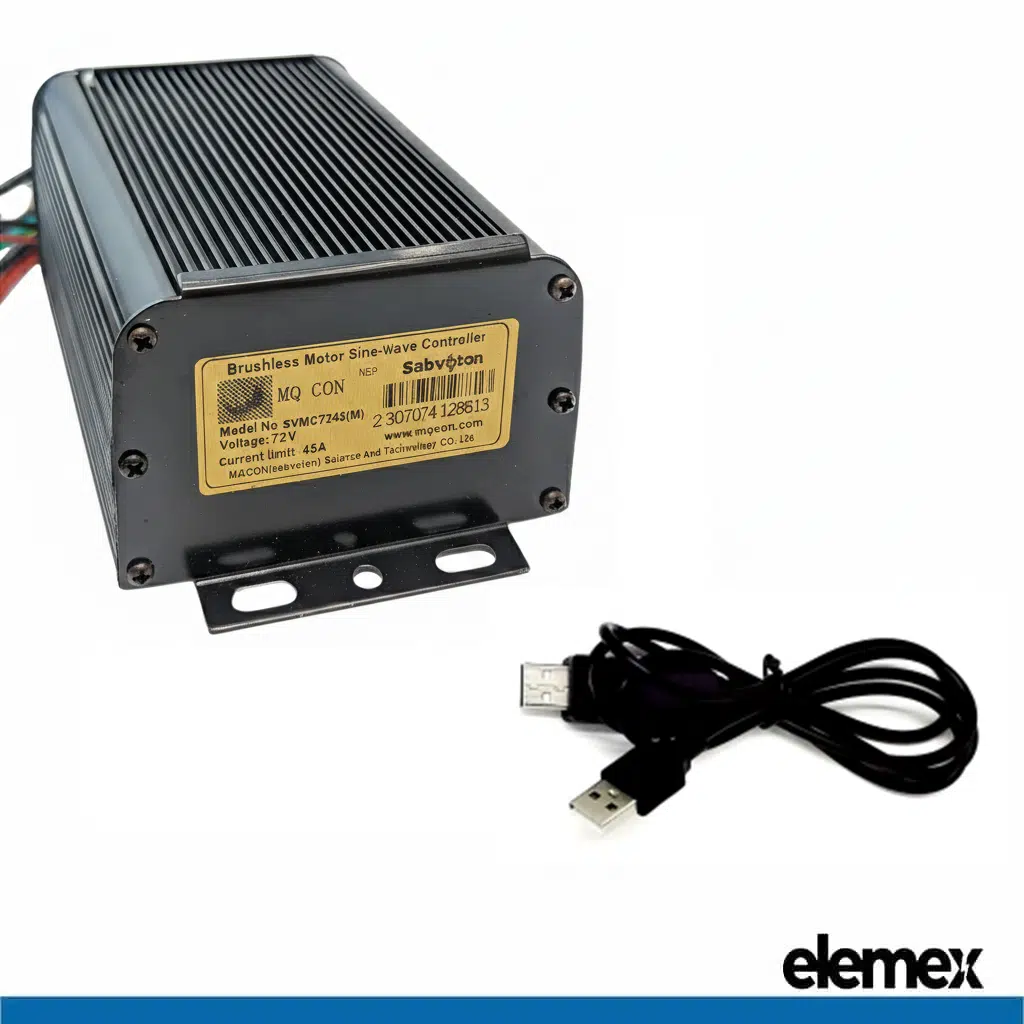

• 1x 45A Sabvoton Controller
• 1x USB Programming Cable
• Bluetooth Device (Optional)
• Colour UKC1 Display (Optional)
• [Please Select  your preferred package option]
