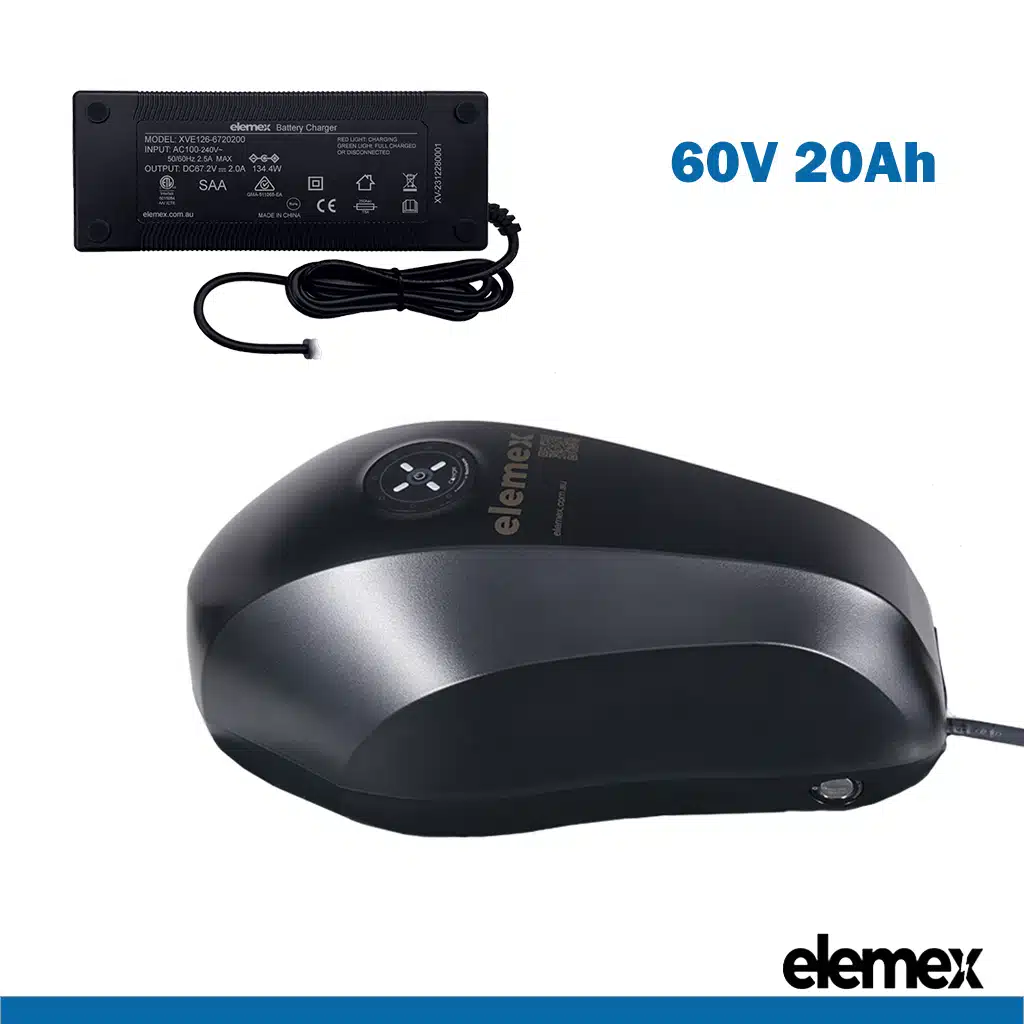

60V Fuel Tank eBike Battery 20Ah Pack for up to 3000W Motors + Premium Charger

eBike 60V Battery Fuel Tank 20Ah Lithium Pack + Premium Charger

Elemex 60V 20Ah Fuel Tank eBike Battery is suitable for up to 3000W Motors

Genuine LG Cells

+1 Year Warranty

*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS LATE-SEPTEMBER-2025.***

• Brand: Elemex
• Cell Type: 21700 4800mAh Lithium-ion
• Cell Brand: LG (Genuine) – LG M48A Cell
• Nominal Voltage: 60V
• Array Mode: 16s4p
• Max Constant Discharge Current: 50A
• Max Continuous Charge Current: 4A
• Peak Discharge Current: 150A (3-5 Seconds)
• Way of charge: CC/CV
• Rated Capacity: 19.2Ah
• Charge Cut off Voltage: 67.2V
• Discharge Cut off Voltage: 48V ~ 51.2V
• Energy: 1137 Wh
• Charge/Discharge Temperature: -15 ~ 55 C
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging time: Approx. 5 to 10 hours
• Charger Compatibility: Elemex-approved chargers
• BMS: 50A
• Output Connector: XT90 Female
• Housing material: ABS Plastic
• Case Colour: Black
• Cycle life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)
• Weight: 6.5kg~

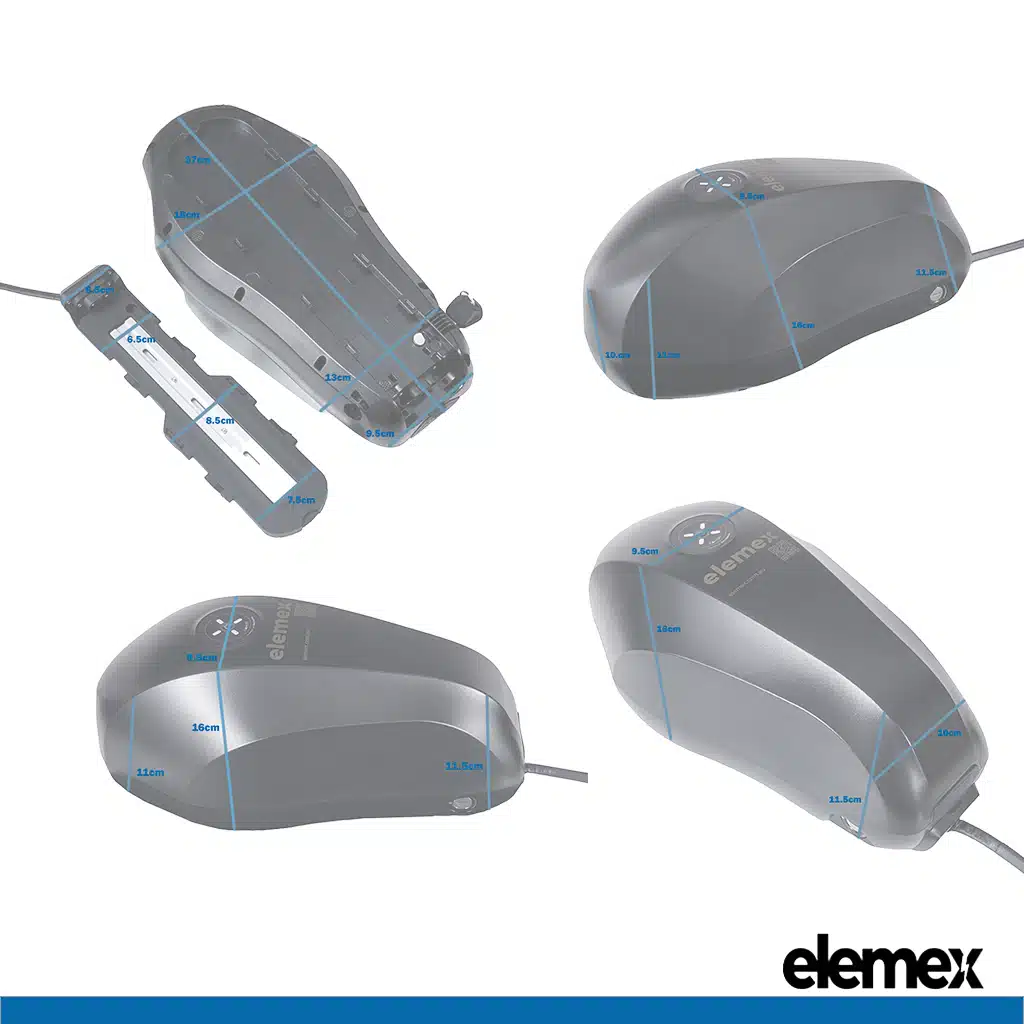

• Dimensions: Approx. 381mm x 167mm x 183mm~
• Warranty: 1 Year

• Brand: Elemex
• Input: AC 100-240V∼ 50/60Hz
• Output: DC 67.2V 2Ah (134.4 W)
• Compatible Battery: 60V Lithium Li-ion
• Certifications: SAA, GMA, CE, ETV
• Warranty: 1 Year

60V Battery Charger

• When purchasing an Elemex battery, always ensure that voltages are paired correctly (e.g., a 60V motor must be paired with a 60V battery). Any controllers that are burnt out due to reprogramming or incompatible pairing are not covered by warranty. Please check the dimensions of this item before placing your order. If you are unsure of which battery to pair with your bike, please do not hesitate to contact us for more information.

Package Includes

• 1x Elemex 60V 20Ah Fuel Tank eBike Lithium Battery Pack (Genuine LG Cells)
• 1x Elemex 67.2V Premium Lithium Battery Charger
• 1x Adapter Cable (XT90 Male) to (XT60 Female)
• 1x User Manual
• Warranty Certificate

NSW Safety Information (Required by Law)

This product complies with the NSW Information Standard for e-micromobility vehicles, effective 1 August 2025.

Usage Laws:

• Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes, and bicycle paths.

Serial Number:

• Each battery includes a unique serial number printed on the product for traceability. Serial numbers are recorded and assigned to each buyer upon shipment.

Electrical and Fire Safety:

• Only use compatible batteries and chargers supplied or certified by Elemex.

• Ensure batteries and chargers used are compatible with this vehicle.

• Charge only in a dry, well-ventilated area, away from flammable materials.

• Do not leave the battery charging unattended or overnight.

• Avoid high-risk charging practices, including charging on flammable surfaces, using uncertified chargers, or charging damaged/swollen batteries.

• Modifying the vehicle or battery may cause fire.

• Warning signs: smoke, sparks, unusual heat, or swelling.

• If battery starts smoking or sparking, call 000 immediately.

User Responsibility & Charger Warning:

• Users must read and understand the Elemex Battery User Manual before use or charging.

• Lithium batteries must only be charged with Elemex-authorised, certified Li-ion chargers.

• Using aftermarket or uncertified chargers may cause performance issues, reduce battery life, or create safety risks.

• Use of uncertified chargers voids the warranty; any resulting damage is the user’s responsibility.

Safe Storage:

• Store in a cool, dry place (15°C – 25°C).

• Do not expose to prolonged heat or water.

• Keep out of reach of children.

Disposal:

• If battery is detachable, separate it safely and dispose of according to local recycling laws.

• If not detachable, follow local laws for vehicle disposal.

• Do not dispose of batteries or vehicles in household bins.

Additional Safety:

• Do not use the vehicle if it contains a damaged battery.

Emergency Instructions:

• If battery emits smoke or fire, move it outdoors if safe.

• Use a Class D fire extinguisher or sand.

• Do not use water on lithium battery fires.
