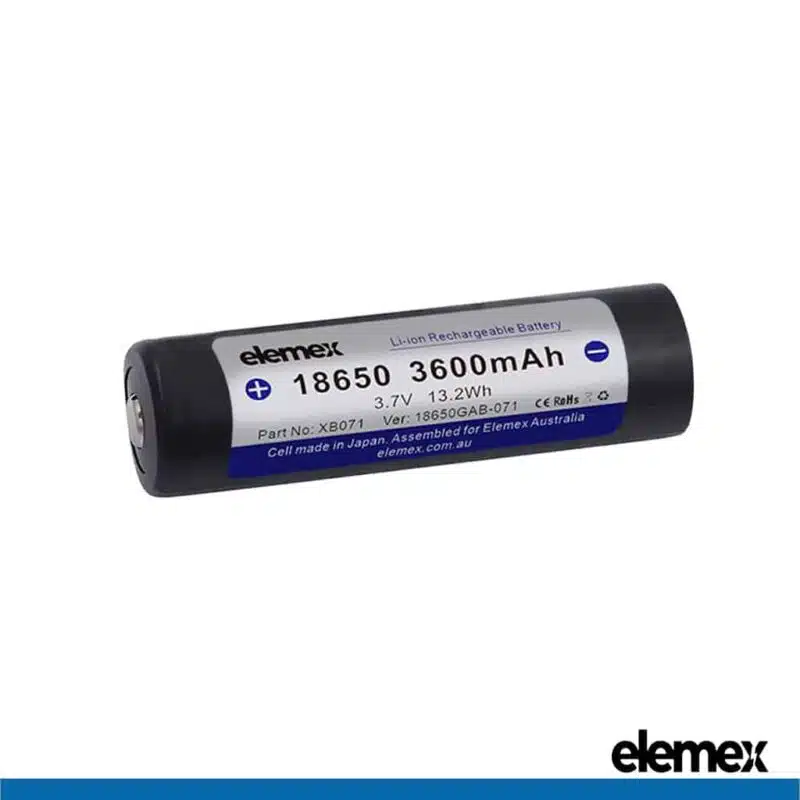

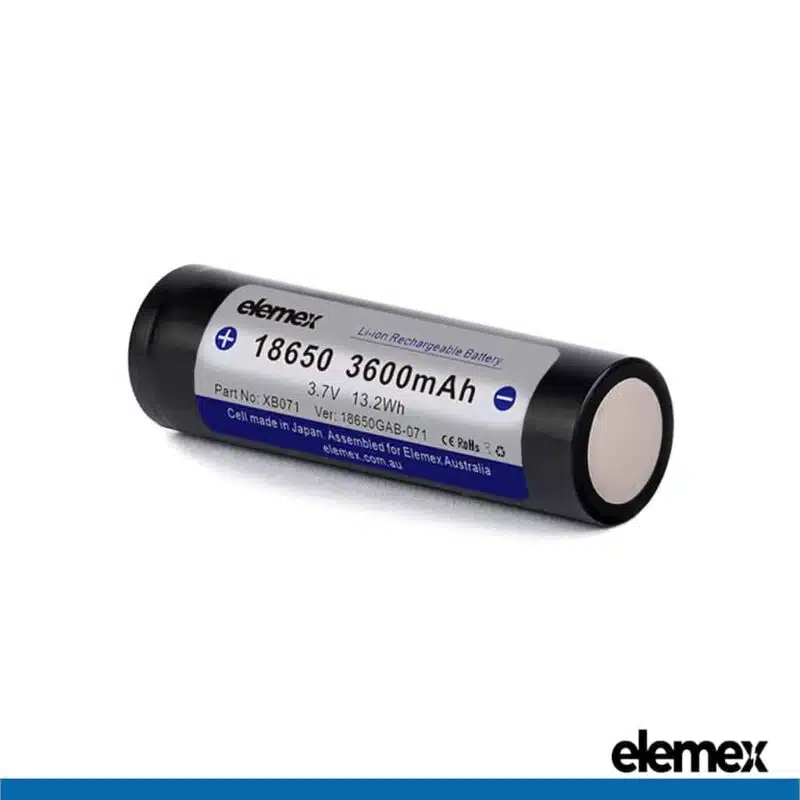

Elemex 18650 Battery 3600mAh Panasonic GAB Li-ion 3.7V

$18.99$134.99 (inc. GST)

Elemex Panasonic NCR18650GAB 3600mAh 3.7V Li-ion Lithium Premium Rechargeable Battery – Made in Japan

(3 customer reviews)
Add to Cart
Elemex 18650 3600mAh Panasonic GAB Button Top - Elemex
Elemex 18650 Battery 3600mAh Panasonic GAB Li-ion 3.7V
$18.99$134.99 (inc. GST)

Free standard shipping on all orders (Australia Wide)

Express shipping costs may increase for heavy products or large orders. (Standard shipping remains free.)
Exact shipping can be calculated on the view cart page.
*Conditions apply, see shipping tab.

SSL Secure Checkout

Trust-Elemex Pty Ltd

Elemex 18650 3600mAh Panasonic GAB Button Top - Elemex
Elemex 18650 Battery 3600mAh Panasonic GAB Li-ion 3.7V
$18.99$134.99 (inc. GST)
Request a call back
Please enable JavaScript in your browser to complete this form.

18650 Battery Button Top 3600mAh Elemex Panasonic Li-ion 3.7V (Genuine)ย

18650 Battery ButtonTop + Free Battery Carry Caseย

Panasonic 18650 3600mAh Cell Made in Japan

Elemex 18650 Battery Button Top 3600mAh Panasonic GAB - Elemex18650 Battery is available in THREE following models/sizes:

Flat Top (65mm~ Long) | Button Top (67mm~ Long) | PROTECTED Button Top (70mm~ Long)

18650 Variations - Flat Top vs Button Top vs Protected version

Three Types of 18650 Batteries

Please carefully measure your deviceโ€™s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Battery Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.

Panasonic NCR18650GA 3500mAh 3.7v FLAT TOP Graph Test Result Battery - Elemex18650 Batteries

Product Features:ย

  • Capacity (Ah): 3.6 Ah Max (3620mAh) Min (3520mAh)
  • Nominal Voltage (V): 3.6 ~ 3.7 V
  • Charging Voltage (V): 4.2 V
  • Charging Current (Ah): 1.47 Ah (1470 mAh)
  • Cut-off Voltage (V): 2.5 V
  • Energy (Wh): 13.2 Wh
  • Energy Density (Wh/L): 745 Wh/L
  • Discharge rate (C): C Rating 2.5C (Recommended Max current 10 Amp)
  • Pulse current (Ah): (5-6 sec.): 15 Ah
  • Weight (g): 48 g (+/- 0.5 g)
  • Diameter (mm): 18.1 mm (+/- 0.3 mm
  • Height (mm): 67.0 mm (+/- 0.5 mm)
  • PCB: No
  • Top (positive side): Button Top
  • Model: Elemex NCR18650 GAB (NCR18650GA Cell) new version-higher capacity
  • Assembled for Elemex Pty Ltd Australia (Cell Made in Japan)

Package Includes:ย

  • Genuine Elemex (Panasonic) NCR18650GAB 3600mAh Button Top Battery [please select the quantity]
  • Battery Carry Case

Warning:ย

  • Never fully discharge a Li-ion battery (below 2.5V under load).
  • Charge fully to 4.2V before first use.
  • Never use force to install (insert) a Li-ion battery.
  • Do not use old and new battery cells together.
  • Use only a high-quality battery charger.
  • Do not remove the heat shrink/wrapping cover (it must be used as it is).
  • Do not expose to heat, NOT penetrate or modify.
  • Do not short (connect) positive (top) and negative (bottom) battery terminals (contacts).
  • Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
  • Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
  • Do not charge unattended nor overcharge unprotected cells.
