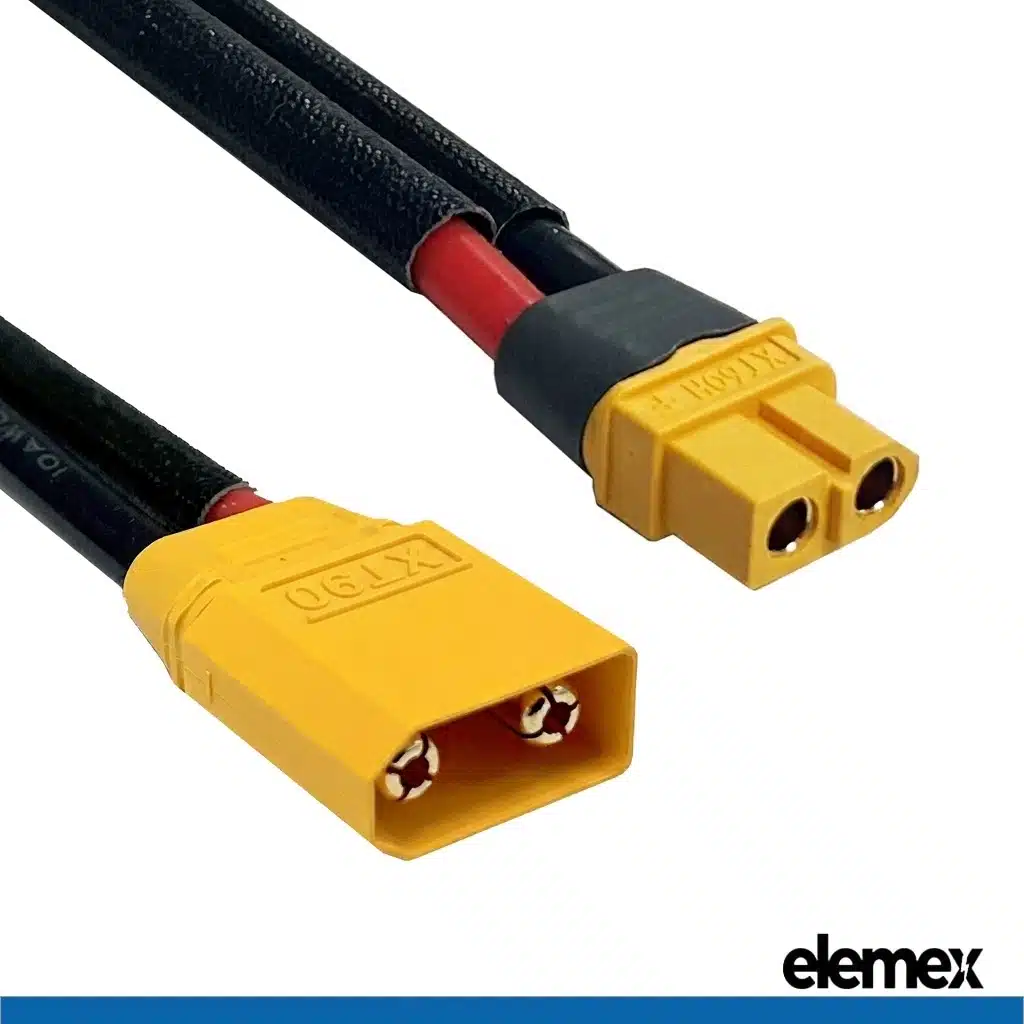

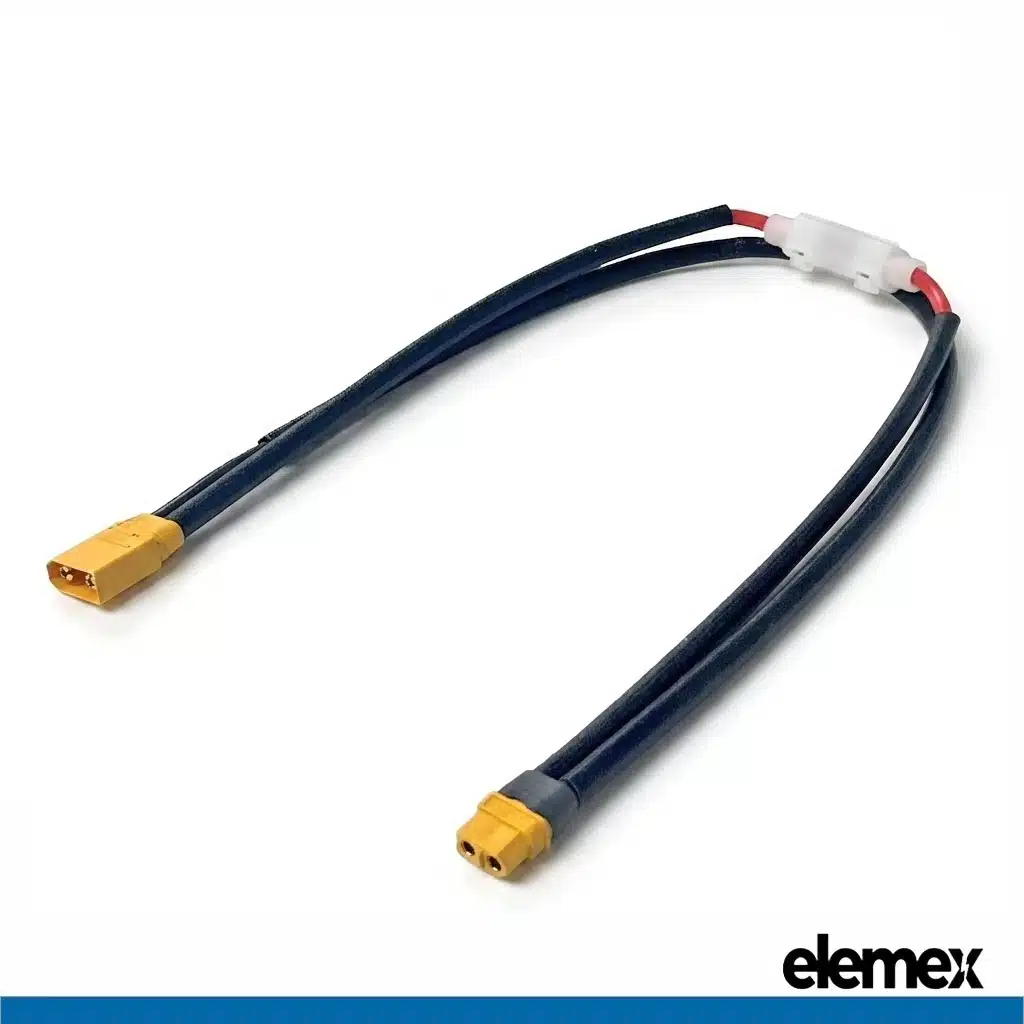

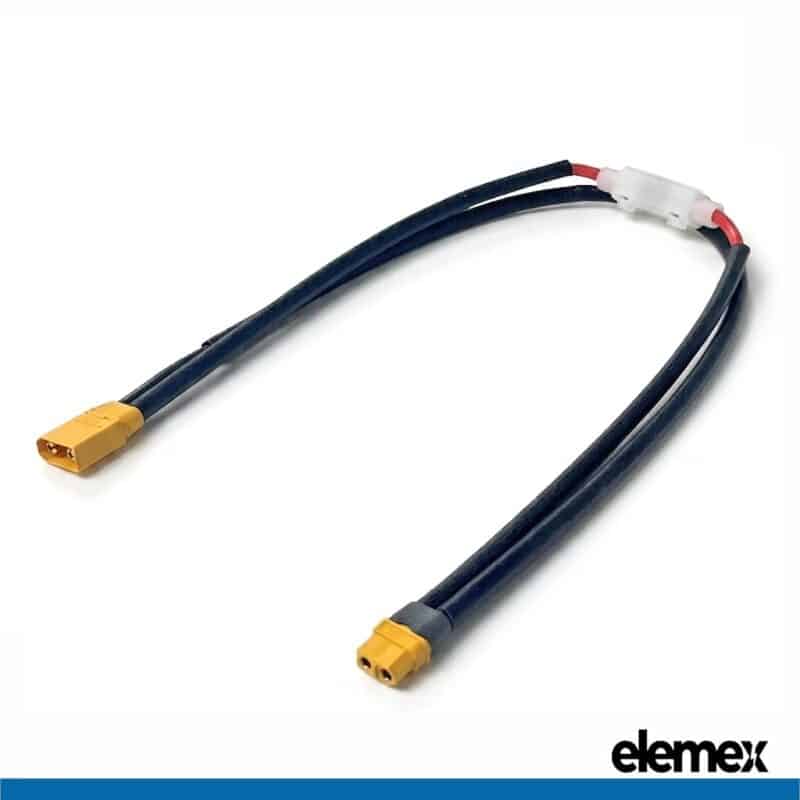

XT90 Male to XT60 Female Adapter Cable

XT90 Male to XT60 Connector Female Cable for eBike Drone DIY

Premium XT90 to XT60 Cable

Product Overview

This XT90 Connector Male to XT60 Connector Female Cable is a high-quality power adapter designed to adapt connections safely and efficiently. It allows you to connect a battery with an XT90 male plug to a device, controller, ESC, or charger that uses an XT60 female connector, without the need for soldering or modification.

Manufactured with a high-temperature, flame-resistant nylon housing and gold-plated copper contacts, this connector ensures a secure, low-resistance connection for reliable power transfer and long service life.

Ideal for eBikes, RC models, drones, EV projects, and DIY power systems where XT60 connection flexibility is required.

Product Specifications

• Connector Type: XT90 Male to XT60 Female

• Housing Material: Nylon (flame-resistant)

• Contact Material: Gold-plated copper

• Maximum Continuous Current: Up to 60A

• Voltage Rating: Up to 500V DC

• Contact Resistance: < 0.5mΩ

• Operating Temperature: -20°C to +120°C

Package Includes

• 1 × XT90 Male to XT60 Female Connector Cable
