Solder Tabbed 18350 Battery 1200mAh Li-ion 3.7V Rechargeable High Drain
Elemex Lithium ion 18350 Rechargeable Battery High Drain – 10A Discharge Rate – (Tabbed Version)
Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.
*** PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. the EXPECTED DELIVERY IS MID-NOVEMBER-2024.***
Solder Tabbed 18350 battery 1200mAh (U-Type)

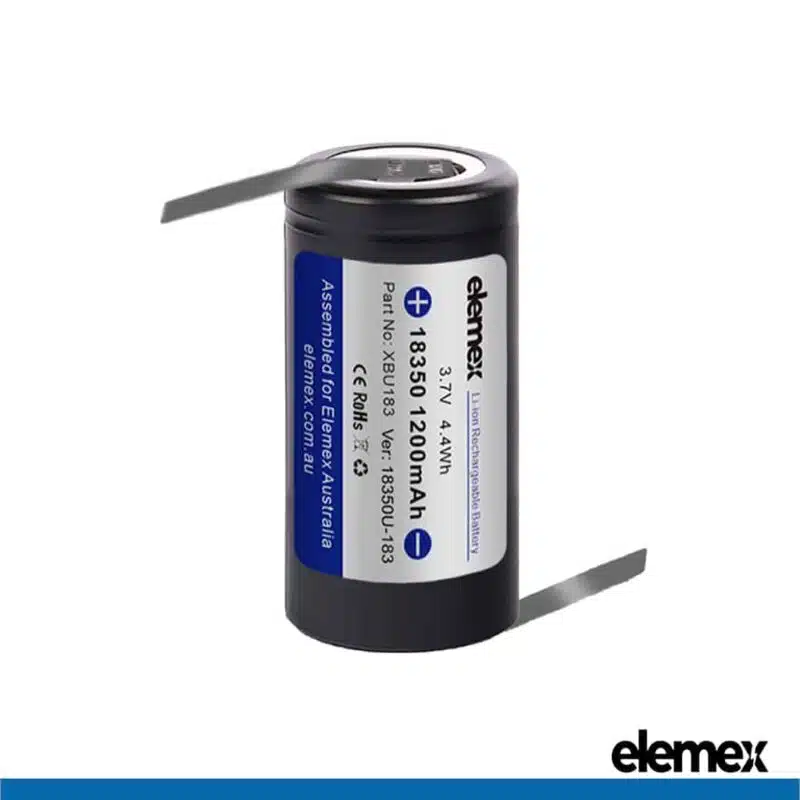

Solder Tabbed 18350 battery 1200mAh (Z-Type)
Product Features:
- Nominal Capacity (Ah): 1.2 Ah Max (1200mAh) Min (1100mAh)
- Voltage (V): 3.7 V
- Charging Voltage (V): 4.2 V
- Charging Current (Ah): 0.22 Ah (220mAh)
- Rapid Charging Current (Ah): 1.1 Ah (1100mAh)
- Cut-off Voltage (V): 2.5 V
- Rapid Charging Time (hr): 1 Hour
- Energy: 4.4 Wh
- Max. Discharge rate (Ah): 10 A Continuous (Recommended)
- Pulse current (Ah): (3 sec.) 15 Ah
- Impedance: 25 milli-Ohms @1KHz
- Weight (g): 25 g (Max)
- Diameter (mm): 18 mm (+/- 0.07 mm)
- Height (mm): 35 mm (+/- 0.9 mm)
- PCB: No
- Top (positive side): Flat top
- Model: XBU183 Tabbed Version
- Made in China
Package Includes:
- Premium Elemex 18350 Rechargeable Li-ion Battery with Solder Tabs ( U-Type OR Z-Type) [Please Select the Battery Type]
Warning:
- Never wholly discharge a Li-ion battery (below 2.5V under load).
- Charge fully to 4.2V before first use.
- Never use force to install (insert) a Li-ion battery.
- Do not use old and new battery cells together.
- Use only a high-quality battery charger.
- Do not remove the heat shrink/wrapping cover (it must be used as it is).
- Do not expose to heat, NOT penetrate or modify.
- Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
- Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
- Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
- Do not charge unattended nor overcharge unprotected cells.
