12V Wheelchair Battery 20Ah Lithium Scooter Mobility Golf Buggy + Charger

Premium 12V Lithium Battery Pack 20Ah for eBike Wheelchair + Charger

12V Lithium Battery Pack 20Ah Suitable for Buggy Mobility Scooter eBike Wheelchair with BMS

Genuine LG Cells

+1 Year Warranty

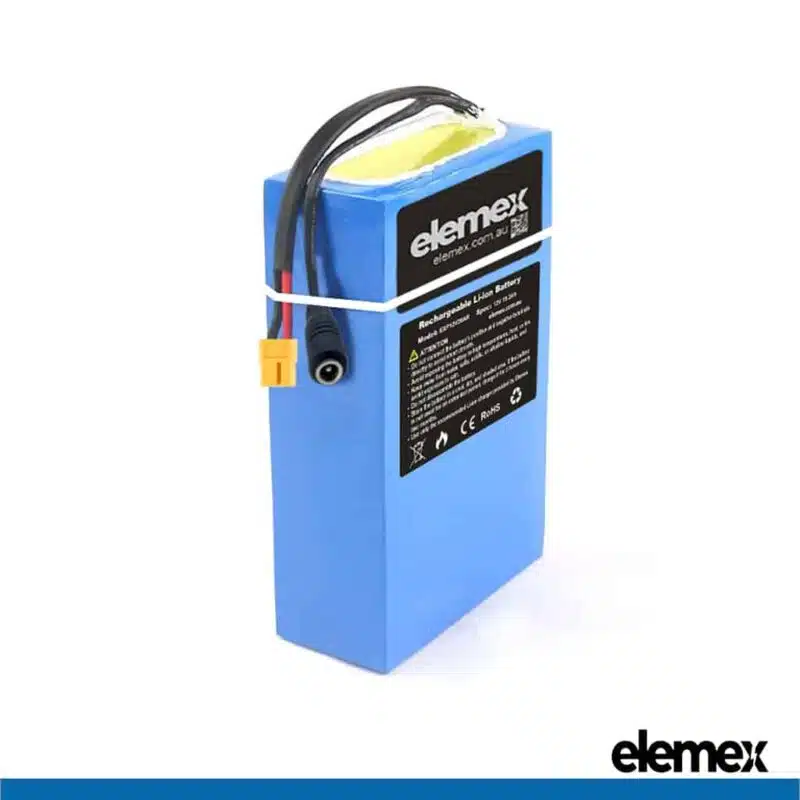

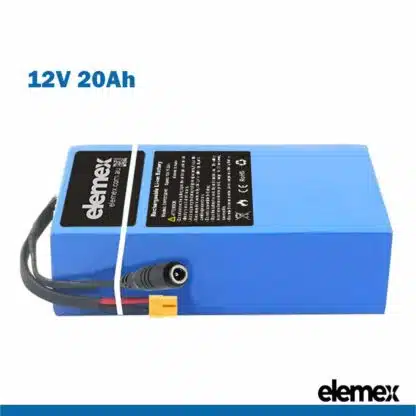

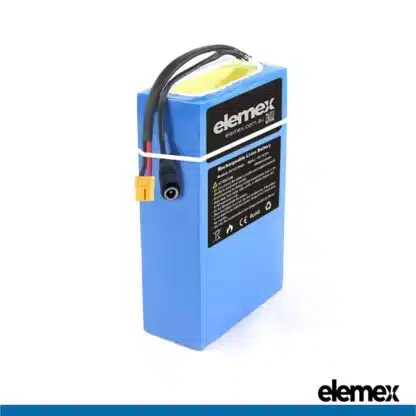

12V Lithium Battery 20Ah

Product Overview:

The 12V Lithium Battery 20Ah Lithium Pack is a high-performance power solution ideal for golf buggies, eBikes, scooters, and mobility devices. Built with genuine LG cells, this battery pack guarantees long-lasting performance and reliability.

Battery Specifications:

• Brand: Elemex
• Battery Type: 21700 4800mAh Lithium-ion Battery
• Cell Brand: LG (Genuine) – LG M48A Cell
• Array Mode: 3s4p
• Nominal Voltage: 12V
• Rated Capacity: 19.2Ah
• Energy: 213W
• Maximum Constant Discharge Current: 40A
• Peak Current: 100A
• Cut-off Voltage: 9.6V
• Charging Voltage: 16.8V
• Maximum Charge Current: 5A
• Charging Method: CC/CV
• Charge/Discharge Temperature: -20°C to 70°C
• BMS: Yes
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging Time: Approx. 4 to 10 Hours
• Charging Compatibility: Elemex-approved Chargers

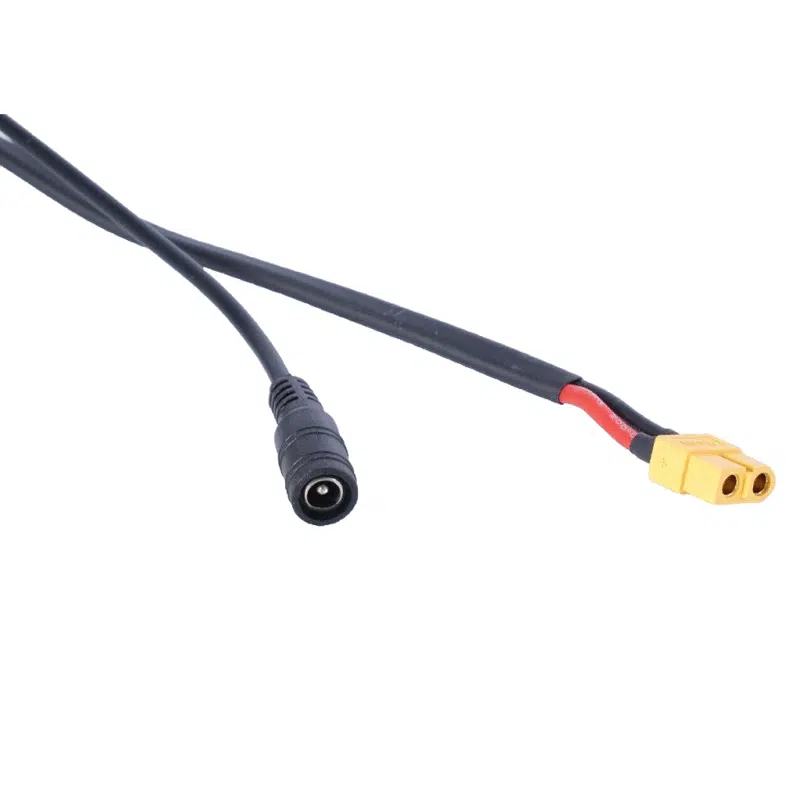

• Output Connector: XT60 Female
• Battery Colour: Blue
• Charging Connector: 5.5 x 2.1mm
• Cycle Life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)
• Battery Weight: 1.11 kg

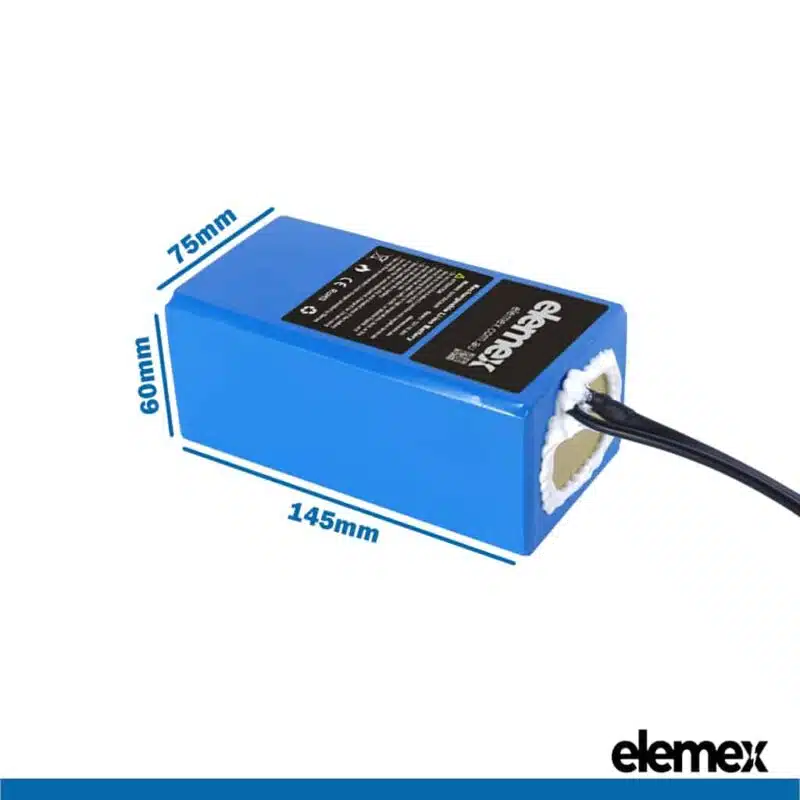

• Battery Dimensions: 145mm x 75mm x 60mm (without bag)
• Safety Certificates: CE, ROHS, MSDS, UN38.3, IP65
• Warranty: 1 Year

This 12V Rectangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

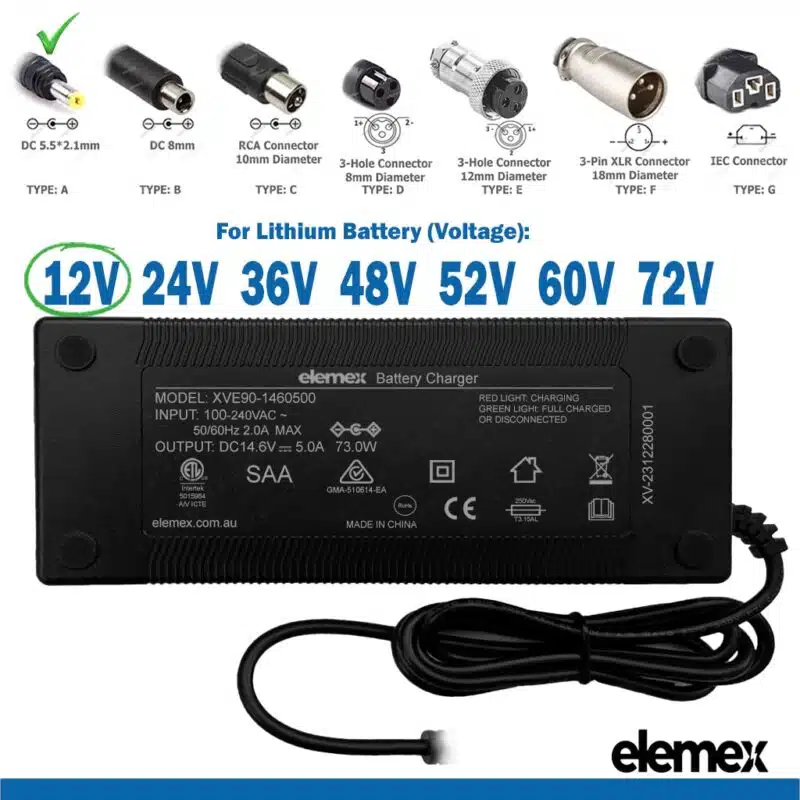

Charger Specifications:

• Brand: Elemex
• Input: AC 100-240V∼ 50/60Hz
• Output: DC 14.6V 5Ah (73W)
• Compatible Battery: 12V Lithium Li-ion
• Certifications: SAA, GMA, CE, ETV
• Warranty: 1 Year

Built with precision and meeting stringent Australian Standards, Elemex Battery Chargers are engineered to endure and excel in performance.

12V Battery Charger

Important Information:

Compatibility and Installation

• Ensure voltage pairing: A 12V motor must be paired with a 12V battery.
• Controllers burnt out due to reprogramming or incompatible pairing are not covered by the warranty.
• For dual suspension bikes or limited frame space, consider using two smaller capacity batteries.

Precautions

• Check dimensions before ordering.
• If uncertain about compatibility, contact us for assistance.

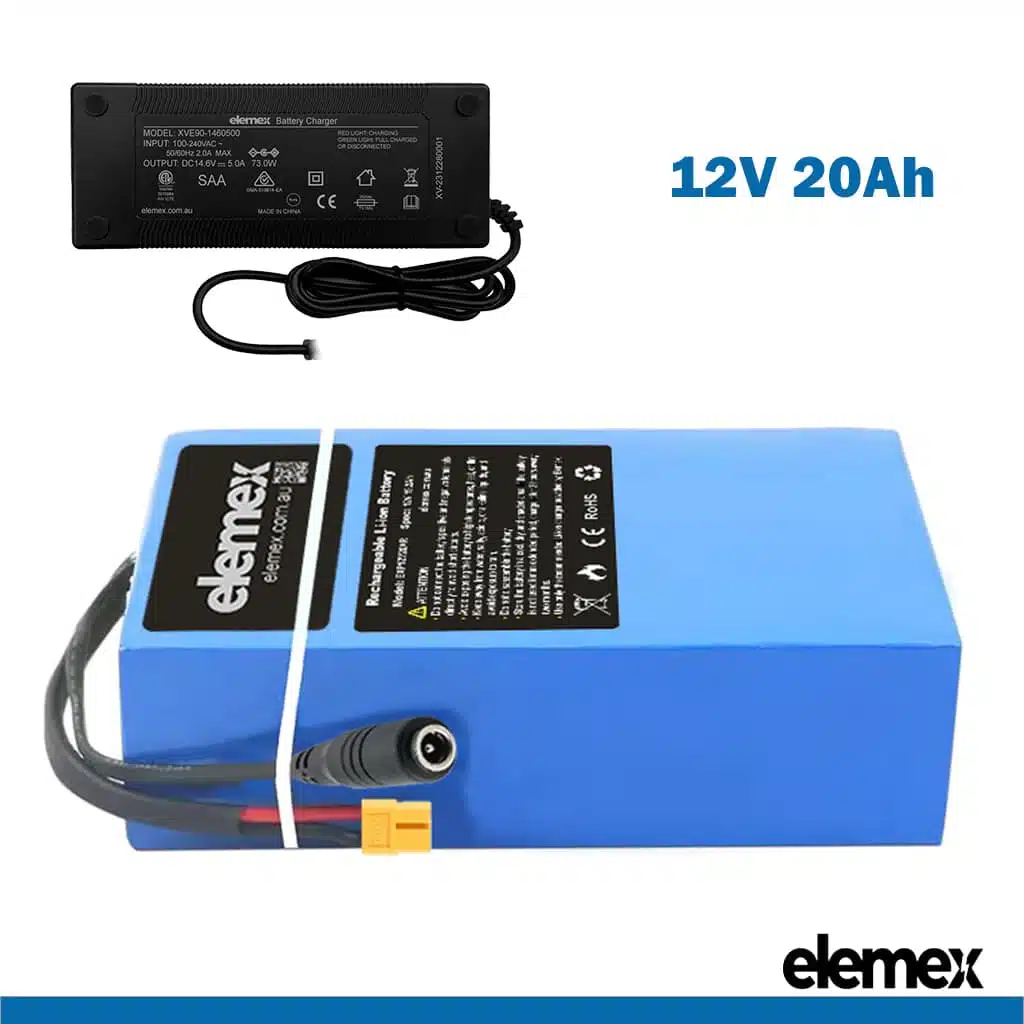

Package Includes:

• 1x Elemex 12V 20Ah Lithium Battery Pack (Genuine LG Cells)
• 1x Elemex 14.6V 5Ah Premium Lithium Battery Charger
• 1x Male XT60 Adapter
• 1x Warranty Certificate

Ensure your electric device has the power it needs with the Elemex 12V 20Ah Lithium Battery Pack. Order now and enjoy a reliable, high-capacity battery backed by a 1-year warranty!

Contact Us

If you have any questions about selecting the right battery for your scooter, eBike, or mobility device, please don’t hesitate to reach out to us for more information.

NSW Safety Information (Required by Law)

This product complies with the NSW Information Standard for e-micromobility vehicles, effective 1 August 2025.

Usage Laws:

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes, and bicycle paths.

Serial Number:

Each battery includes a unique serial number printed on the product for traceability. Serial numbers are recorded and assigned to each buyer upon shipment.

Electrical and Fire Safety:

• Only use compatible batteries and chargers supplied or certified by Elemex.

• Ensure batteries and chargers used are compatible with this vehicle.

• Charge only in a dry, well-ventilated area, away from flammable materials.

• Do not leave the battery charging unattended or overnight.

• Avoid high-risk charging practices, including charging on flammable surfaces, using uncertified chargers, or charging damaged/swollen batteries.

• Modifying the vehicle or battery may cause fire.

• Warning signs: smoke, sparks, unusual heat, or swelling.

• If battery starts smoking or sparking, call 000 immediately.

User Responsibility & Charger Warning:

• Users must read and understand the Elemex Battery User Manual before use or charging.

• Lithium batteries must only be charged with Elemex-authorised, certified Li-ion chargers.

• Using aftermarket or uncertified chargers may cause performance issues, reduce battery life, or create safety risks.

• Use of uncertified chargers voids the warranty; any resulting damage is the user’s responsibility.

Safe Storage:

• Store in a cool, dry place (15°C – 25°C).

• Do not expose to prolonged heat or water.

• Keep out of reach of children.

Disposal:

• If battery is detachable, separate it safely and dispose of according to local recycling laws.

• If not detachable, follow local laws for vehicle disposal.

• Do not dispose of batteries or vehicles in household bins.

Additional Safety:

• Do not use the vehicle if it contains a damaged battery.

Emergency Instructions:

• If battery emits smoke or fire, move it outdoors if safe.

• Use a Class D fire extinguisher or sand.

• Do not use water on lithium battery fires.
