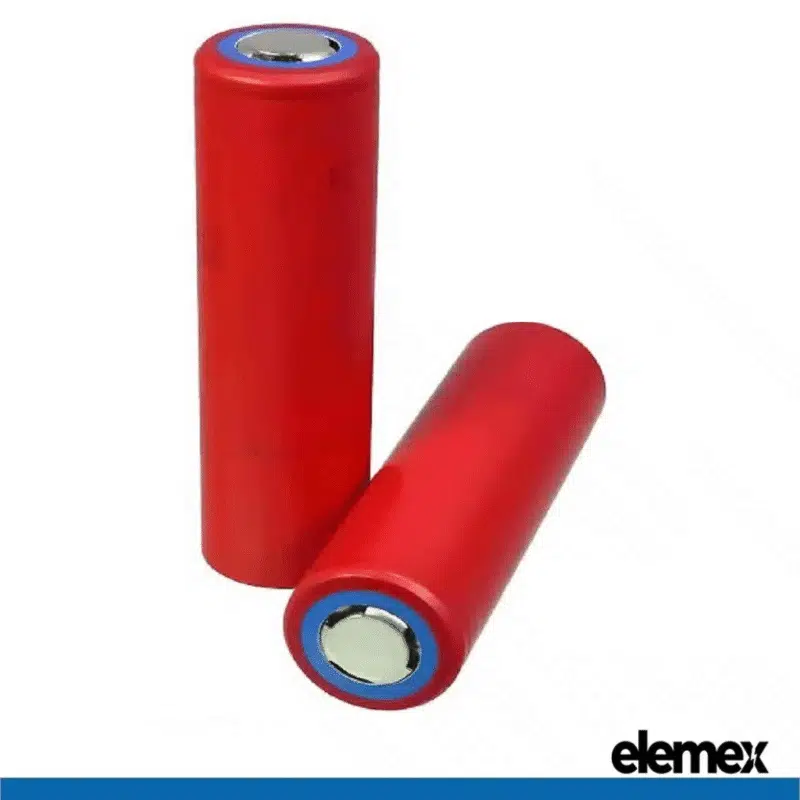

NCR18650GA 3500 mAh Panasonic 3.7V FLAT TOP Battery

NCR18650GA 3500 mAh Panasonic / Sanyo Li-ion 3.7V Rechargeable 18650 Battery (Genuine)

NCR18650 GA – 10Ah Discharge Rate – [FLAT TOP]

+ FREE CARRY CASE

Made in Japan

NCR18650GA 3500mAh Panasonic Batteries are available in THREE following models/sizes:

Flat Top (65mm~ Long | Button Top (67mm~ Long) | PROTECTED Button Top (70mm~ Long)

Three Types of 18650GA 3500mAh Panasonic Batteries

Please carefully measure your device’s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Battery Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.

18650 Battery

Product Features:

• Capacity (Ah): 3.5 Ah Max (3550 mAh) Min (3500 mAh)
• Nominal Voltage (V): 3.7 V
• Charging Voltage (V): 4.2 V
• Charging Current (Ah): 1.47 Ah (1470 mAh)
• Cut-off Voltage (V): 2.5 V
• Energy (Wh): 12.95 Wh
• Energy Density (Wh/L): 745 Wh/L
• Max. Discharge rate (C): C Rating 2.5C (Recommended Max current 10 Amp)
• Pulse current (Ah): (5-6 sec.): 15 Ah
• Weight (g): 48 g (+/- 0.5 g)

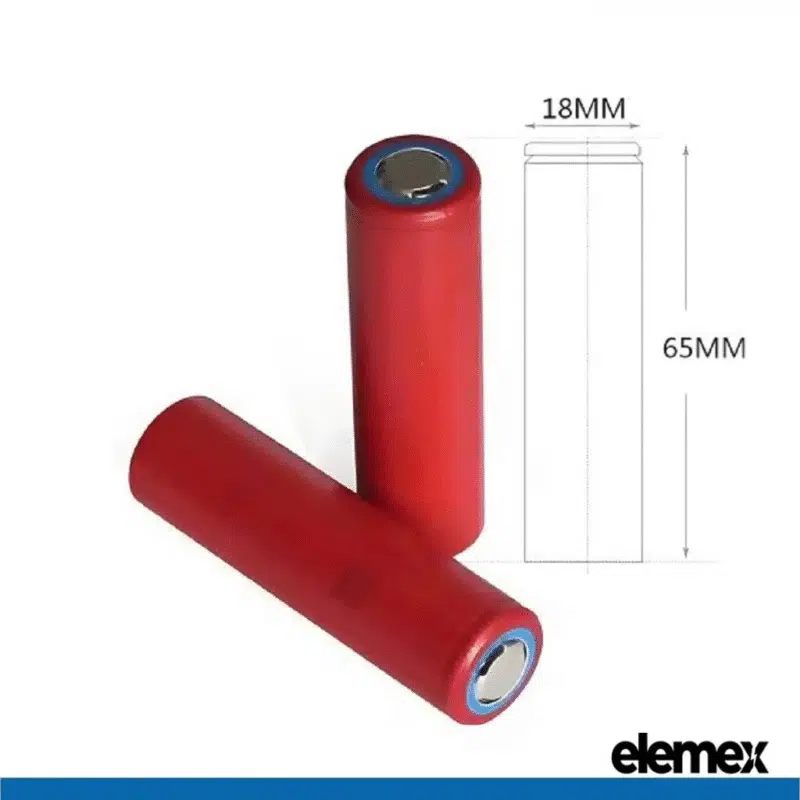

• Diameter (mm): 18.4 mm (+/- 0.03 mm)
• Height (mm): 65 mm (+/- 0.03 mm)
• PCB: No
• Top (positive side): Flat Top
• Model: NCR18650GA
• Made in Japan

Package Includes:

• 1x Genuine Panasonic NCR18650GA Li-ion Rechargeable Battery (3500 mAh)
• 1x Hard 18650 Battery Carry Case

Warning:

• Never fully discharge a Li-ion battery (below 2.5V under load).
• Fully charge a battery (to 4.2V) before first use.
• Never use force to install (insert) a Li-ion battery.
• Do not use old and new battery cells together.
• Use only a high-quality battery charger.
• Do not remove the heat shrink/wrapping cover (it must be used as it is).
• Do not expose to heat, NOT penetrate or modify.
• Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).
• Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
• Never charge a battery over 4.25V (another reason to use a high-quality battery charger).
• Do not charge unattended nor overcharge unprotected cells.
