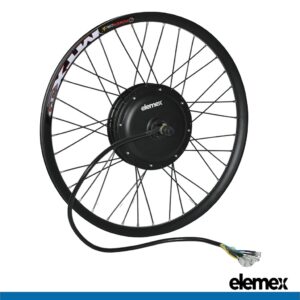

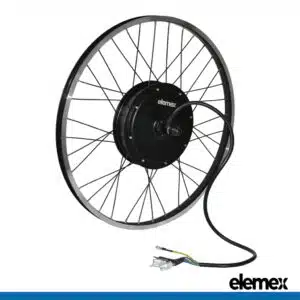

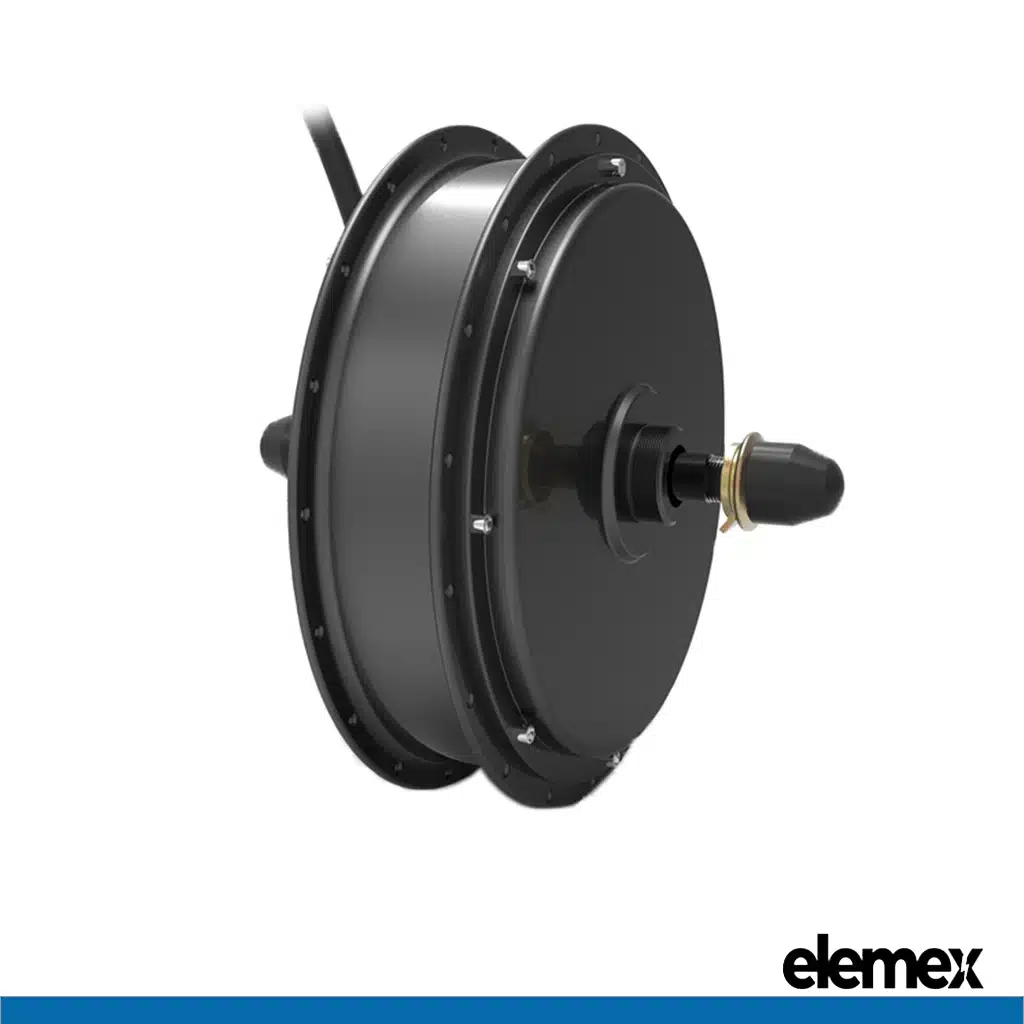

Elemex 3000W eBkie Brushless Direct Drive (Gearless) Rear Hub Motor

Elemex 3000W Rear Motor Hub Suitable for Electric Bike and Scooter

1 Year Warranty

Scooter eBike Rear Hub Motor 3000W

Product Overview:

Elemex 3000W Brushless Direct Drive (Gearless) Motor Hub is a type of electric motor commonly used in electric bicycles (eBikes), scooters, and other light electric vehicles.

KEY FEATURES:

Power Output:

• Rated at 3000W, suitable for urban commuting, leisure riding, and terrains with Steep gradients.
• Complies with legal limits for eBikes in many regions.

Direct Drive (Gearless) Design:

• No internal gears, relying solely on the magnetic interaction between the rotor and stator.
• This design eliminates mechanical wear and tear from gears, enhancing durability.

Brushless Motor:

• Uses electronically controlled magnets instead of brushes, reducing maintenance.
• Offers higher efficiency, smooth acceleration, and less noise.

Quiet Operation:

• Gearless design significantly reduces noise compared to geared motors.
• Suitable for riders who prefer a stealthy and smooth ride.

Regenerative Braking:

• Many direct-drive hub motors support regenerative braking, converting some kinetic energy back into battery charge during deceleration.

Applications:

• High-Performance eBikes: Ideal for riders seeking higher speeds and powerful acceleration.
• Long-Distance Commuting: Suitable for daily use with enhanced speed and efficiency.
• Off-Road Biking: Handles trails, hills, and uneven terrains with ease.

Note: This kit is built for off-road adventures only. Be sure to check local laws to ensure it’s right for you. For a safe first ride, DIYers should get a final check from a licensed installer before hitting the road.

Attention: The buyer is solely responsible for ensuring the safe installation, use, and compliance with local laws and regulations for this product.

Safety:

• For safety and durability during high-torque use, we recommend fitting torque arms on both sides of the bike. These help prevent axle spin in the dropouts, which can damage motor wiring.
• Disc brake users: the plastic transport spacer under the rotor mount must be removed before installing the disc rotor. If the spacer is not removed, tightening the rotor can crack the mounting boss, loosen rotor bolts, cut the motor cable, and seriously reduce braking safety.
• Ensure the rotor seats flat against the hub and tighten the six rotor bolts in a star pattern to 6 Nm (acceptable range 5–6 Nm) with a drop of medium thread locker. Recheck bolt tightness after the first ride.

Product Specifications:

• Brand: Elemex
• Hub Motor Type: Brushless Direct Drive (Gearless)
• Number of Magnets: 45H
• Wiring Type: Three-phase brushless DC motor wiring
• Connector Type: 6-pin inline connector (for Hall sensor feedback, SMH/KT style)
• Drop Out: 135mm-142mm
• Max Torque: 140Nm
• Rated Power: 3000W
• Rated Speed: 85km/h
• Max Speed: 99km/h
• Weight: 9.5kg
• Wheel Axle: M14*10/218mm
• Load Capacity: 150 kg (including the total weight of the bike and rider)
• Hub Motor Safety Certification: CE, EN15194, RoHS
• Warranty: 1 Year



Package Includes:

• 1x Elemex 3000W Brushless Gearless Electric Bike Hub Motor (No Rim OR Freewheel Included)
