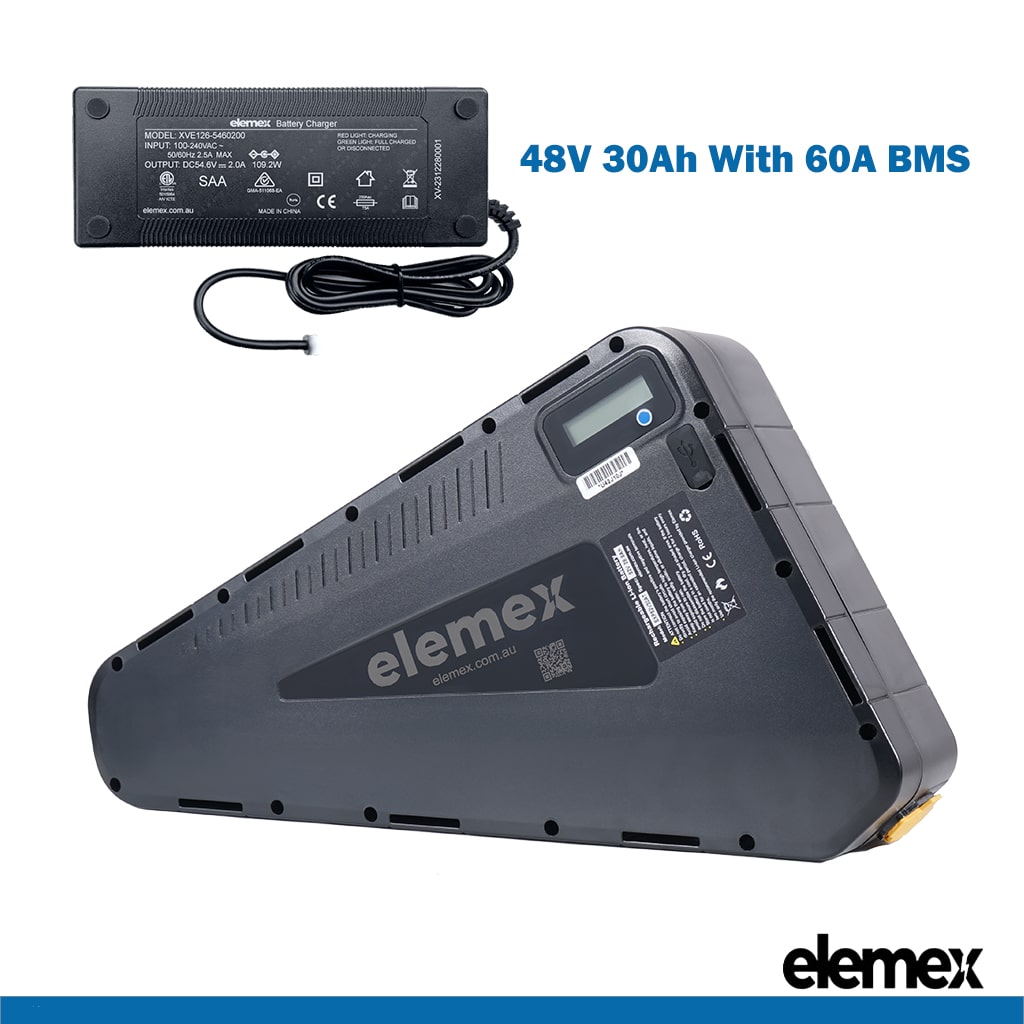

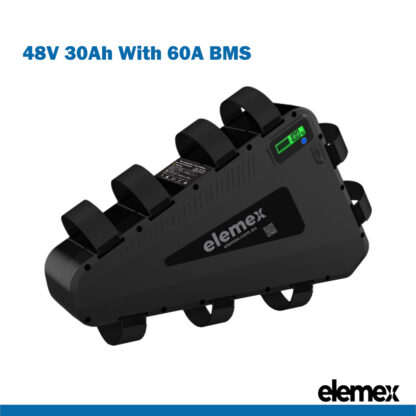

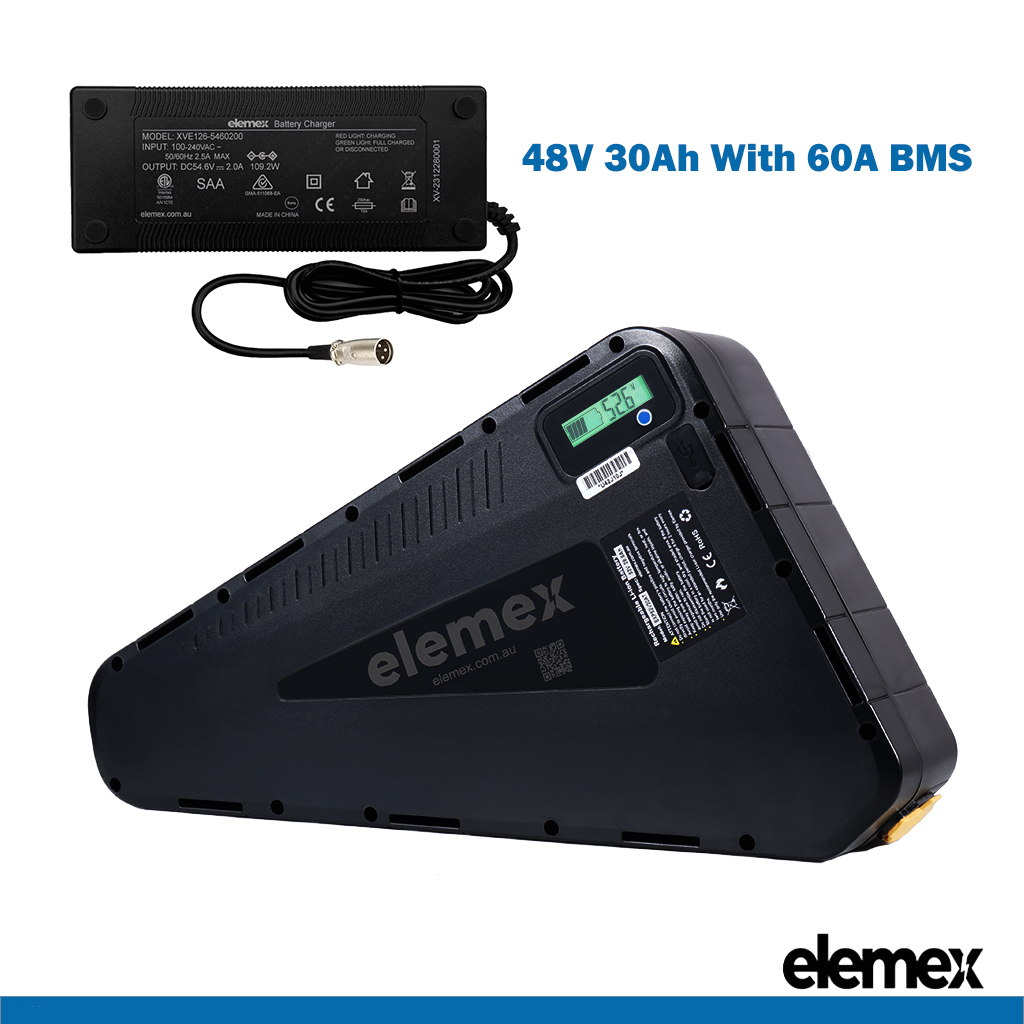

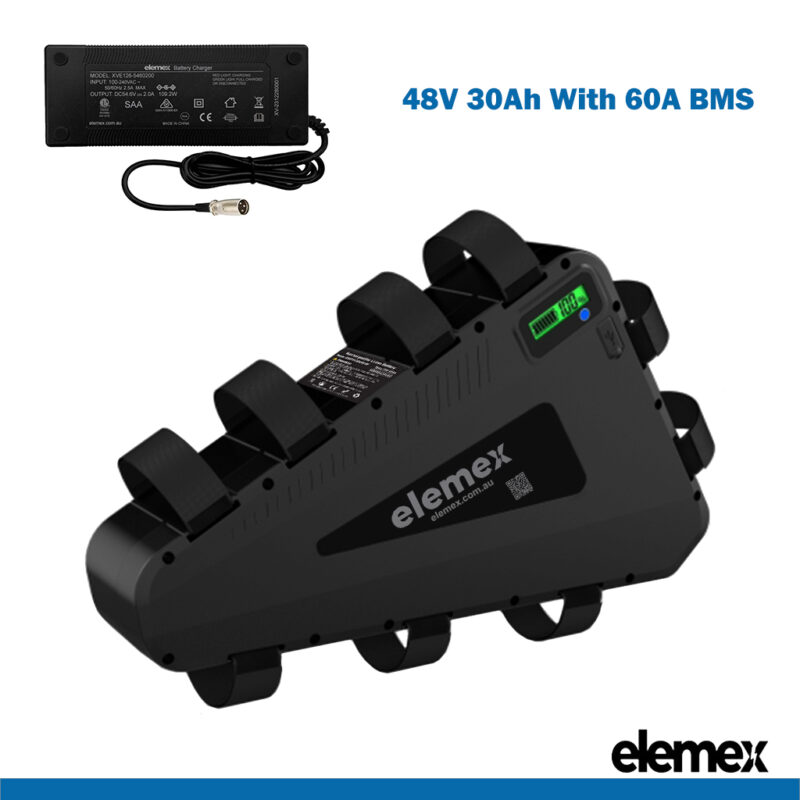

48V Triangle eBike Battery 30Ah Li-ion Pack with 60A BMS for up to 2000W Motor + Charger

Elemex 48V Triangle eBike Battery 30Ah is Suitable for 2000W Motors

Genuine LG Cells

+1 Year Warranty48V eBike Triangle Battery

Product Overview:

The Elemex 48V 30Ah Triangle eBike Battery features a waterproof design with high-quality sealing technology, protecting against rain, splashes, and dust for all-weather reliability. Engineered with genuine LG cells, this lithium pack ensures optimal performance, longevity, and consistent power for motors up to 2000W. It includes a premium charger, making it a dependable choice for high-performance eBikes.

Battery Features:

• Brand: Elemex
• Cell Type: 21700 4800mAh Lithium-ion Battery
• Cell Brand: LG (Genuine) – LG M48A Cell
• Nominal Voltage: 48V
• Array Mode: 13s6p
• Max Constant Discharge Current: 60A
• Max Continuous Charge Current: 4A
• Peak Current: 180A (3-5 Seconds)
• Charge Method: CC/CV
• Rated Capacity: 28.8Ah
• Charge Voltage: 54.6V
• Discharge Cut off Voltage: 36.4V – 39V
• Energy: 1385 Wh
• Charge/Discharge Temperature: -15°C to 55°C
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• BMS: 60A
• Charging Time: Approx. 5 to 10 hours
• Charging Compatibility: Elemex-approved Chargers
• Output Connector: XT90 Female
• Housing Material: Plastic
• Compatible Brand: Elemex Conversion Kits, Universal
• Cycle Life: ≥80% of initial capacity after 1,000 charge cycles (tested up to 1,100 cycles)
• Weight: Approx. 8kg
• Dimensions: Approx. 400mm x 350mm x 240mm~ (Thickness: 80mm~)

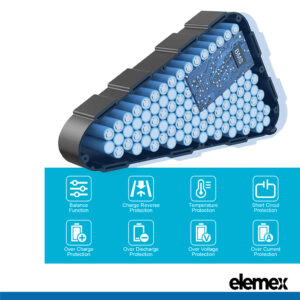

BMS Protection:

This 48V Triangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

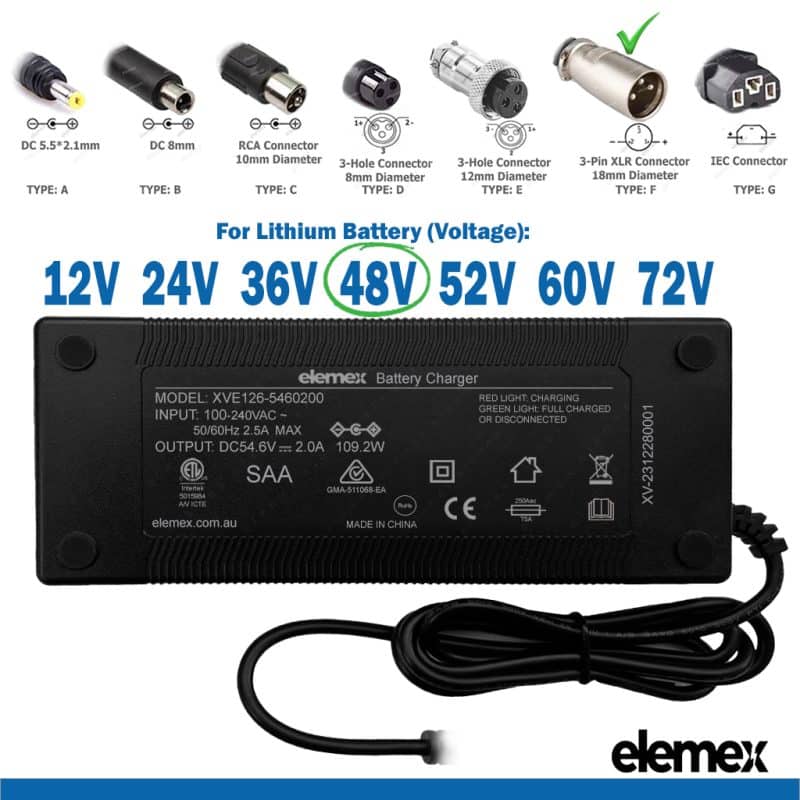

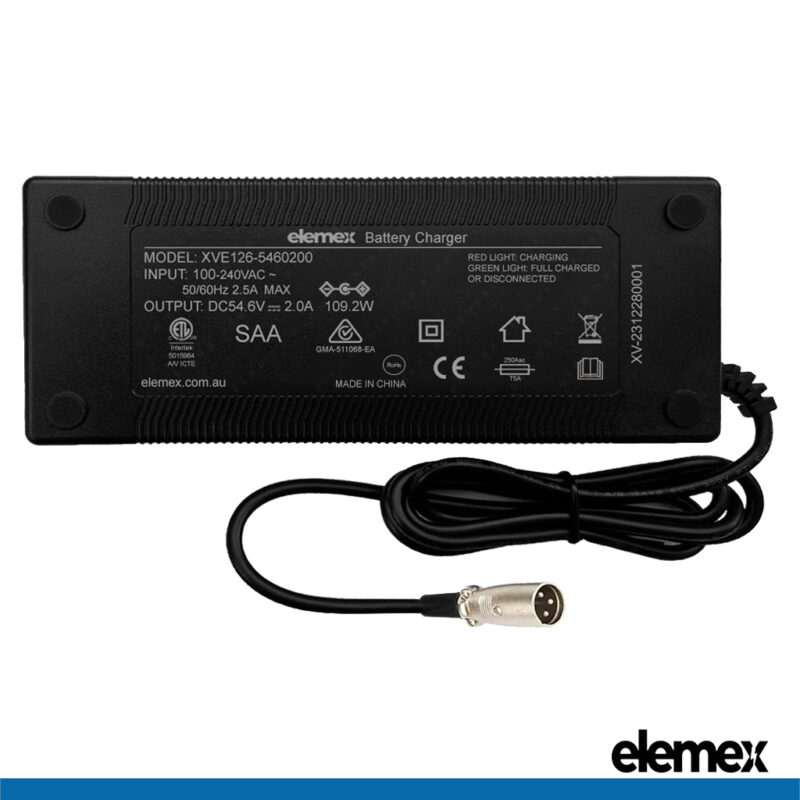

Charger Specifications:

with 2Ah Charger:
Brand: Elemex
Input: AC 100-240V∼ 50/60Hz
Output: DC 54.6V 2Ah [109.2W]
Compatible Battery: 48V Lithium Li-ion
Certifications: SAA, GMA, CE, ETV
Warranty: 1 Year

48V Battery Charger 2Ah

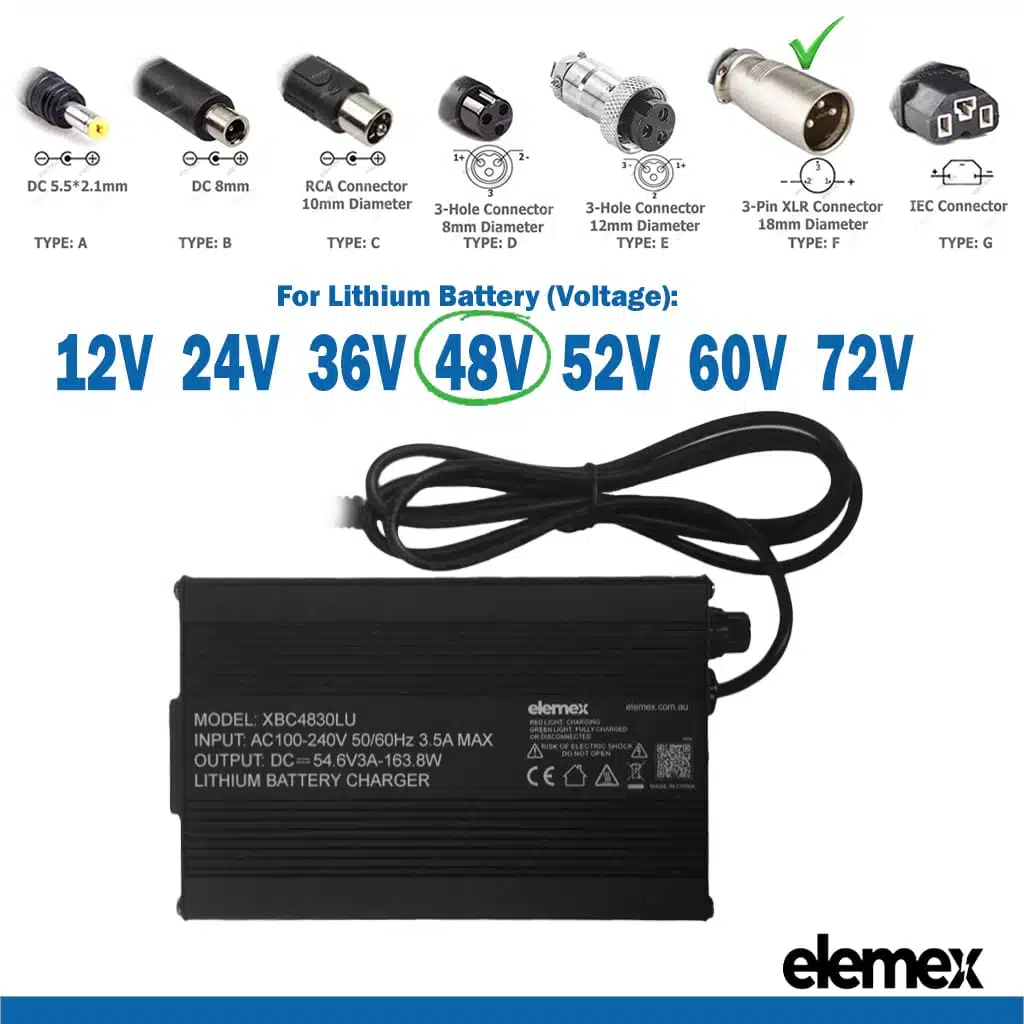

Charger Specifications:

with 3Ah Charger:
Brand: Elemex
Input: AC 100-240V∼ 50/60Hz
Output: DC 54.6V 3Ah (163.8 W)
Compatible Battery: 48V Lithium Li-ion
Certifications: SAA, GMA, CE, ETV
Warranty: 1 Year

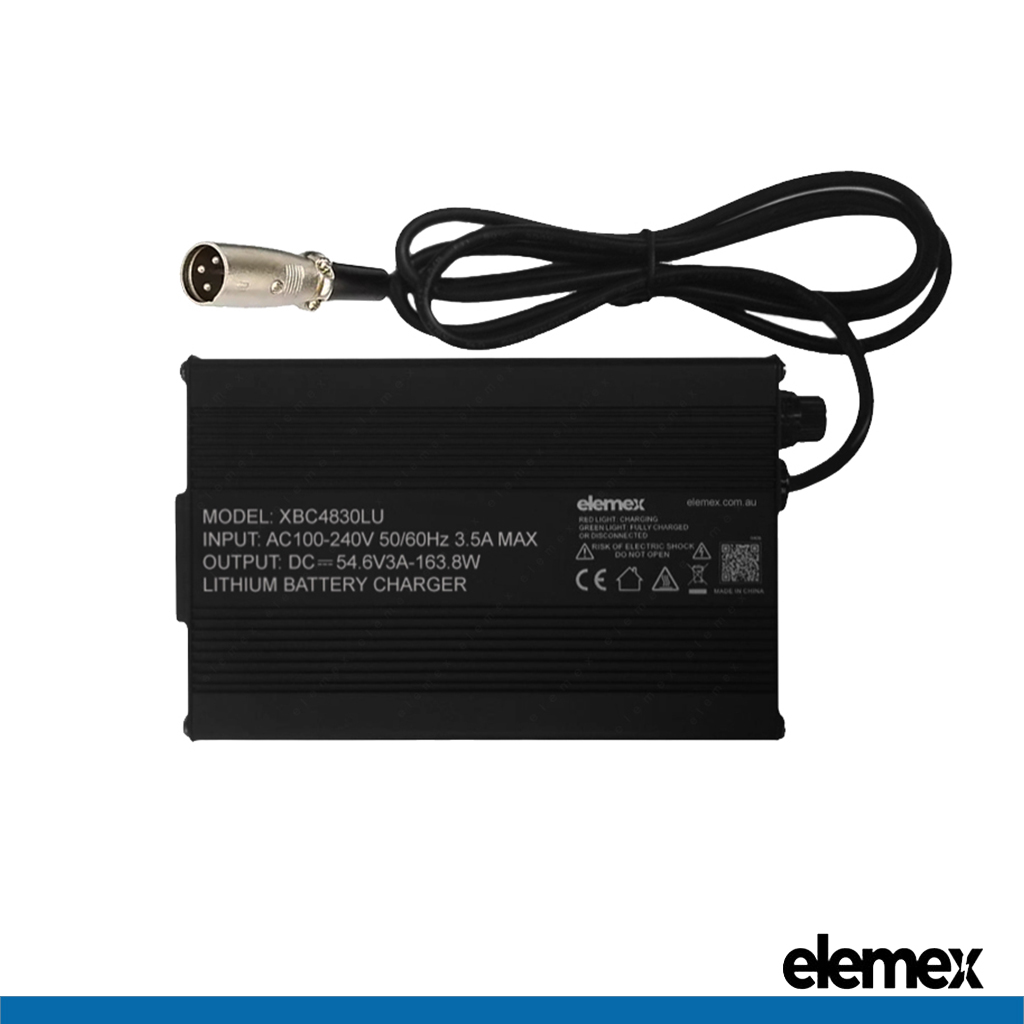

48V Battery Charger 3Ah

Built with precision and meeting stringent Australian Standards, Elemex Battery Chargers are engineered to endure and excel in performance.

Important Information:

Compatibility
When purchasing a battery, ensure the voltage matches your motor’s requirements (e.g., a 48V motor must pair with a 48V eBike battery). Burnt-out controllers due to reprogramming or incompatible pairing are not covered by warranty.

Frame Space Considerations
High-capacity batteries may not fit in some bike frames, particularly dual suspension bikes. If under-mounting or rear-mounting isn’t possible, consider using two smaller capacity batteries, one of which can be kept in a backpack for long rides.

Dimension Check
Please verify the dimensions of this battery pack before placing your order to ensure compatibility with your bike frame.

Package Includes:

• 1x Elemex 48V 30Ah Triangle eBike Lithium Battery Pack (Genuine LG Cells)

• 1x Elemex 54.6V 2Ah/3Ah Premium Lithium Battery Charger [Please Choose from the Variation Bar]

• 1x Adapter Cable (XT90 Male) to (XT60 Female)

• 1x Premium Tear-resistant Velcro Set (Straps)

• 1x User Manual

• 1x Warranty Certificate

NSW Safety Information (Required by Law)

This product complies with the NSW Information Standard for e-micromobility vehicles, effective 1 August 2025.

Usage Laws:

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads, footpaths, shared paths, bicycle lanes, and bicycle paths.

Serial Number:

Each battery includes a unique serial number printed on the product for traceability. Serial numbers are recorded and assigned to each buyer upon shipment.

Electrical and Fire Safety:

• Only use compatible batteries and chargers supplied or certified by Elemex.

• Ensure batteries and chargers used are compatible with this vehicle.

• Charge only in a dry, well-ventilated area, away from flammable materials.

• Do not leave the battery charging unattended or overnight.

• Avoid high-risk charging practices, including charging on flammable surfaces, using uncertified chargers, or charging damaged/swollen batteries.

• Modifying the vehicle or battery may cause fire.

• Warning signs: smoke, sparks, unusual heat, or swelling.

• If battery starts smoking or sparking, call 000 immediately.

User Responsibility & Charger Warning:

• Users must read and understand the Elemex Battery User Manual before use or charging.

• Lithium batteries must only be charged with Elemex-authorised, certified Li-ion chargers.

• Using aftermarket or uncertified chargers may cause performance issues, reduce battery life, or create safety risks.

• Use of uncertified chargers voids the warranty; any resulting damage is the user’s responsibility.

Safe Storage:

• Store in a cool, dry place (15°C – 25°C).

• Do not expose to prolonged heat or water.

• Keep out of reach of children.

Disposal:

• If battery is detachable, separate it safely and dispose of according to local recycling laws.

• If not detachable, follow local laws for vehicle disposal.

• Do not dispose of batteries or vehicles in household bins.

Additional Safety:

• Do not use the vehicle if it contains a damaged battery.

Emergency Instructions:

• If battery emits smoke or fire, move it outdoors if safe.

• Use a Class D fire extinguisher or sand.

• Do not use water on lithium battery fires.
