eBike Battery 48v 10Ah Li-ion Lithium Pack for 600W to 1200W Motor Downtube

Hailong eBike Battery 48V 10Ah Suitable for 600W to 1200W Motors

Genuine LG Cells

+1 Year Warranty

Elemex eBike Battery 48V 10Ah

• Battery Type: Lithium-ion Battery
• Nominal Voltage: 48V
• Array Mode: 13S4P
• Max Constant Discharge Current: 25A
• Max Continuous Charge Current: 3A
• Peak Current: 50A
• Way of Charge: CC/CV
• Rated Capacity: 10Ah
• Charge Voltage: 54.6V
• Discharge Cut-off Voltage: 36.4V
• Charge/Discharge Temperature: -15°C ~ 55°C
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging Time: Approx. 5 to 6 hours
• Charging Compatibility: Elemex-approved Chargers
• Compatible with: T-plug to XT60 Adapter
• Housing Material: Plastic
• Battery Colour: Black
• Cycle Life: 1100 times
• Weight: Approx. 3.5 kg

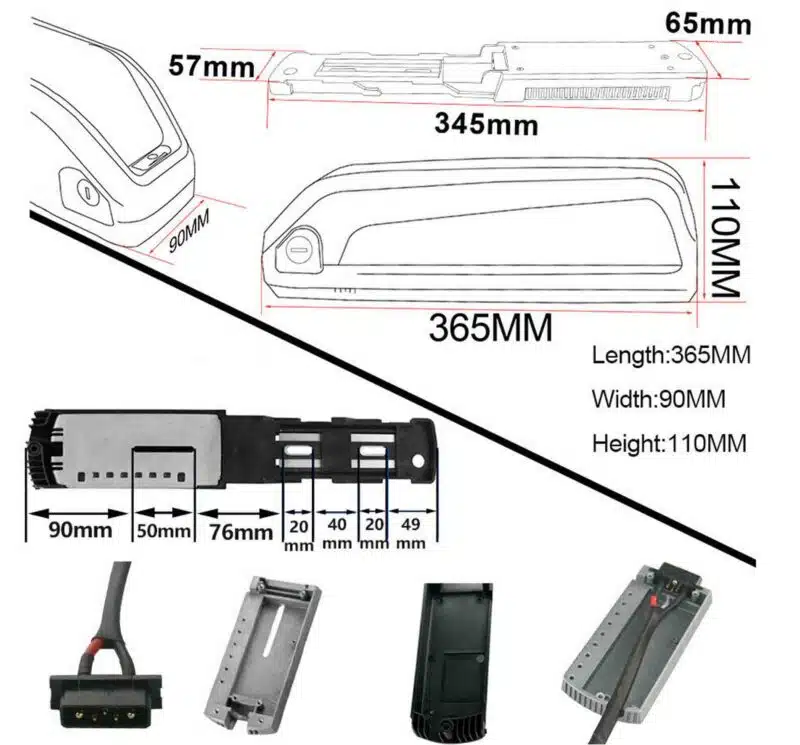

• Dimensions: Approx. 365mm x 90mm x 110mm
• Warranty: 1 Year

BMS Protection:

This 48V Downtube eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

ebike battery 48v

Important Notes:

• Ensure that voltages are paired correctly. For example, a 48V motor must be paired with a 48V battery. Controllers burnt out due to reprogramming or incompatible pairing are not covered by the warranty.
• Often riders may want a high-capacity battery, but their bike frame may not have enough space in the inner diamond to fit one. This is particularly true for dual suspension bikes. If under-mounting or rear mounting the battery is not an option, consider purchasing two smaller capacity batteries and swapping them out during long rides.
• Check the dimensions of this item before placing your order.
• If unsure which battery to pair with your bike, contact us for more information.

• 1x Elemex 48V 10Ah Lithium eBike Battery Pack
• 1x Frame Mount Bracket
• 2x Keys
• 1x Warranty Certificate

⚠️ Warning

Users are solely responsible for reading and understanding the Elemex Battery User Manual before use or charging to ensure safe operation.
Lithium batteries must only be charged with Elemex-authorised, certified, and standard Li-ion chargers.
Using aftermarket or uncertified chargers may lead to performance issues, reduced battery life, or potential safety risks such as overheating or malfunction.
The use of uncertified chargers voids the warranty, and any resulting damage, faults, or failures will be the sole responsibility of the user.
