48V Lithium ion Battery 20Ah eBike Downtube for 500W to 2000W Motor

Elemex 48V eBike Battery 20Ah with LG Cells, Suitable for 500W to 2000W Motors

Genuine LG Cells

+1 Year Warranty

PRE-ORDER ONLY! THIS PRODUCT IS CURRENTLY OUT OF STOCK. THE EXPECTED DELIVERY IS LATE-MAY-2025.

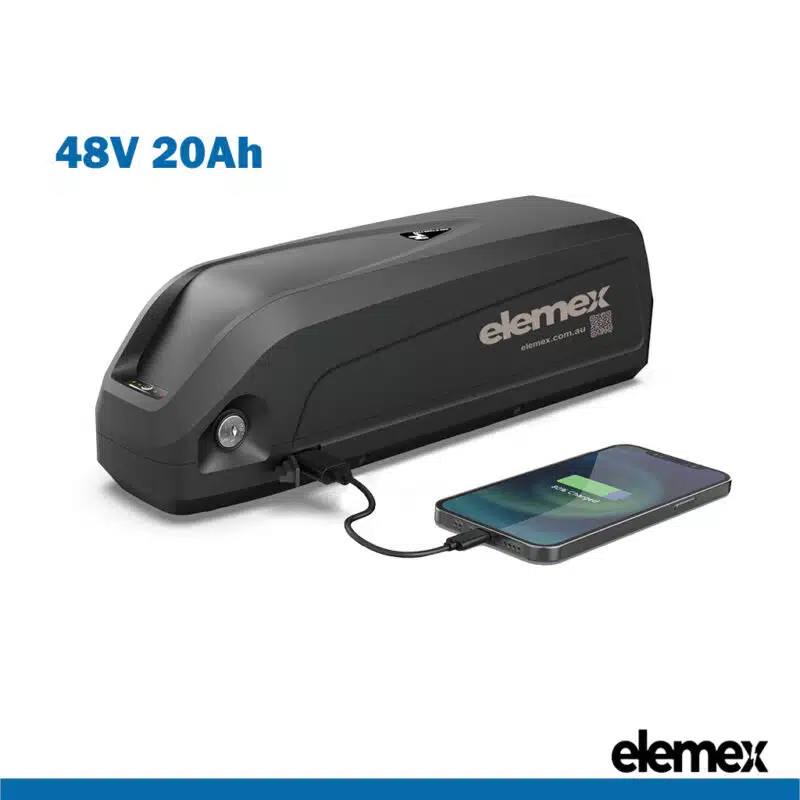

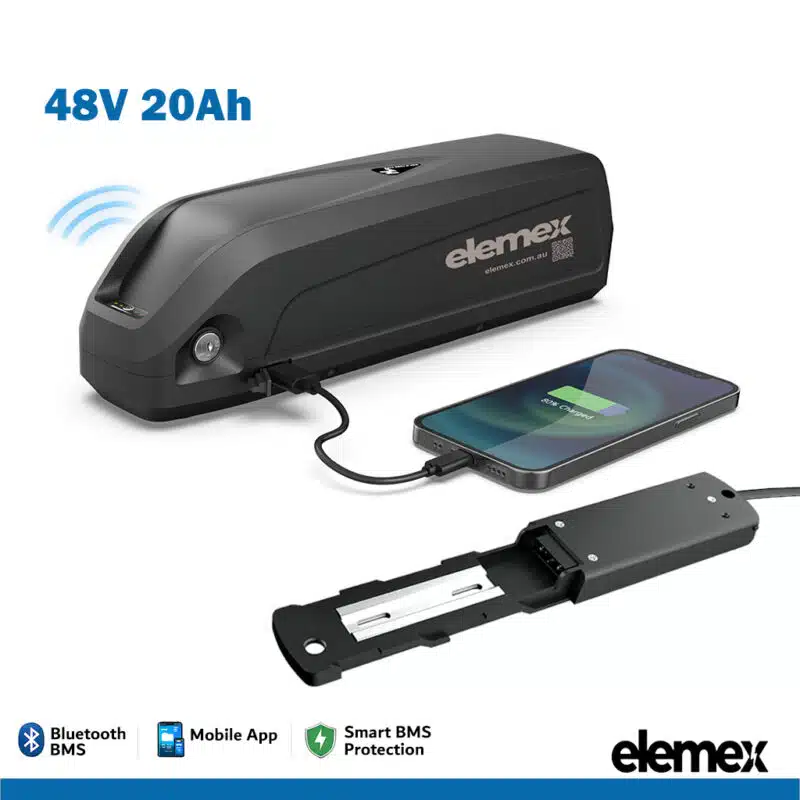

Elemex Downtube 48V 20Ah eBike Battery

• Brand: Elemex
• Battery Type: 21700 4800mAh Lithium-ion Battery
• Cell Brand: LG (Genuine) – LG M48A Cell
• Array Mode: 13s4p
• Nominal Voltage: 48V
• Rated Capacity: 19.2Ah
• Energy: 923W
• Max Constant Discharge Current: 40A
• Peak Current: 120A (3-5 Seconds)
• Max Constant Charge Current: 4A
• Cut-off Voltage: 39.4V
• Charge Voltage: 54.6V
• Way of Charge: CC/CV
• Charge/Discharge Temperature: -20°C ~ 70°C
• BMS: 40A
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• Charging Time: Approx. 4 to 10 hours
• Charging Compatibility: Elemex-approved Chargers
• Output Connector: XT60 Female
• Battery Colour: Black
• Charging Connector: 3 Pin XLR (18mm)
• Cycle Life: 1100 times
• Battery Weight: Approx. 5 kg

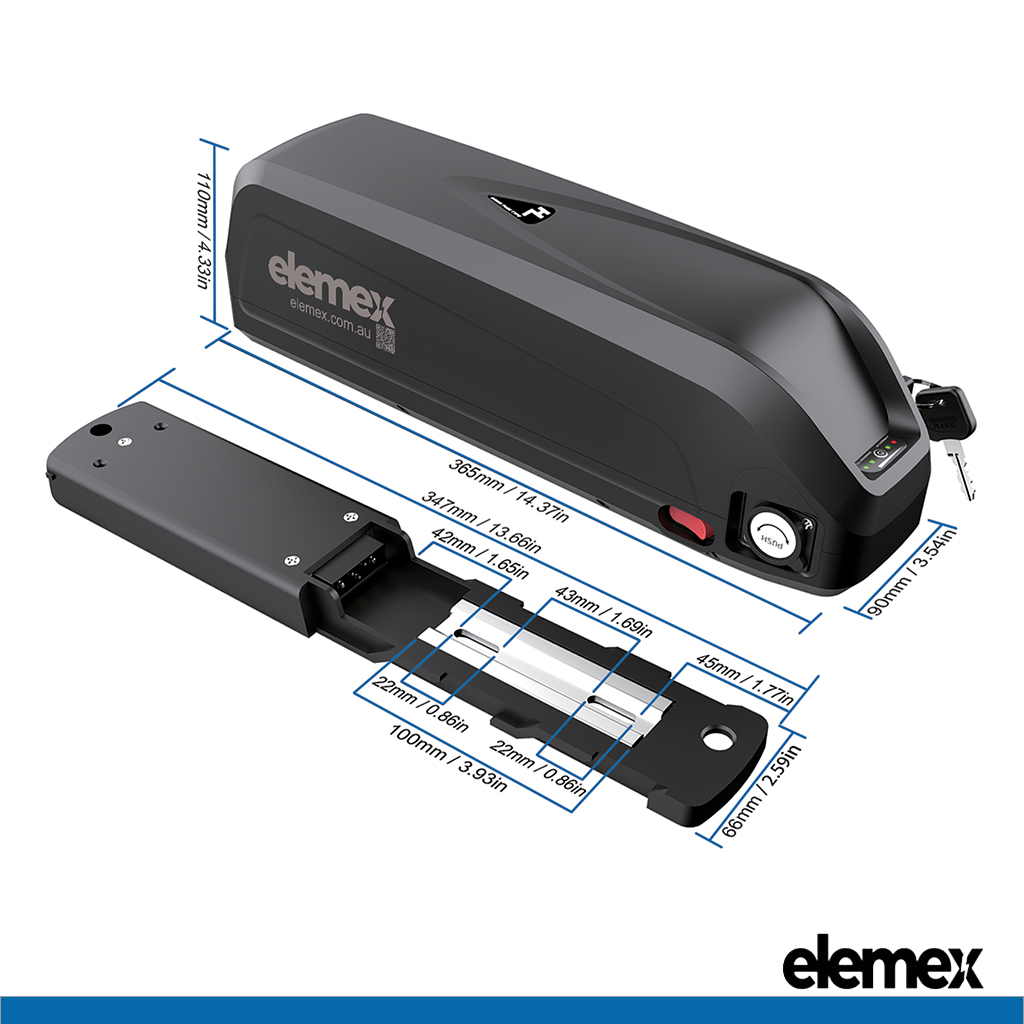

• Battery Dimensions: Approx. 360mm x 90mm x 100mm
• Safety Certificates: CE, ROHS, MSDS, UN38.3, IP65
• Warranty: 1 Year

BMS Protection:

This 48V Downtube eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

Downtube 48V eBike Battery

Important Notes:

• Ensure that voltages are paired correctly. For example, a 48V motor must be paired with a 48V battery. Controllers burnt out due to reprogramming or incompatible pairing are not covered by the warranty.
• Often riders may want a high-capacity battery, but their bike frame may not have enough space in the inner diamond to fit one. This is particularly true for dual suspension bikes. If under-mounting or rear mounting the battery is not an option, consider purchasing two smaller capacity batteries and swapping them out during long rides.
• Check the dimensions of this item before placing your order.
• If unsure which battery to pair with your bike, contact us for more information.

• 1x Elemex 48V 20Ah eBike Battery Lithium Pack (Genuine LG Cells)
• 1x Frame Mount
• 2x Keys
• 1x Adapter Cable XT60 (Male)
• 1x User Manual
• 1x Warranty Certificate

⚠️ Warning

Users are solely responsible for reading and understanding the Elemex Battery User Manual before use or charging to ensure safe operation.
Lithium batteries must only be charged with Elemex-authorised, certified, and standard Li-ion chargers.
Using aftermarket or uncertified chargers may lead to performance issues, reduced battery life, or potential safety risks such as overheating or malfunction.
The use of uncertified chargers voids the warranty, and any resulting damage, faults, or failures will be the sole responsibility of the user.
