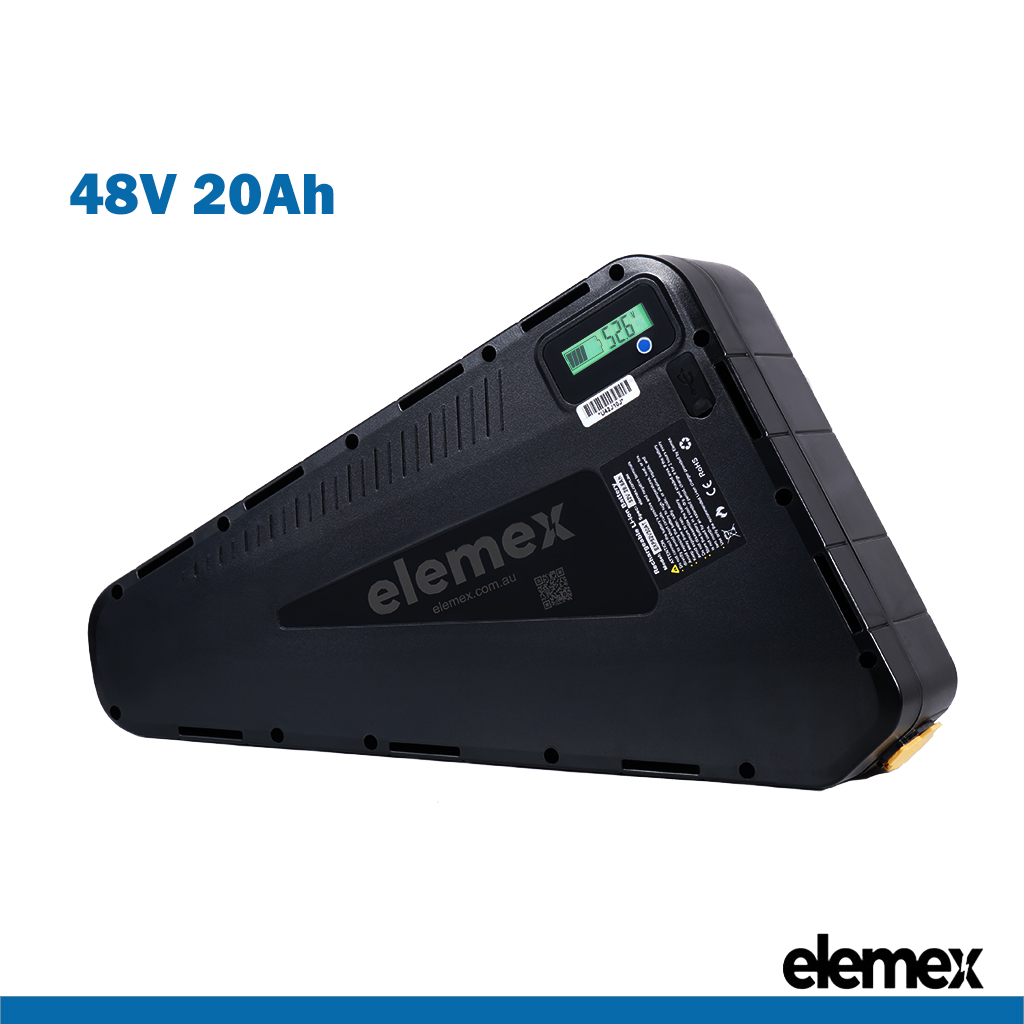

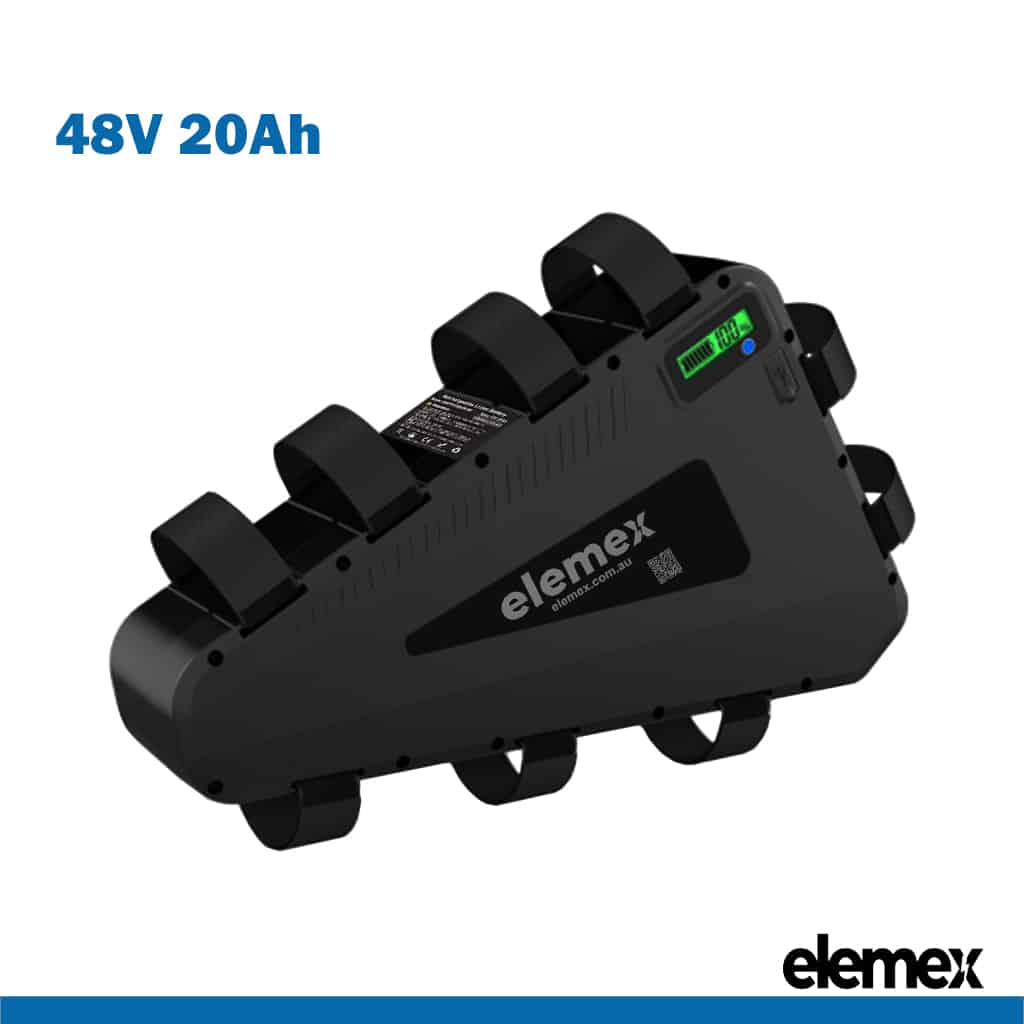

48V eBike Battery 20Ah Li-ion Pack for up to 2000W Motor Triangle

48 Volt Battery for Electric Bike 20Ah Triangle Lithium Pack

Elemex 48V 20Ah Triangle eBike Battery for up to 2000W Motors

Genuine LG Cells

+1 Year Warranty

48V eBike Battery

Product Overview:

The Elemex 48V 20Ah Triangle eBike Battery features a waterproof design with high-quality sealing technology, protecting against rain, splashes, and dust for all-weather reliability. Engineered with genuine LG cells, this lithium pack ensures optimal performance, longevity, and consistent power for motors up to 2000W.

Product Features:

• Brand: Elemex
• Cell Type: 21700 4800mAh Lithium-ion Battery
• Cell Brand: LG (Genuine) – LG M48A Cell
• Nominal Voltage: 48V
• Array Mode: 13s4p
• Max Constant Discharge Current: 40A
• Max Continuous Charge Current: 4A
• Peak Current: 120A (3-5 Seconds)
• Way of Charge: CC/CV
• Rated Capacity: 19.2Ah
• Charge Voltage: 54.6V
• Discharge Cut-off Voltage: 36.4V~39V
• Energy: 923 Wh
• Charge/Discharge Temperature: -15 ~ 55°C
• Protections: Overheat, Over Charge, Over Discharge, Over Current, Short Circuit, Balance
• BMS: 40A
• Charging Time: Approx. 5 to 10 hours
• Charging Compatibility: Elemex-approved Chargers

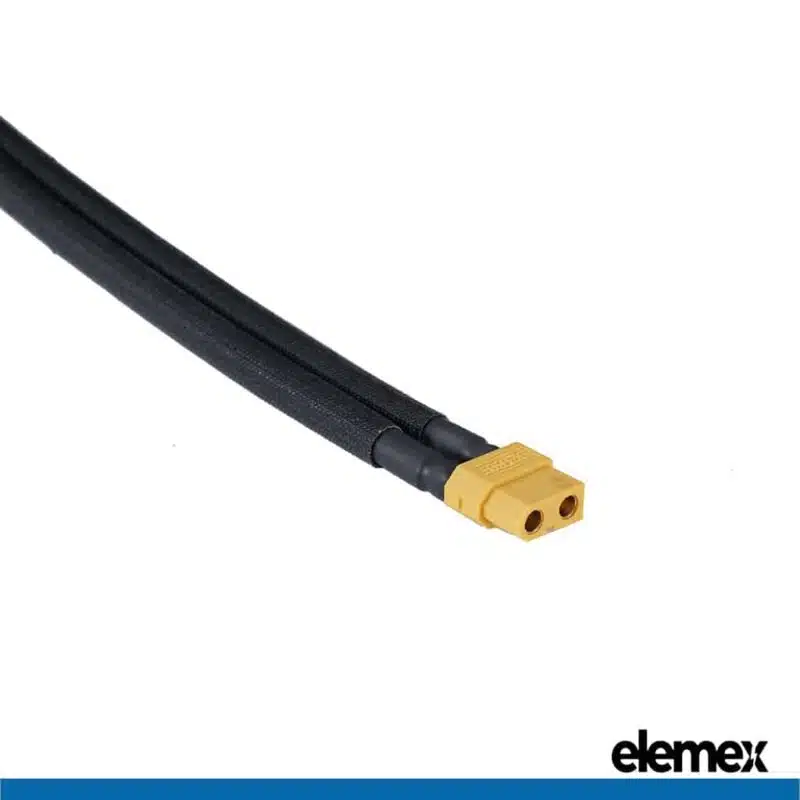

• Output Connector: XT60 Female
• Housing Material: ABS Plastic
• Compatible Brand: Elemex Conversion Kits, Universal
• Cycle Life: 1100 times
• Weight: 5kg~
• Dimensions: Approx. 400mm x 350mm x 240mm~ (Thickness: 80mm~)
• Warranty: 1 Year

BMS Protection:

This 48V Triangle eBike Battery Pack is equipped with a Battery Management System (BMS) that provides protection against overcharge, over-discharge, over-current, short circuits, and ensures cell balance for optimal performance and safety.

BMS Protection for 48V Triangle eBike Lithium Battery Pack

Important Information:

Compatibility

When purchasing a battery, ensure the voltage matches your motor’s requirements (e.g., a 48V motor must pair with a 48V eBike battery). Burnt-out controllers due to reprogramming or incompatible pairing are not covered by warranty.

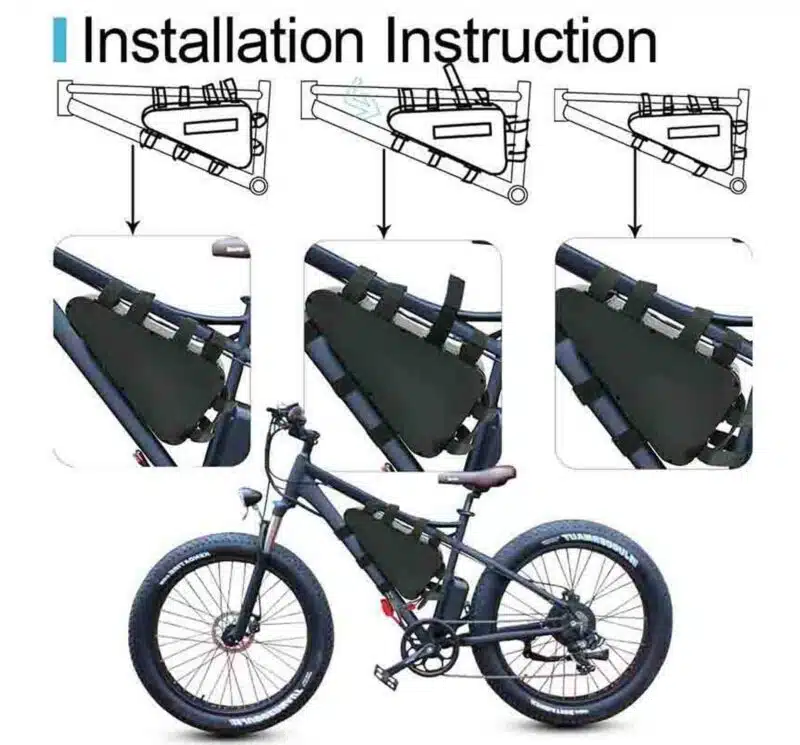

Frame Space Considerations

High-capacity batteries may not fit in some bike frames, particularly dual suspension bikes. If under-mounting or rear-mounting isn’t possible, consider using two smaller capacity batteries, one of which can be kept in a backpack for long rides.

Dimension Check

Please verify the dimensions of this battery pack before placing your order to ensure compatibility with your bike frame.

Assistance

If you need help selecting the right battery for your bike, please contact us for expert advice.

Package Includes:

• 1x Elemex 48V 20Ah Triangle eBike Lithium Battery Pack (Genuine LG Cells)
• 1x Adapter Cable XT60 (Male)
• 1x Premium Tear-resistant Velcro Set (Straps)
• 1x User Manual
• 1x Warranty Certificate

⚠️ Warning

Users are solely responsible for reading and understanding the Elemex Battery User Manual before use or charging to ensure safe operation.
Lithium batteries must only be charged with Elemex-authorised, certified, and standard Li-ion chargers.
Using aftermarket or uncertified chargers may lead to performance issues, reduced battery life, or potential safety risks such as overheating or malfunction.
The use of uncertified chargers voids the warranty, and any resulting damage, faults, or failures will be the sole responsibility of the user.

Elevate your eBike experience with the reliable and powerful Elemex 48V 20Ah Triangle eBike Battery. Shop now and enjoy enhanced performance on your rides!
