18650 Solder Tabbed Rechargeable Lithium Battery VTC5 Sony 2600mAh 3.7V (Genuine)
18650 Lithium Battery High Drain – 30A Discharge Rate (Tabbed Version)
18650 Solder Tabbed Battery (U-Type)

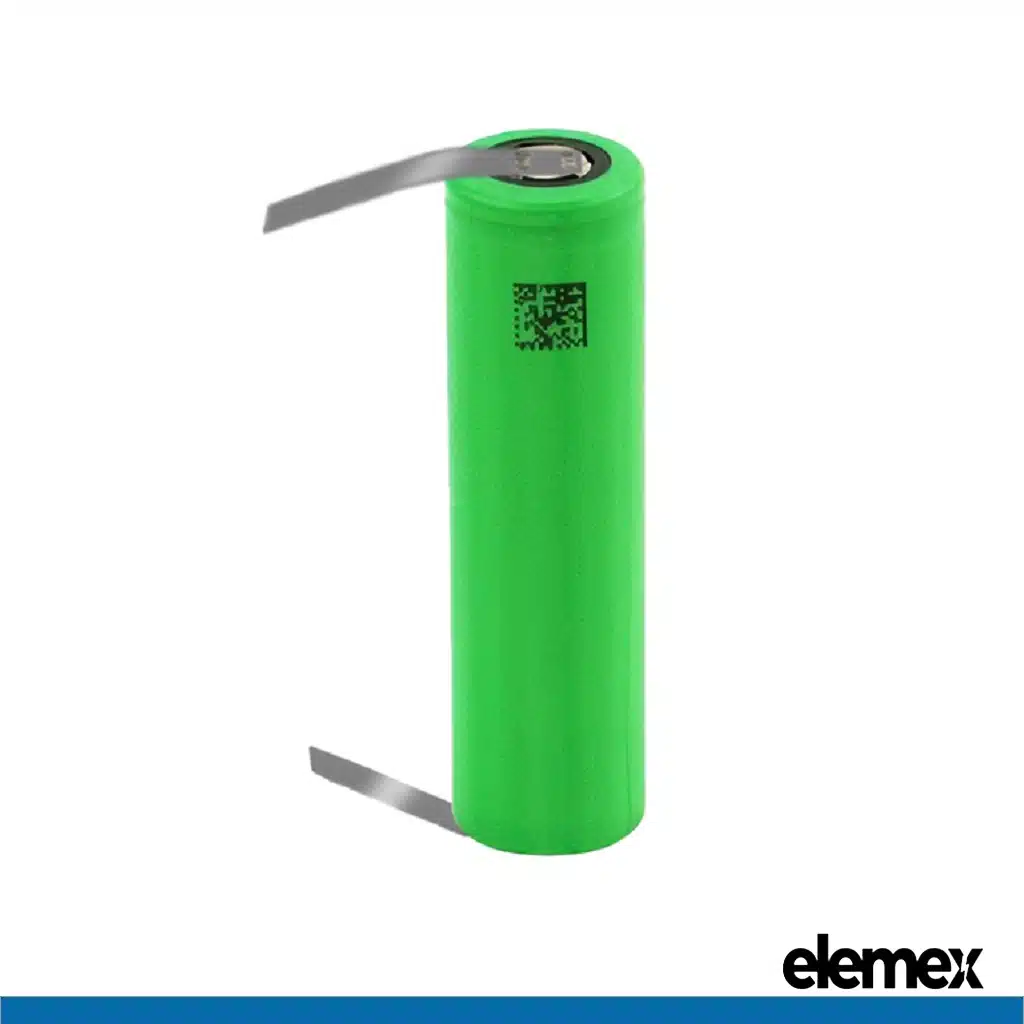

18650 Solder Tabbed Battery (Z-Type)
Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.
Product Features:ย
- Capacity (Ah): 2.6 Ah Max (2600 mAh) Min (2500 mAh)
- Nominal Voltage (V): 3.6 ~ 3.7 V
- Charging Voltage (V): 4.2 V
- Charging Current (Ah): 1.0 Ah (1000 mAh)
- Cut-off Voltage (V): 2.1 V
- Energy (Wh): 9.4 Wh
- Internal Impedance: 13.5 milli-Ohms
- Max. Discharge rate (C): C Rating 12C (Recommended Max current 30 Amp)
- Pulse current (Ah): (5-6 sec.): 80 Ah
- Weight (g): 44 g (+/- 0.5 g)
- Diameter (mm): 18.0 mm (+/- 0.3 mm)
- Height (mm): 65.0 mmย (+/- 0.5 mm)
- PCB: No
- Top (positive side): Flat Top
- Model: US18650VTC5 Tabbed Version
- Made in Japan
Package Includes:ย
- 1x Genuine Sony US 18650 VTC5 Li-ion 2600mAh (30A Discharge) Battery with Solder Tabs ( U-Type OR Z-Type) [Please Select the Battery Type]
Warning:ย ย ย ย ย ย ย ย
- Never wholly discharge a Li-ion battery (below 2.5V under load).ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Charge fully to 4.2V before first use.ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Never use force to install (insert) a Li-ion battery.ย ย ย ย ย ย ย ย ย ย ย ย
- Do not use old and new battery cells together.ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Use only a high-quality battery charger.ย ย ย ย ย ย ย ย ย ย ย ย
- Do not remove the heat shrink/wrapping cover (it must be used as it is).ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Do not expose to heat, NOT penetrate or modify.ย ย ย ย ย ย ย ย ย ย
- Do not short (connect) positive (top), and negative (bottom) battery terminals (contacts).ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).ย ย ย ย ย ย ย ย ย ย ย ย ย ย
- Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
- Do not charge unattended nor overcharge unprotected cells. ย
