18650 Protected Battery 3600mAh Elemex Panasonic GAP Li-ion 3.7V

$21.95$215.95

Elemex PROTECTED NCR18650GAP 3600mAh 3.7V Li-ion Lithium Premium Rechargeable Battery – Made in Japan

18650 Protected Battery NCR18650GAP Xerom
18650 Protected Battery 3600mAh Elemex Panasonic GAP Li-ion 3.7V $21.95$215.95

Free standard shipping on all orders (Australia Wide)

  • Ships same business day if ordered before 4PM
  • Free Standard (2-5 days*, tracked)
  • $$$ Express (1-2 days*, tracked)
  • 60 days easy returns
Guaranteed Safe Checkout

trust - Xerom Pty Ltd

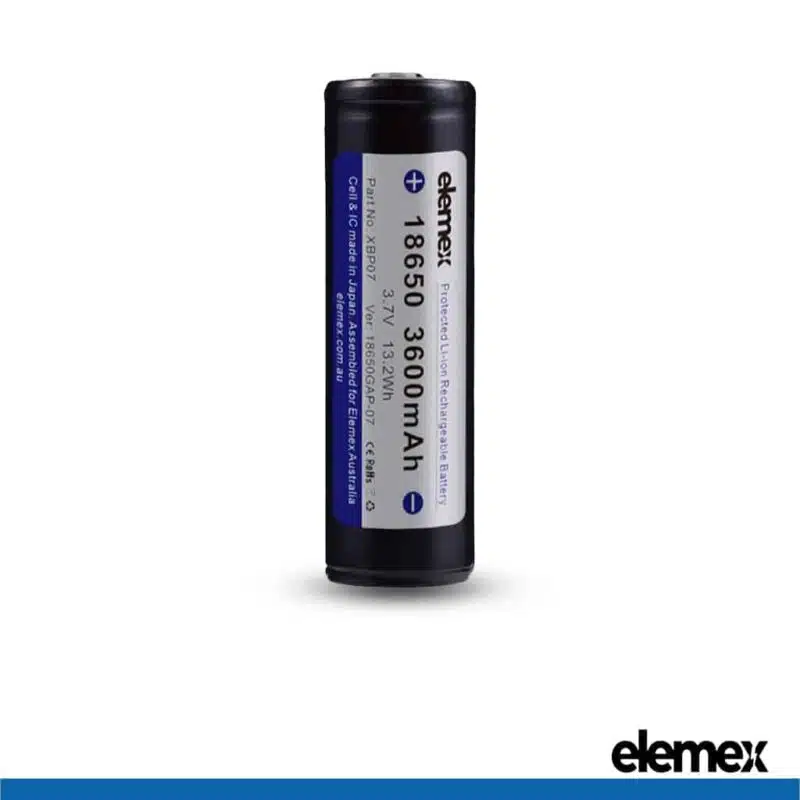

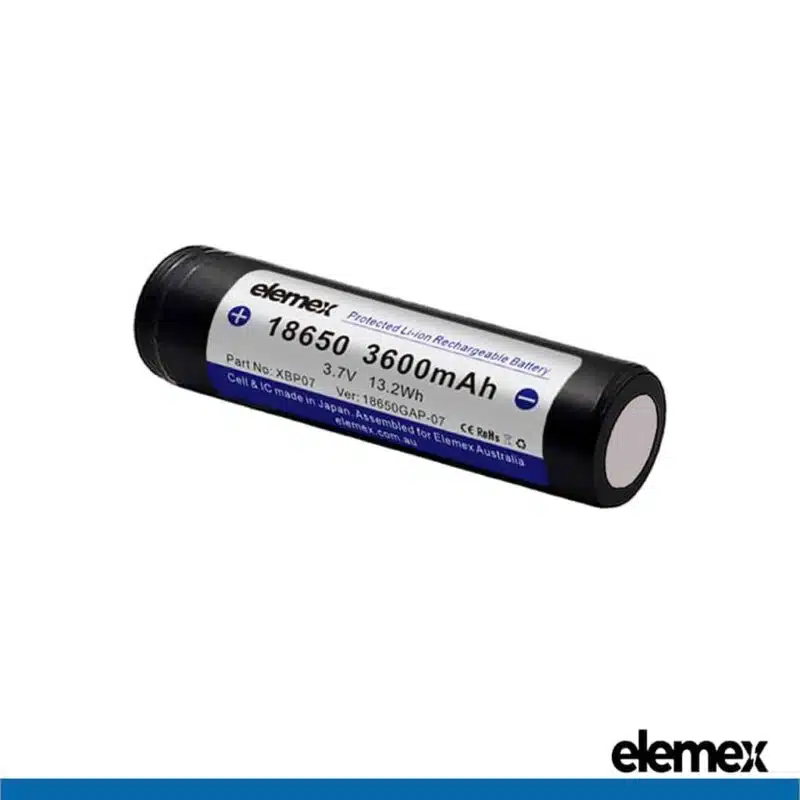

18650 Protected Battery 3600mAh Elemex Panasonic Li-ion 3.7V (Genuine)

18650 Protected Battery – Button Top + Free Battery Carry Case

Panasonic 18650 3600mAh Cell + Premium Embedded PCB√ Cell & IC Made in Japan

SEIKO(Japan) premium 3x MOS-FET PCB (Protection Circuit Board) embedded for maximum safety and durability against any unwanted Overcharge and discharge or short circuit. PCB can also protect the battery against reverse polarity damages

NCR 18650 GAP 3600mAh Panasonic Li-ion Lithium PROTECTED Button Top 3.7V Battery
NCR 18650 Protected Battery GAP 3600mAh Panasonic Li-ion Lithium Button Top 3.7V

18650 Battery is available in THREE following models/sizes:

Flat Top (65mm~ Long) | Button Top (67mm~ Long) | PROTECTED Button Top (70mm~ Long)

18650 Variations - Flat Top vs Button Top vs Protected version

Three Types of 18650 Batteries

Please carefully measure your device’s battery compartment and choose the correct version. (e.g., Most Doorbells and Solar Cameras ONLY work with Button Top 67mm~ version). Another factor that needs to be considered is an 18650 Battery Discharge Rate, as some devices (e.g., Power Tools) require High Discharge or High Drain batteries to supply a high amperage in a shorter time on demand.

Note: Unlike a number of generic products in the market claiming unrealistic high capacities, we ONLY supply GENUINE and fresh batteries. Each cell is tested before dispatch.

NCR18650GA Test Result
NCR 18650 Protected Battery GAP Elemex – Discharge Test Table

Product Features:

  • Capacity (Ah): 3.6 Ah Max (3620 mAh) Min (3520 mAh)
  • Nominal Voltage (V): 3.6 ~ 3.7 V
  • Charging Voltage (V): 4.2 V
  • Charging Current (Ah): 1.47 Ah (1470 mAh)
  • Cut-off Voltage (V): 2.5 V
  • Energy (Wh): 13.2 Wh
  • Energy Density (Wh/L): 745 Wh/L
  • Discharge rate (C): C Rating 2.5C (Recommended Max current 10 Amp)
  • Pulse current (Ah): (5-6 sec.): 15 Ah
  • Weight (g): 48 g (+/- 0.5 g)
  • Diameter (mm): 18.3 mm (+/- 0.3 mm
  • Height (mm): 70.0 mm (+/- 0.5 mm)
  • Protected: YES (Seiko MOS-FET) PCB
  • Top (positive side): Button Top
  • Model: Elemex 18650 GAP (NCR18650GA Cell) new version-higher capacity
  • Assembled for Elemex Pty Ltd Australia (Cell & PCB MOS-FET Made in Japan)

Package Includes:

  • Genuine Elemex (Panasonic) NCR 18650 GAP 3600mAh Protected Button Top Battery [please select the quantity]
  • Battery Carry Case

Warning:

  • Never fully discharge a Li-ion battery (below 2.5V under load).
  • Charge fully to 4.2V before first use.
  • Never use force to install (insert) a Li-ion battery.
  • Do not use old and new battery cells together.
  • Use only a high-quality battery charger.
  • Do not remove the heat shrink/wrapping cover (it must be used as it is).
  • Do not expose to heat, NOT penetrate or modify.
  • Do not short (connect) positive (top) and negative (bottom) battery terminals (contacts).
  • Keep a battery, not in use in a plastic holder (or any insulating [plastic] container).
  • Never charge the battery over 4.25V (another reason to use a high-quality battery charger).
  • Do not charge unattended nor overcharge unprotected cells.

Additional information

Weight 500 g
Dimensions 25 × 20 × 5 cm
Brand: No selection

,

Color: No selection

Black

MPN: No selection

NCR18650GAP

Battery Voltage: No selection

Battery Capacity: No selection

Battery Type: No selection
